Mounting/installation, Ann-rly board layout and connection to facp – System Sensor PDRP-2001 User Manual
Page 46
46
PDRP-2001 Series Manual — P/N 53043:E1 2/28/2011
Installation
ANN-BUS Devices
Mounting/Installation
The ANN-RLY relay module can be mounted inside the FACP main circuit board chassis. An
optional ANN-MBRLY mounting bracket allows mounting of the ANN-RLY in the lower right
hand corner of the FACP cabinet instead of or in conjunction with the mounting provisions under
the main FACP circuit board chassis. Refer to the documentation supplied with the module for
information on installation.
ANN-RLY Board Layout and Connection to FACP
Figure 2.23 illustrates the ANN-RLY board showing locations of screw terminals for connection to
the FACP and the DIP switches for selecting the ANN-BUS ID number.

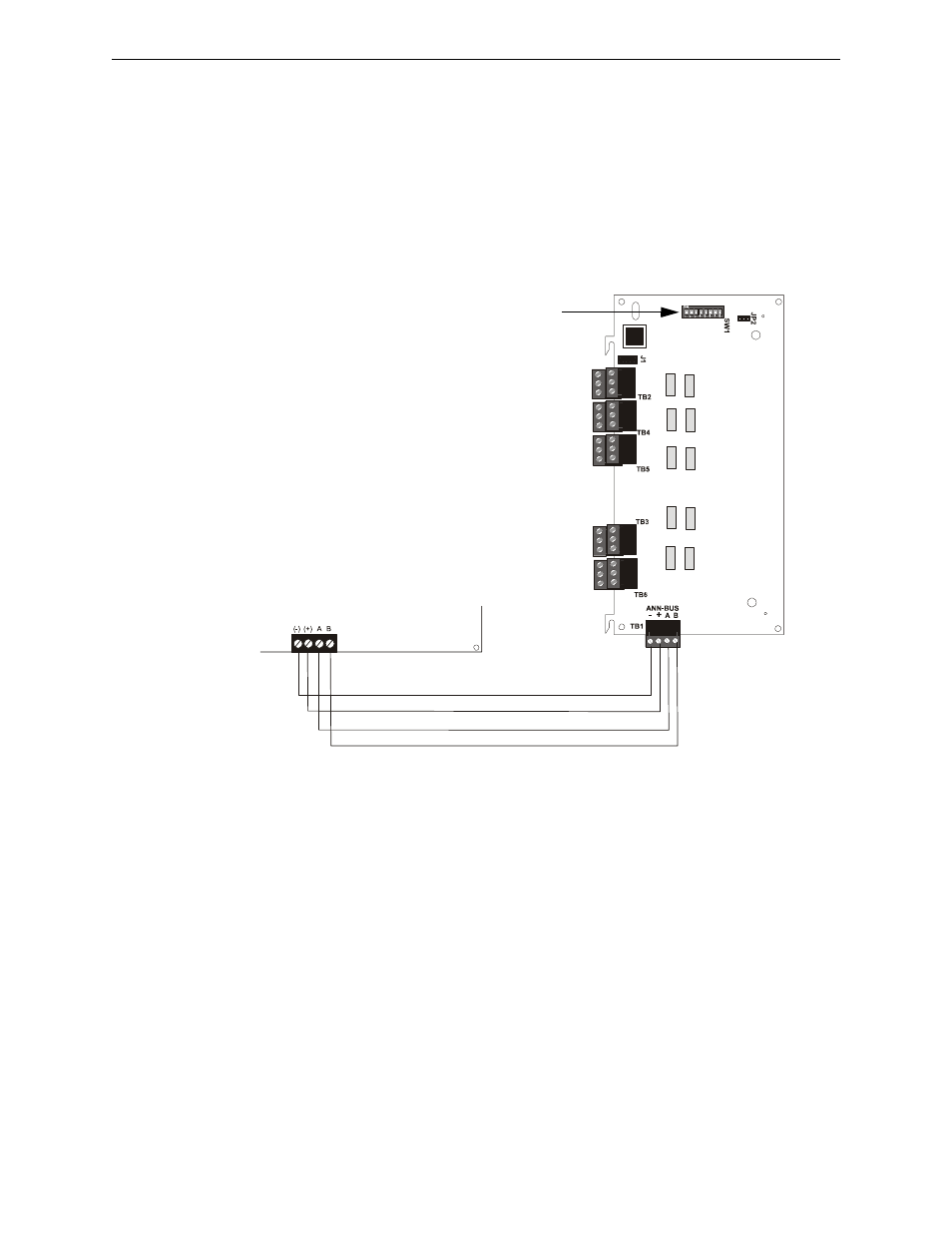

Figure 2.24 ANN-RLY Board Layout and Connection to FACP
FACP
ANN-RLY
Primary ANN-BUS
+24 VDC
-24 VDC
ANN-BUS (ID#)
Address DIP switch
