SX10A: Parts Breakdown & Operating Manual rev. 04/29/06

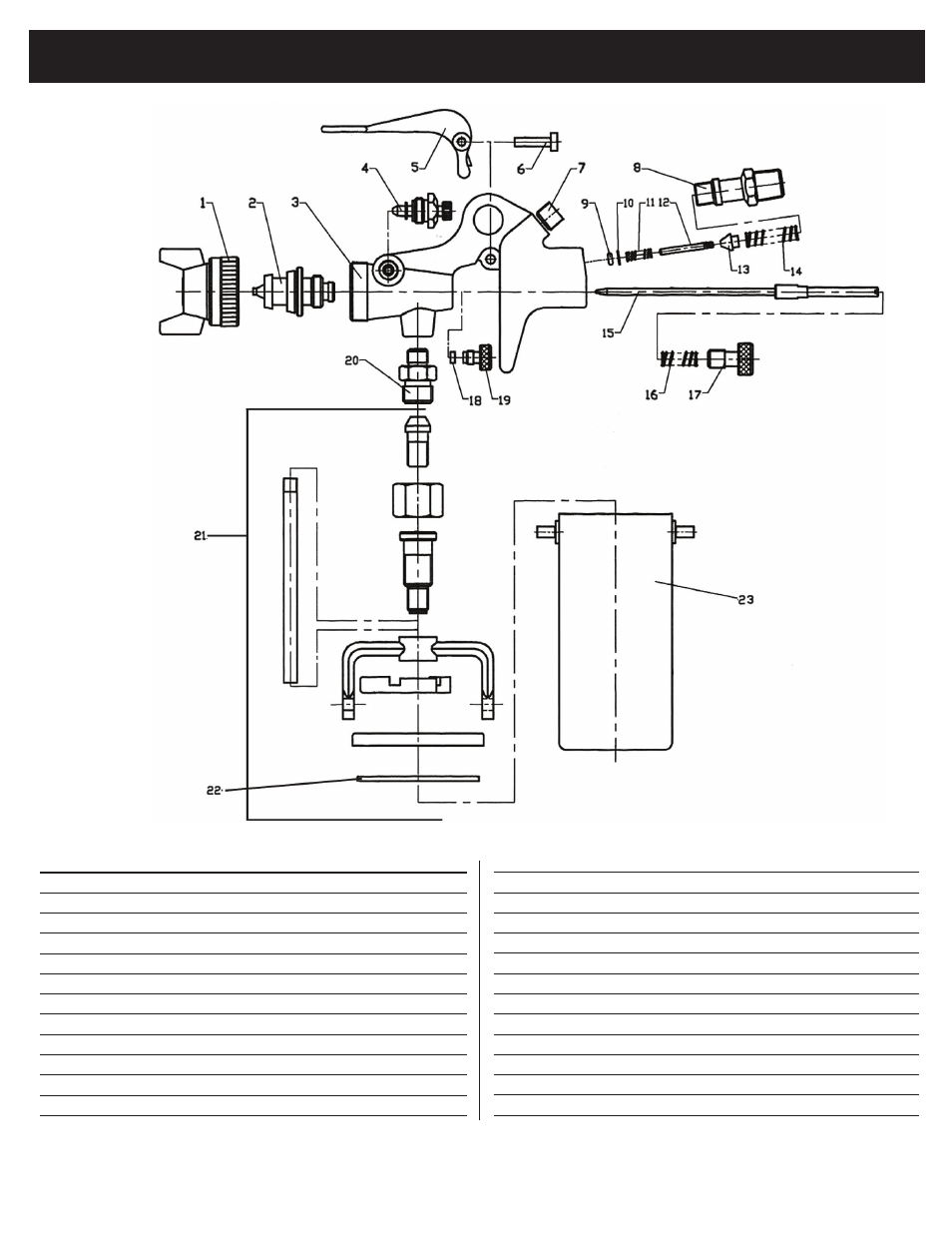

SX10A PARTS BREAkDOWN & PARTS LIST
ITEM NO. PART NO. DESCRIPTION
1 RS10A01 Air Cap
2 RS10A02 Nozzle
3 Gun Body
4 RS10A04 Fan Adjusting Valve Set
5 RS10A05 Trigger
6 RS10A06 Trigger Bolt
7 RS10A07 Bolt
8 RS10A08 Air Joint Screw
9 * O-Ring
10 * Gask­et
11 * Valve Pole Spring
12 * Air Valve Spring
ITEM NO. PART NO. DESCRIPTION
13 * Air Valve Core
14 * Valve Core Spring
15 RS10A15 Needle
16 * Needle Spring
17 RS10A17 Fluid Adjusting Screw
18 * Needle Pack­ing Gask­et
19 RS10A19 Needle Pack­ing Nut
20 RS10A20 Fluid Screw
21 RS10A21 Lid Assembly
22 RS10A22 Paint Cup Gask­et
23 RS10A23 Paint Cup
Only items identified by part numbers are available separately. Items mark­ed with an asterisk­ (
*
) are available only in the repair k­it, RS10RK.
