8. Output Voltage
This power supply is able to be used in a parallel operation, and the output voltage fluctuates
within the range of 24V
± 10% even in a normal operation.
The voltage is set to around 25.8V at no duty. This voltage fluctuation does not influence the
operation of IAI 24V controller at all.

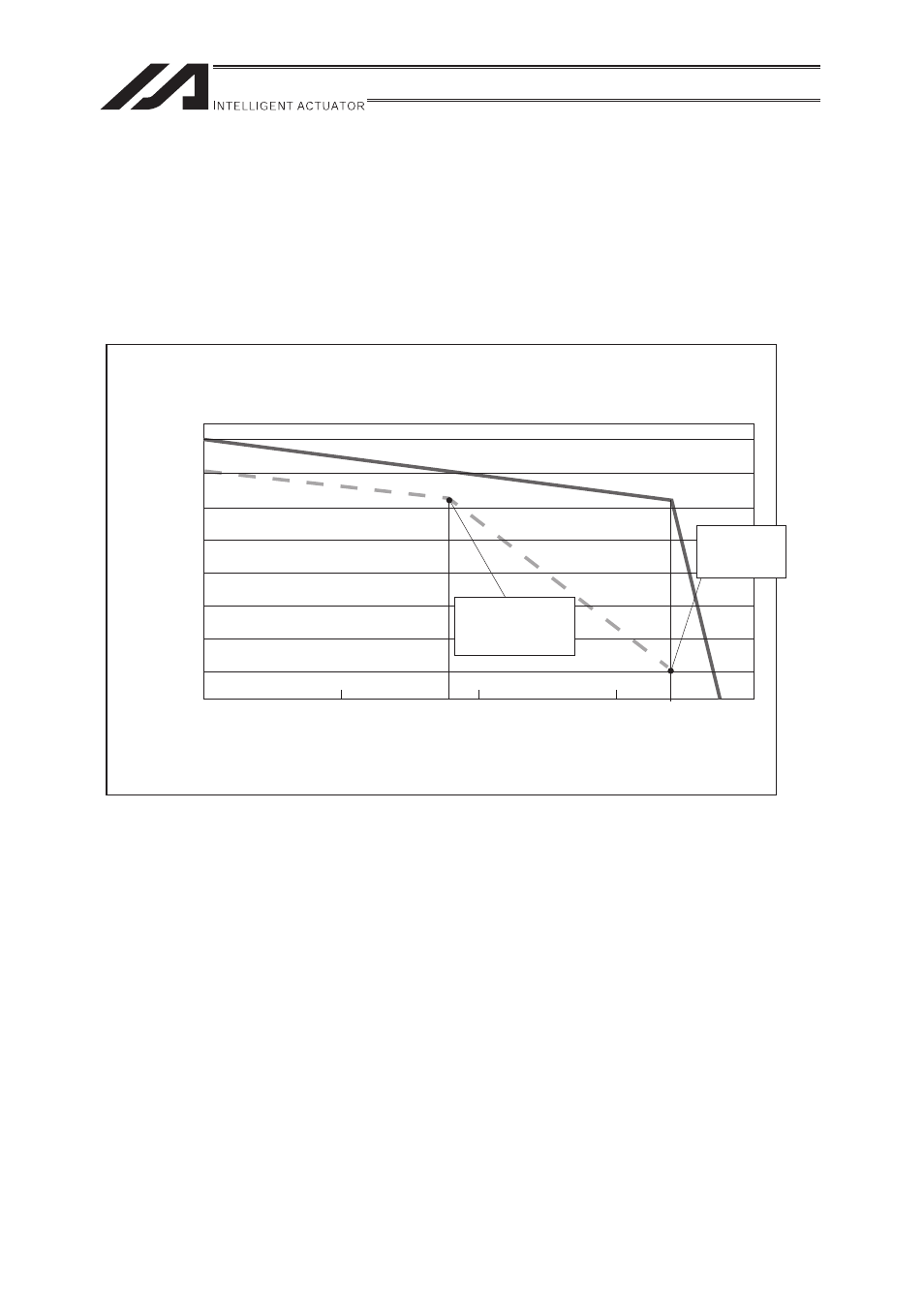

This power supply changes the voltage within the area between the solid line and the broken
line below in response to the load.
Output V
oltage [V]
26.000
24.000
22.000
20.000
18.00
16.00
14.00
12.00
10.00
0 5 10 15 20
Output Current [A]
Over load detection
approx. 8.7A
(22.42V)
Over current
detection
17.2A
Output Voltage Fluctuation in accordance with Duty
