9

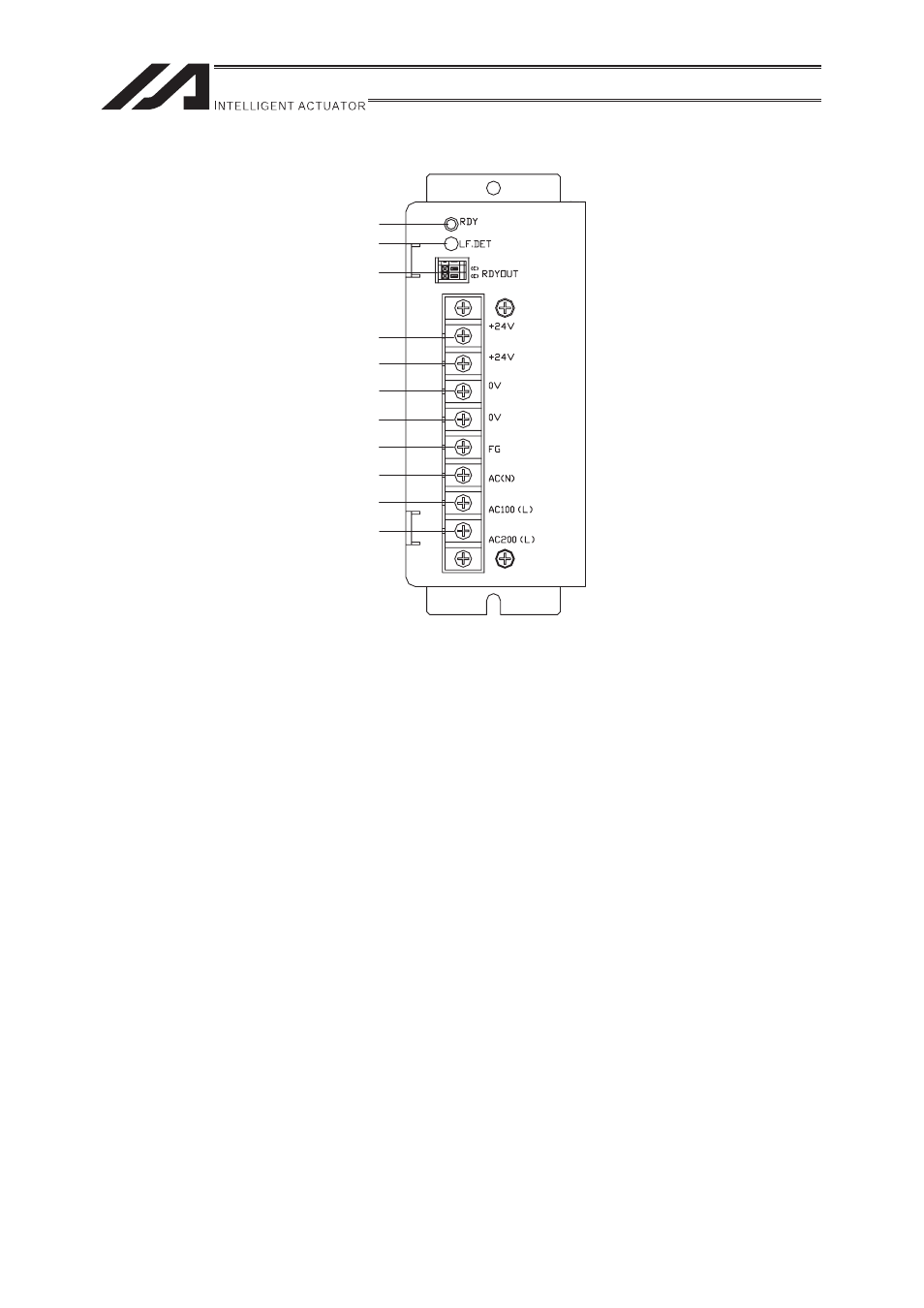

1. Name and Function of Each Part
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
1) RDY display
It is illuminated in normal operation.
[Refer to "2. RDY Display and RDY Output Signal".]
2) Variable dial to set over load detection level
For manufacturer’s use only. Do not remove the seal.
3) RDY output signal
It turns ON (electrically conducted) in normal operation.
[Refer to "2. RDY Display and RDY Output Signal".]
4) 5)
+24V output terminal
* 4) and 5) are connected internally.
6) 7) 0V output terminal
* 6) and 7) are connected internally.
8) Frame ground terminal
It is the ground terminal that is connected to the power supply main housing.
9) AC input terminal
Input terminal common for 100V AC and 200V AC types.
