Harrington Hoists and Cranes TCR Large Cap - (10-25 Ton) User Manual
Page 8
8
2.0 Technical Information
2.1 Specifications

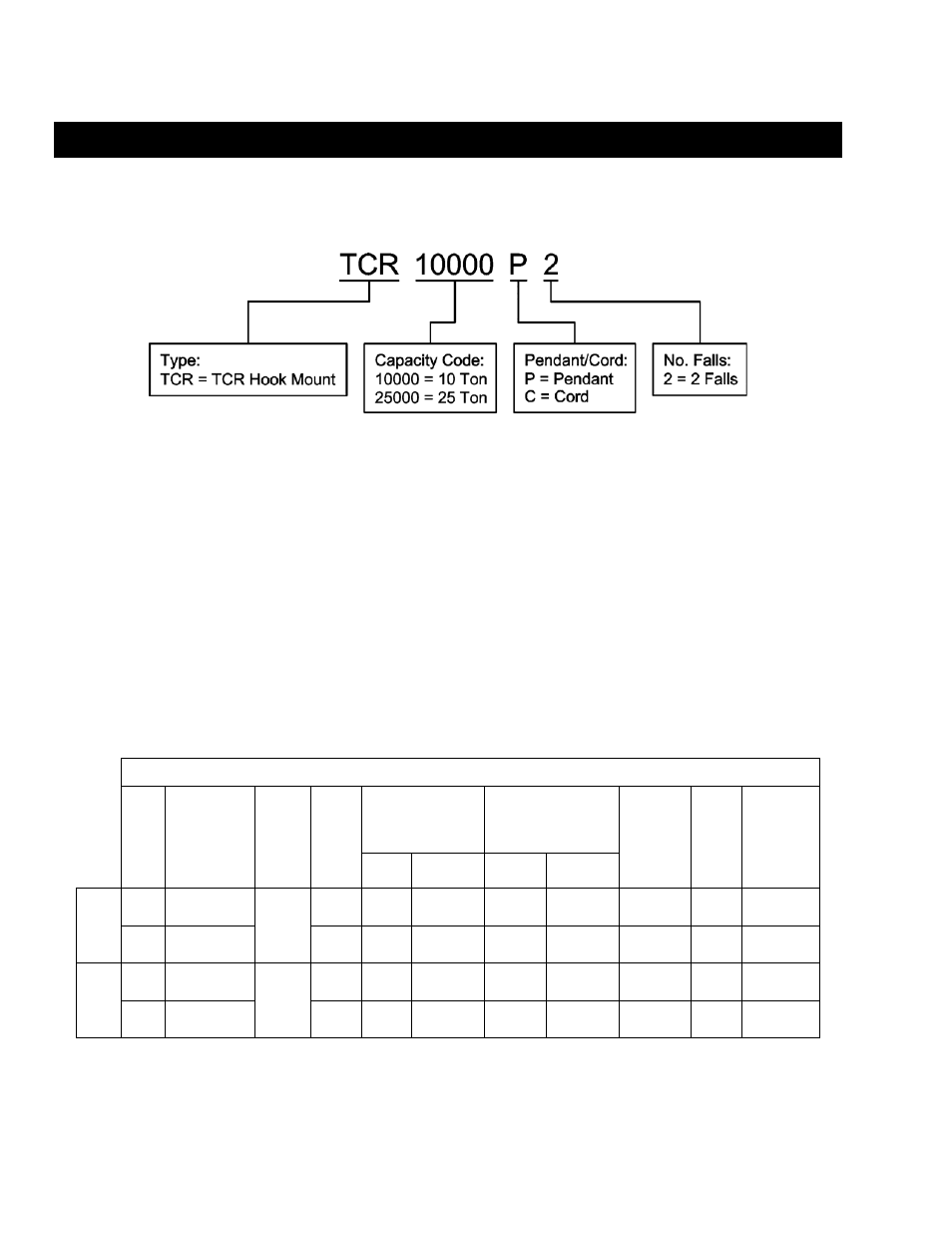

2.1.1 Product
Code
2.1.2
Operating Conditions and Environment
Temperature range: +14° to +140°F (-10° to +60°C)
Relative Humidity: 85% or less
Supply Air: 60 to 90 pounds per square inch
Air Consumption: 170 to 220 cubic feet minute
Air Lubrication Requirements: Minimum 10 to 15 drops per minute (2-3 cc/min) of oil
Air Filtration Requirements: Maximum 5 micron air filter or finer
Load Limiter: Adjustable; Factory set to 125% of rated capacity
Table 2-1
Hoist Specifications
Up/Down Speeds
(ft/min @ 90 psi)
Up/Down
Air Consumption Rates
(cubic ft/min @ 90 psi)
Cap.
(Tons)
Product
Code
Standard
Lift
(ft)
Push
Button
Hose
L
(ft)
No Load
w/Full Load
No Load
w/Full Load
Load Chain
Diameter
(mm)
x
Chain Fall
Lines
Net
Weight
(lbs)
Weight for
Additional
One Foot
of Lift
(lbs)
10 TCR10000P2
8.8 7.2/5.9 5.1/7.6 220/180
180/210
16 x 2
476
3.8
Pendant
Model
25 TCR25000P2
10
9.4
2.1/1.6
1.8/2.2
210/190
170/200
22 x 2
1082
7.0
10 TCR10000C2
8.1 7.2/5.9 5.1/7.6 220/180
180/210
16 x 2
465
3.8
Cor
d
Model
25 TCR25000C2
10
8.7
2.1/1.6
1.8/2.2
210/190
170/200
22 x 2
1074
7.0
