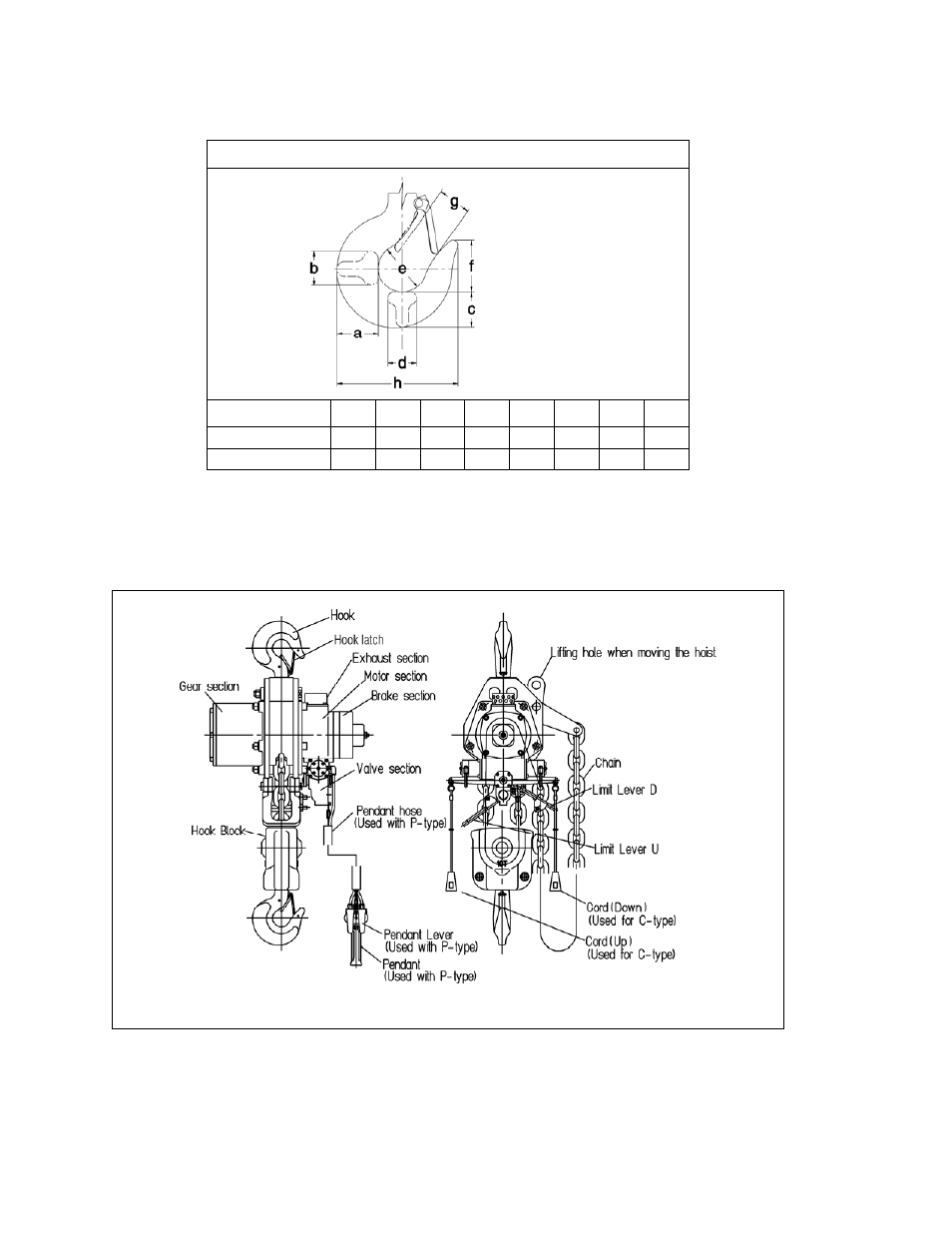

Table 2-4 Top and Bottom Hook Dimension*
Units = inch
Product Code a b c d e f g h
TCR10000C/P2 2.8 2.4 2.4 2.2 2.4 2.6 1.6 7.1
TCR25000C/P2 4.9 3.5 3.9 3.5 4.9 4.9 3.1 13.1
*Refer to Section 5.7 for inspection dimensions and limits.
2.3 Part Names
Figure 2-1 Hoist Part Identification Diagrams – 10 Ton TCR10000C2 and TCR10000P2
