34

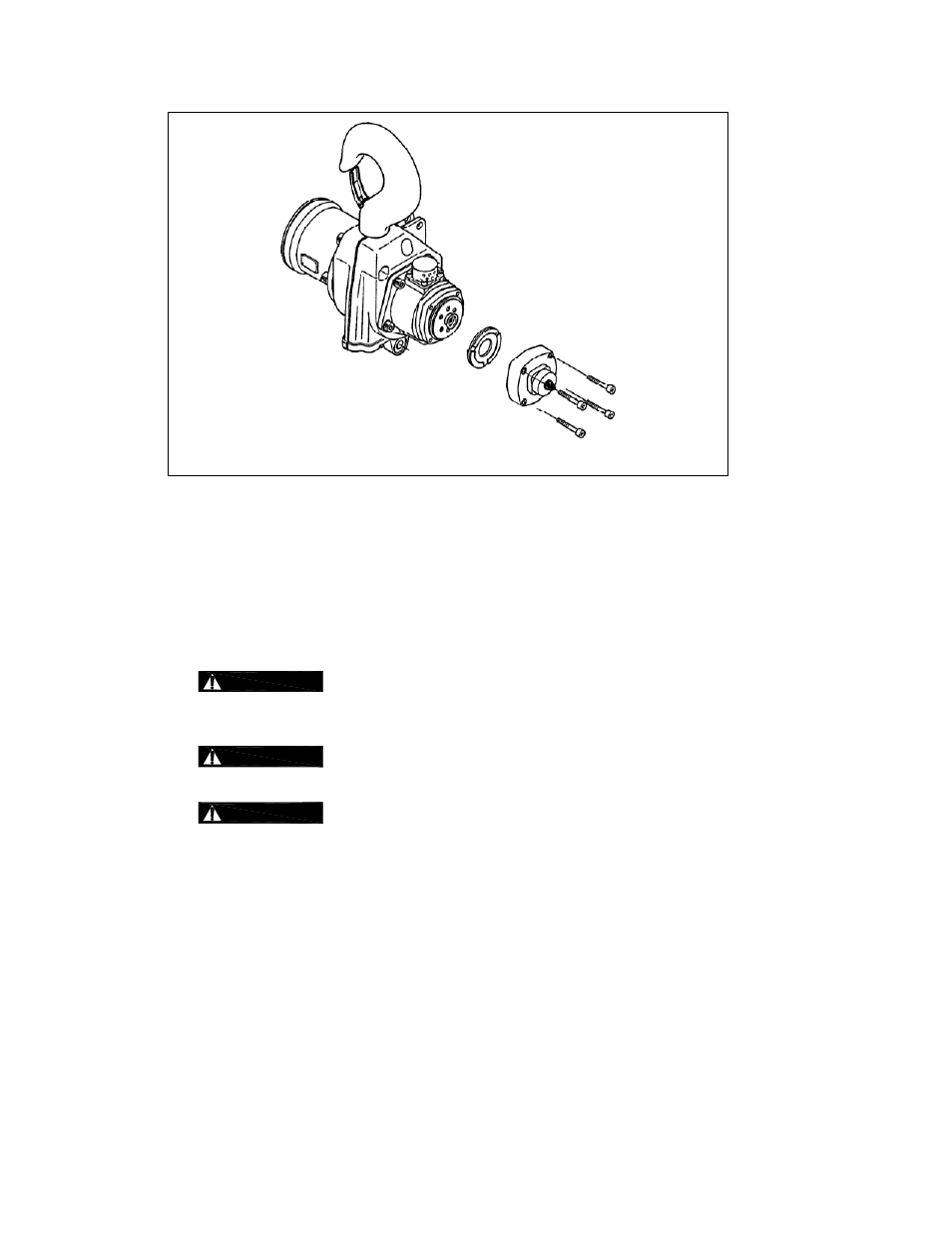

Figure 7-2 Brake Inspection Diagram
7.3 Load Chain
7.3.1 Lubrication and Cleaning
„ Clean the chain with an acid-free cleaning solution. The load chain should be kept clean and
lubricated.
„ Lubrication - Clean and lubricate the load chain per Section 6 at least once every 3 months for
normal usage. Clean and lubricate more frequently for heavier usage or severe conditions.
7.3.2 Replacement
1)
CAUTION
An air supply line must be connected to the hoist in order to perform the
following procedures. The hoist must accessible and must be hanging from the top hook
assembly.
2)
WARNING
Be certain that the replacement chain is obtained from Harrington and is the
exact size, grade and construction as the original chain.
3)
CAUTION
When replacing load chain, check for wear on mating parts, i.e. Load Sheave,
Chain Guides and Idle Sheave, and replace parts if necessary. Remove old chain. Remove hook
set assemblies, limit locks, stoppers and end connections from the chain for reuse on new chain. If
the load chain is being replaced due to damage or wear out, prevent its reuse by destroying the old
chain.
4)
Remove the existing Load Chain – Lower the bottom hook assembly until it rests on the ground or
is supported by some other means. Disconnect the no-load and load end of the load chain from
the hoist. Run the hoist in the down direction to remove the chain form the hoist body.
5) Run the hoist in the up or down direction until the load sheave is positioned as shown in Figure 7-3.
6)
Without operating the hoist, tie a wire to the end of the new load chain, then thread the wire
through the hoist over the load sheave. Pull the wire so that the load chain enters the hoist
making certain that the first link is a standing link and that its weld is facing away from the
centerline of the hoist.
