14
3.6.2
NOTICE
Piping - Pipe should be sized to accommodate the hoist airflow requirements.
Table 3-1 gives recommended pipe sizes.
Table 3-1 Air Supply Pipe and Hose Sizes
Model
Diameter of Supply
Pipe
Diameter of Supply
Hose
TCR10000P2
TCR25000C2
TCR10000P2
TCR25000C2
Inside diameter
1.25 inch or larger
Inside diameter
1.0 inch or larger
3.6.3
NOTICE
Hoses - The connection from the air supply system piping to the hoist must be
made with a flexible pressure hose. Due to normal line losses in air supply lines:
„ Do not use hose smaller than specified in Table 3-1 , and
„ Limit the length of the hose to that specified in Figure 3-3 .
If your application exceeds these requirements consult factory.

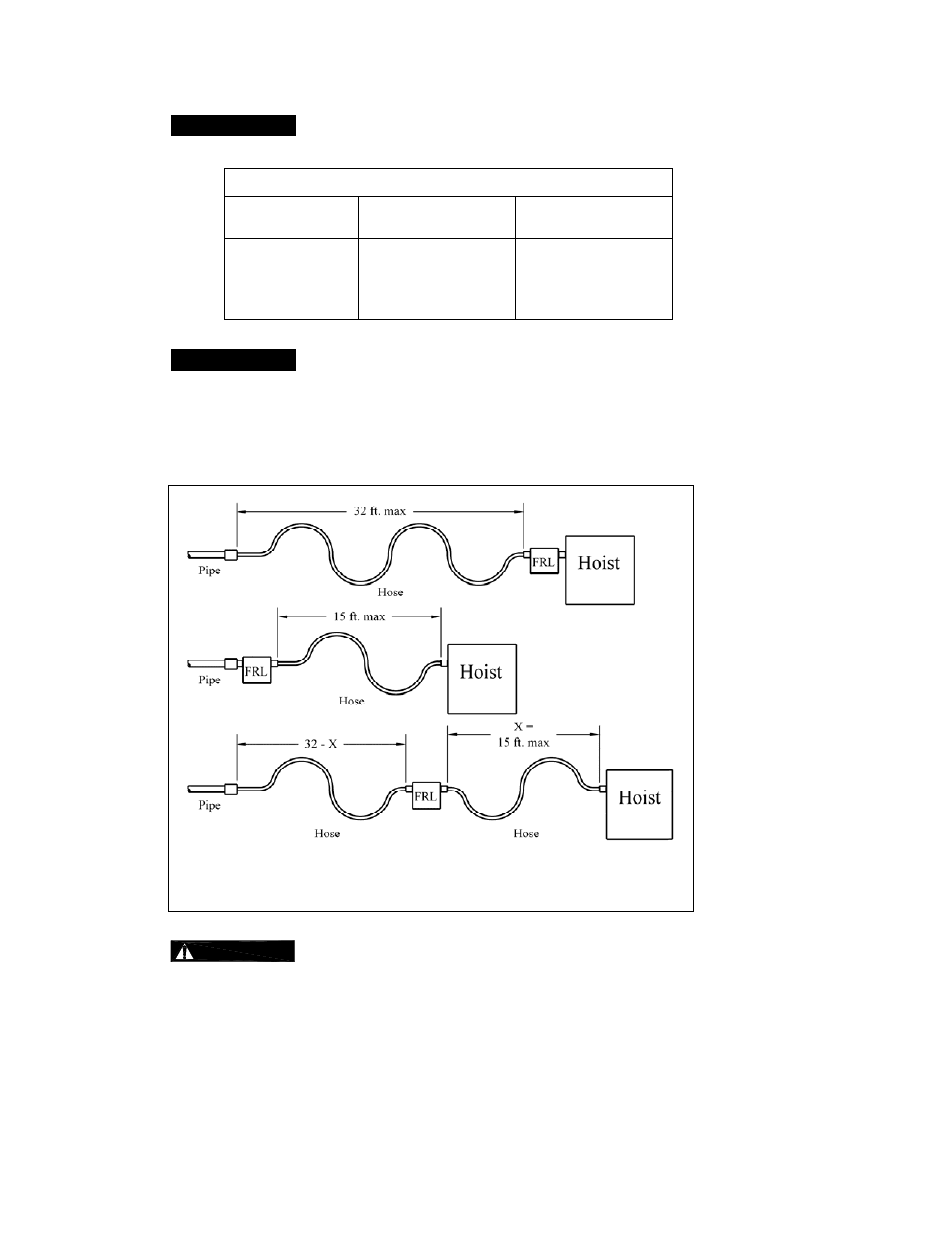

Figure 3-3 Typical Arrangements of Filter, Regulator and Lubricator and
Maximum Air Supply Hose Lengths
3.6.4
CAUTION
Fittings - Important considerations regarding fittings in the hoist's air supply
include:
„ When connecting air supply components, remove all dirt or debris from the connecting surfaces of
the hoses, pipes, fittings, or threaded fasteners to prevent contaminants from entering the hoist.
„ Keep airflow restrictions such as quick disconnect fittings, bends, elbows, and adapters to a
minimum.
