9.5 Optional Chain Containers

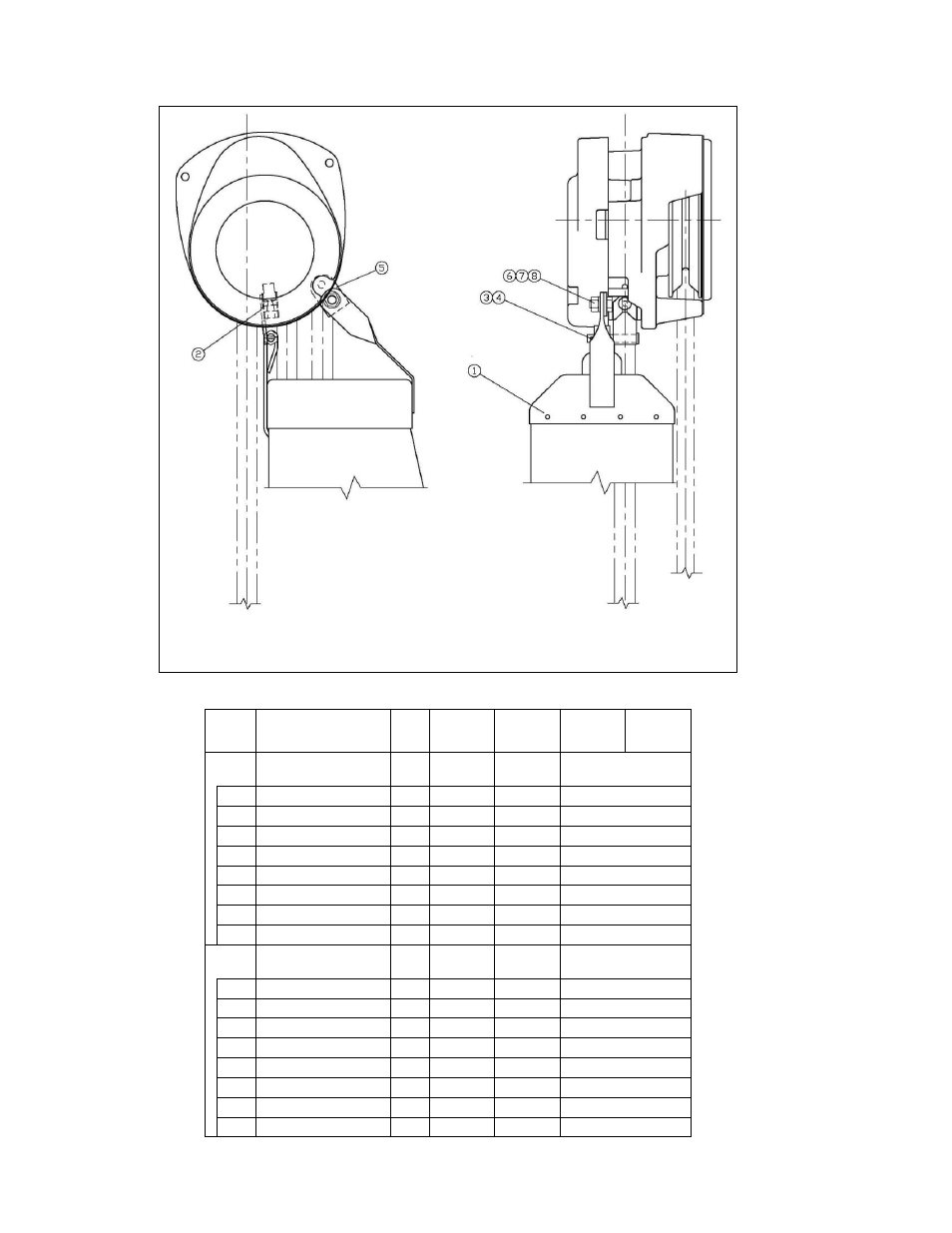

Figure 9-5 CF4 Optional Chain Container
NTH OPTIONAL “05” & “10” CHAIN CONTAINERS
Fig. No. Name
Parts
Per
Hoist
1 Ton 2 Ton 3 Ton 5 Ton
“05” Chain Container
(BKC1) Assembly
1 60713 60713 60715
1 Chain Container 1 50810 50810 50810
2 Modified Stripper Ass’y 1 5076004 5076004 5080404
3 Split Pin 1 9009412 9009412 9009412
4 Washer, 1/4 1 9005205 9005205 9005205
5 Link 1 5076005 5076005 5076005
6 Washer, M8 2 9012513 9012513 9012513
7 Hex Head Bolt 1 9093328 9093328 9093328
8 Lock-Nut 1 9098506 9098506 9098506
“10” Chain Container
(BKD1) Assembly
1 60714 60714 60716
1 Chain Container 1 5080403 5080403 5080403
2 Modified Stripper Ass’y 1 5076004 5076004 5080404
3 Split Pin 1 9009412 9009412 9009412
4 Washer, 1/4 1 9005205 9005205 9005205
5 Link 1 5076005 5076005 5076005
6 Washer, M8 2 9012513 9012513 9012513
7 Hex Head Bolt 1 9093328 9093328 9093328
8 Lock-Nut 1 9098506 9098506 9098506
