Harrington Hoists and Cranes (G)NTH Trolley - Manual (Page 47)

47
9.3 Trolley Parts

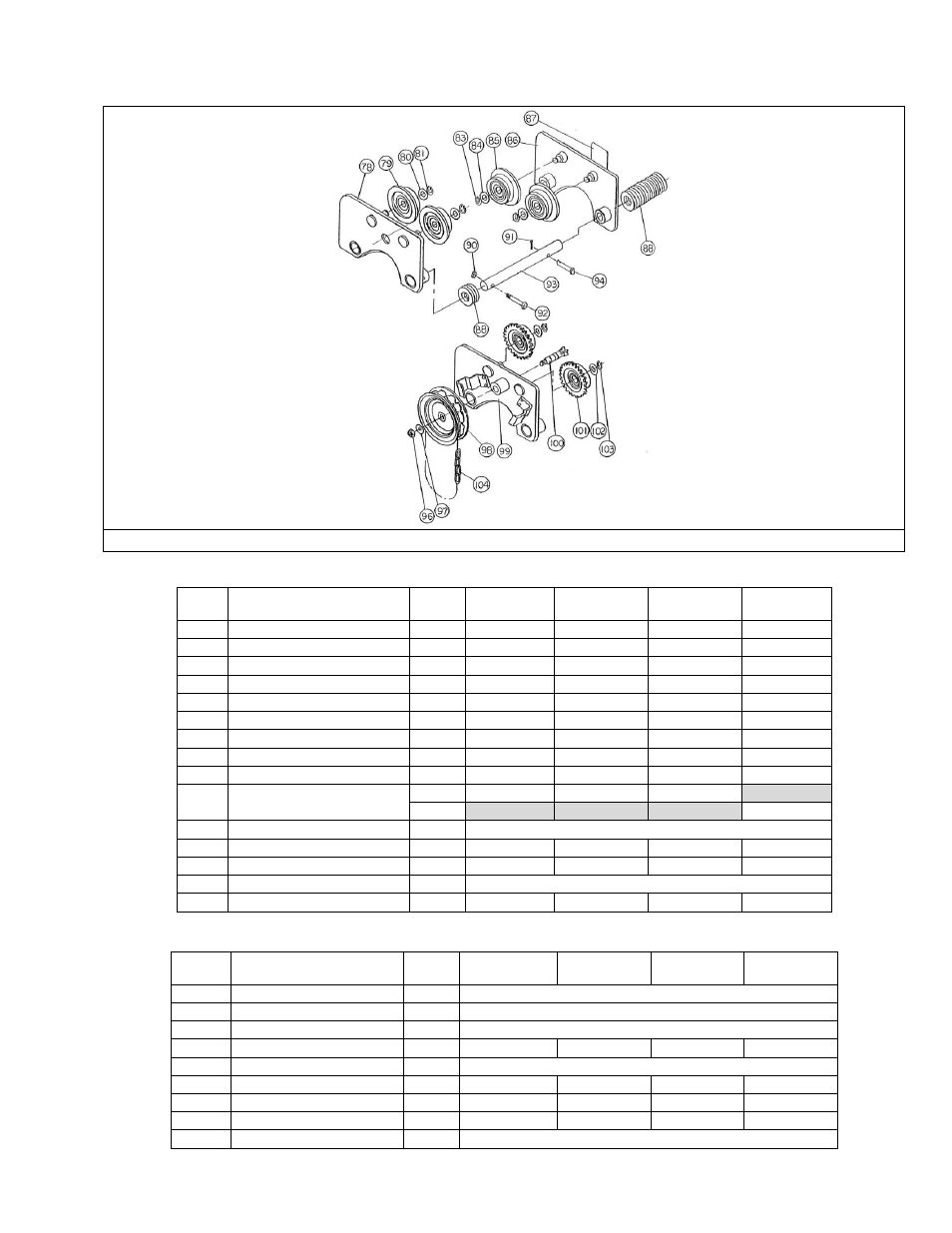

Figure 9-3 Trolley Parts
Push Trolley Parts
Fig.
No.
Name
Parts /
Hoist
1Ton 2 Ton 3 Ton 5 Ton
78 Side Plate A 1 50600 50619 50685 50722
79 Track Wheel S Assembly 2 T3P1102010 T3P1102020 T3P1102030 T3P1102050
80 Washer 4 MS104010 MS104020 MS104030 MS104050
81 Snap Ring 2 T3P106010 T3P106020 T3P106030 T3P106050
83 Snap Ring 2 T3P106010 T3P106020 T3P106030 T3P106050
84 Washer 4 MS104010 MS104020 MS104030 MS104050
85 Track Wheel S Assembly 2 T3P1102010 T3P1102020 T3P1102030 T3P1102050
86 Side Plate B 1 50601 50620 50676 50723
87 Nameplate 1 NTH800010 NTH800020 NTH800030 NTH800050
88 Adjusting Spacer
36 9005212 T3P116010 9005215
34 50736
90 Lock Nut 2 9098506
91 Split Pin 2 T3P157010 T3P157020 T3P157030 T3P157050
92 Bolt 2 9093102 9093104 9093354 9093129
93 Suspension Shaft 2 See Suspension Shaft Sizing Chart
94 Shaft Stopper Pin 2 T3P156010 T3P156020 T3P156030 T3P156050
Geared Trolley Parts
Fig.
No.
Name
Parts /
Hoist
1Ton 2 Ton 3 Ton 5 Ton
96 Nut 1 T3G259010
97 Washer 1 9012515
98 Hand Wheel 1 T3G123010
99 Side Plate G 1 50600G 50619G 50675 50721
100 Pinion 1 T3G121020
101 Track Wheel G Assembly 2 T3G1101010 T3G1101020 T3G1101030 T3G1101050
102 Washer 4 MS104010 MS104020 MS104030 MS104050
103 Snap Ring 4 T3P106010 T3P106020 T3P106030 T3P106050
104 Hand Chain ft. HCCF005
