Harrington Hoists and Cranes TNER Theater Hoist - Manual (Page 9)

2.2 Dimensions

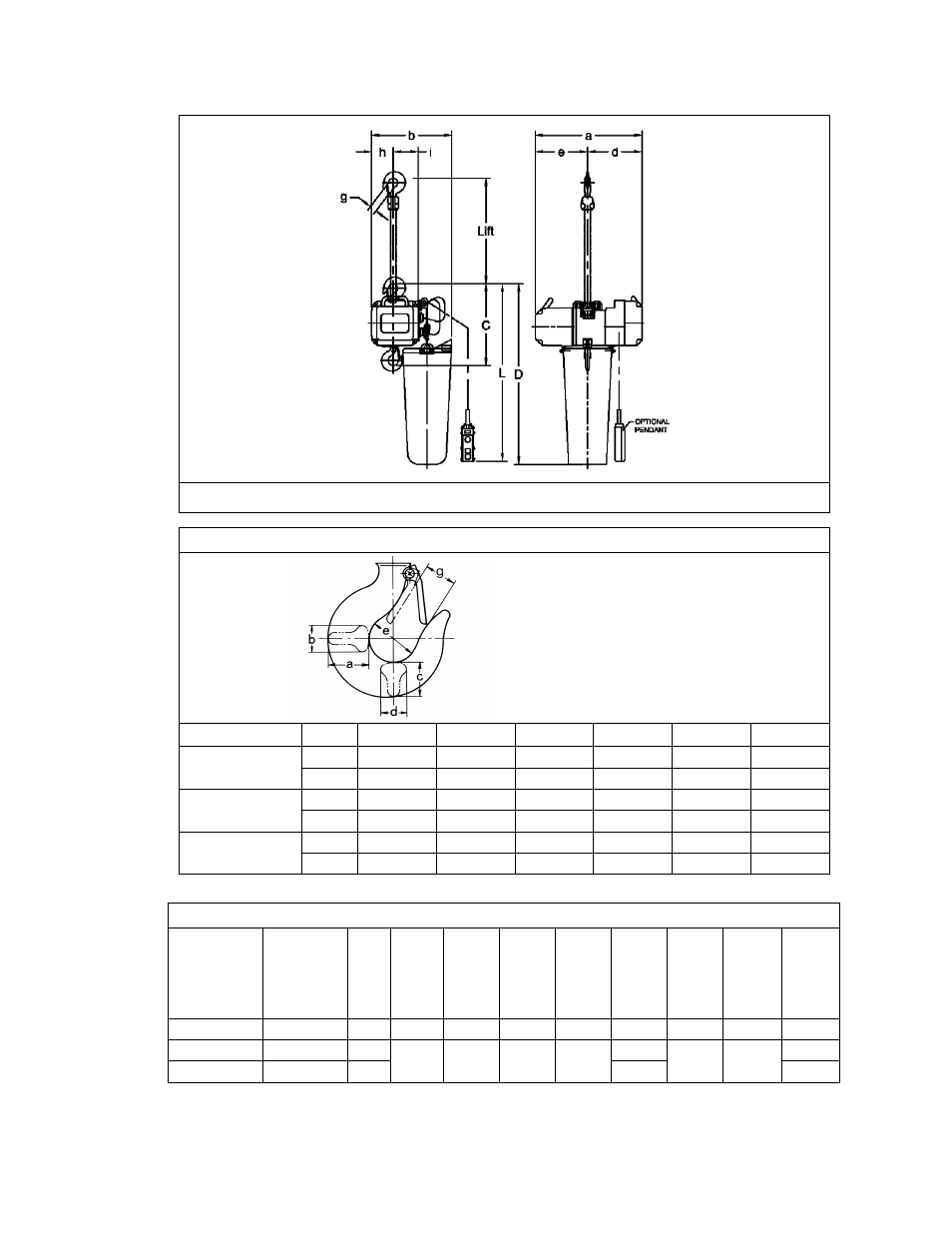

Figure 2-2 Hoist Dimensions (See Table 2-3)
Table 2-2 Hook Dimension*
C = Chain Hook
B = Body Hook
Units = inch
Capacity Code Hook a b c d e g
005L
C 1.1 0.7 0.9 0.7 1.4 0.9
B 1.0 0.6 0.9 0.6 1.7 1.1
010L
C 1.4 0.9 1.2 0.9 1.7 1.2
B 1.2 0.8 1.0 0.8 1.9 1.3
020L
C 1.9 1.1 1.6 1.1 2.0 1.5
B 1.6 1.0 1.3 1.0 2.1 1.6
*Refer to Section 5.7 for inspection dimensions and limits.
Table 2-3 Hoist Dimensions
Product
Code
Minimum
Headroom
C
(in)
L*
(ft)
a
(in)
b
(in)
d
(in)
e
(in)
g
(in)
h
(in)
i
(in)
D
(in)
TNER005L 13.2 2.5 18.7 14.2 9.6 9.2 0.9 3.9 4.0 35.4
TNER010L 16.1 2.5
20.0 15.0 10.2 9.8
1.2
4.1 4.7
37.0
TNER020L 22.8 2.5 1.6 48.8
* The hoist is supplied with 2.5 feet of power supply cable and 2.5 feet of pendant cord.
A pendant is optional.
