2.0 Technical Information
2.1
Specifications
2.1.1

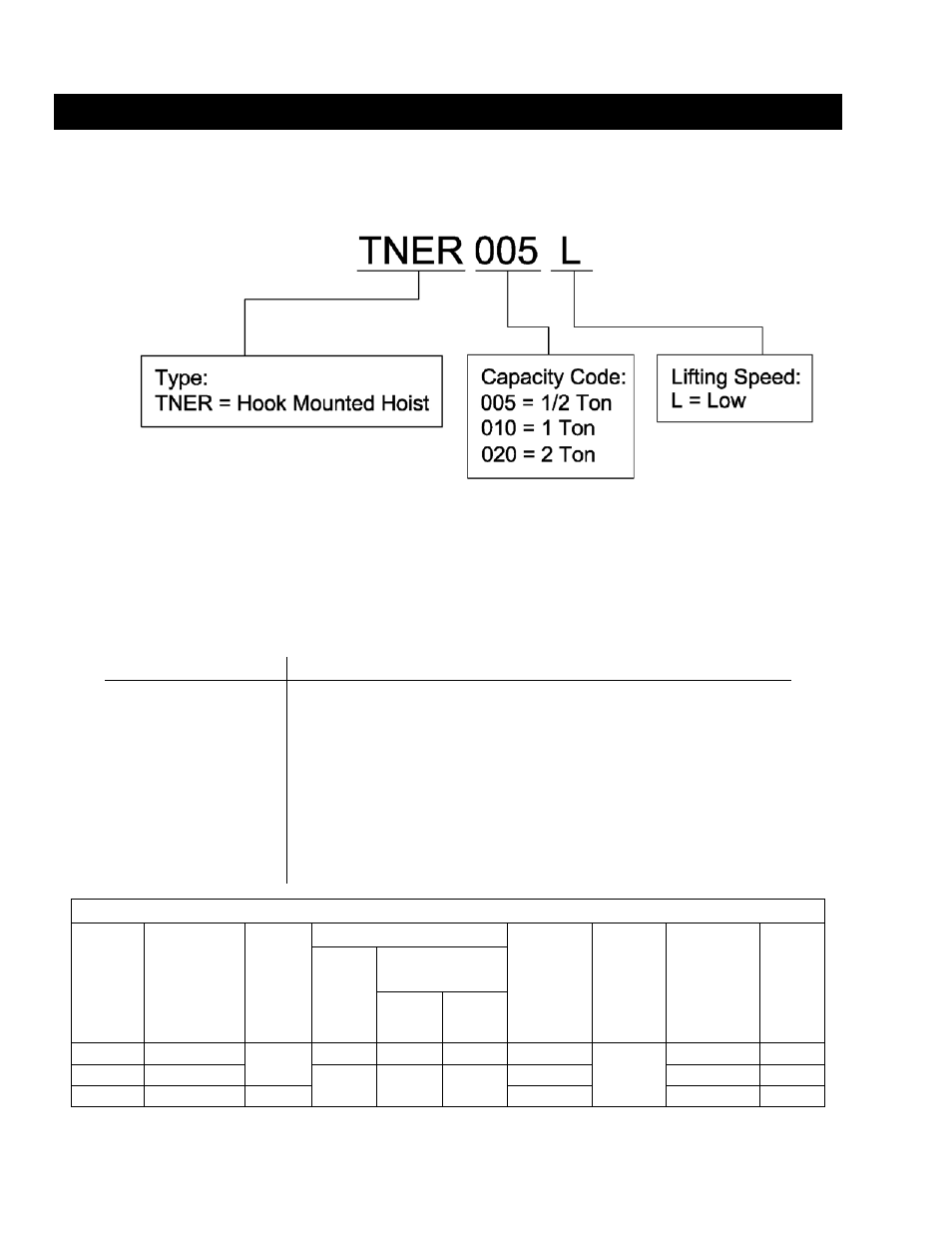

Product Code
2.1.2
Operating Conditions and Environment
Temperature range: -4° to +104°F (-20° to +40°C)
Humidity: 85% or less
Noise Level: 85 dB or less (A scale: measured 1 meter away from electric chain hoist)
Enclosure Rating: Hoist Meets IP55, Optional Pendant Meets NEMA 4X
Supply Voltage: Single Speed Standard: Reconnectable 208/230 & 460V-3-60
Single Speed
Hoist Duty Rating:
ISO M3; ASME H3
Intermittent Duty Rating:
25% ED
150 starts per hour
Short Time Duty Rating:
30 min.
Table 2-1 Hoist Specifications
Capacity
(Ton)
Product
Code
Lifting
Speed
(ft/min)
Motor
Load
Chain
Wire
Diameter
(mm) x
Chain Fall
Lines
Load
Sheave
Pockets
Net Weight
with 60 Feet
of Lift
(lbs)
Weight
for One
Addnl.
FT. of
Lift
(lbs)
Output
(Hp)
Current Draw
(amps)
208V or
230V
460V
1/2
TNER005L
16
0.65
4.2
2.1
6.3 x 1
4
99
0.57
1
TNER010L
1.3
7.1
3.6
8.0 x 1
135
0.93
2
TNER020L
8
8.0 x 2
209
1.9
8
