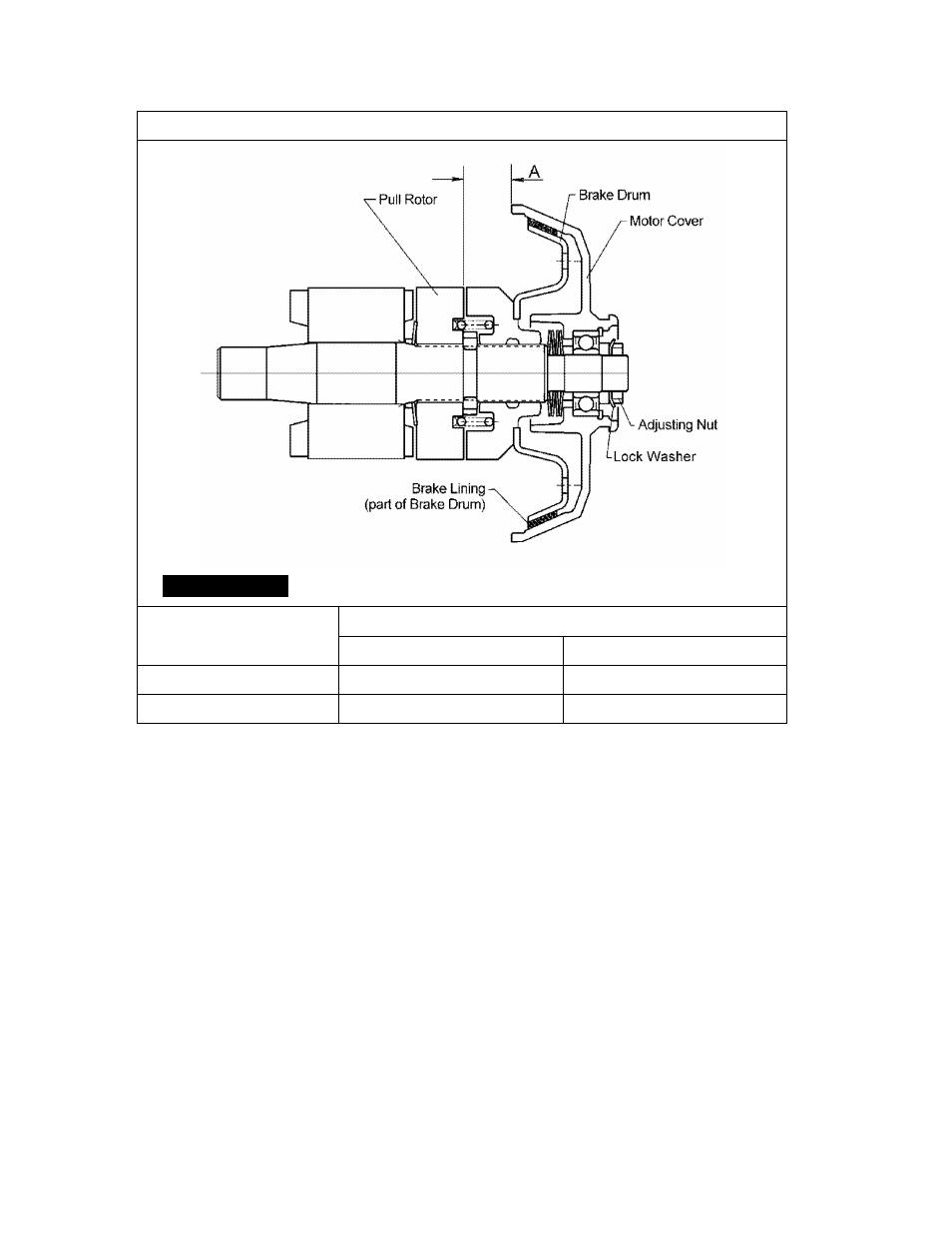

Table 5-6 Motor Brake Wear Dimensions



Brake must be properly adjusted before measuring "A". See Section 6.3

Capacity Code

"A" Dimension - inch (mm)

Standard

Discard

005L

0.67 (17)

0.61 (15.5)

010L, 020L

0.85 (21.5)

0.79 (20)

25
