45
Power Macintosh 8100, 8115, and Workgroup Server 8150 Installation
• HPV Card – The HPV (High Performance Video) card has a
single 15-pin monitor connector for a monitor and four
onboard Video RAM (VRAM) slots (Figure 10). If you have the
HPV card, continue with the instructions below.
Affix HPV Card to Video Adapter Board
1. Before attaching the HPV card to the video adapter board, you
need to bend the metal tab 90° at the end of the card with a small
flatblade screwdriver (Figure 11) so it fits in its new location.
15-pin monitor connector

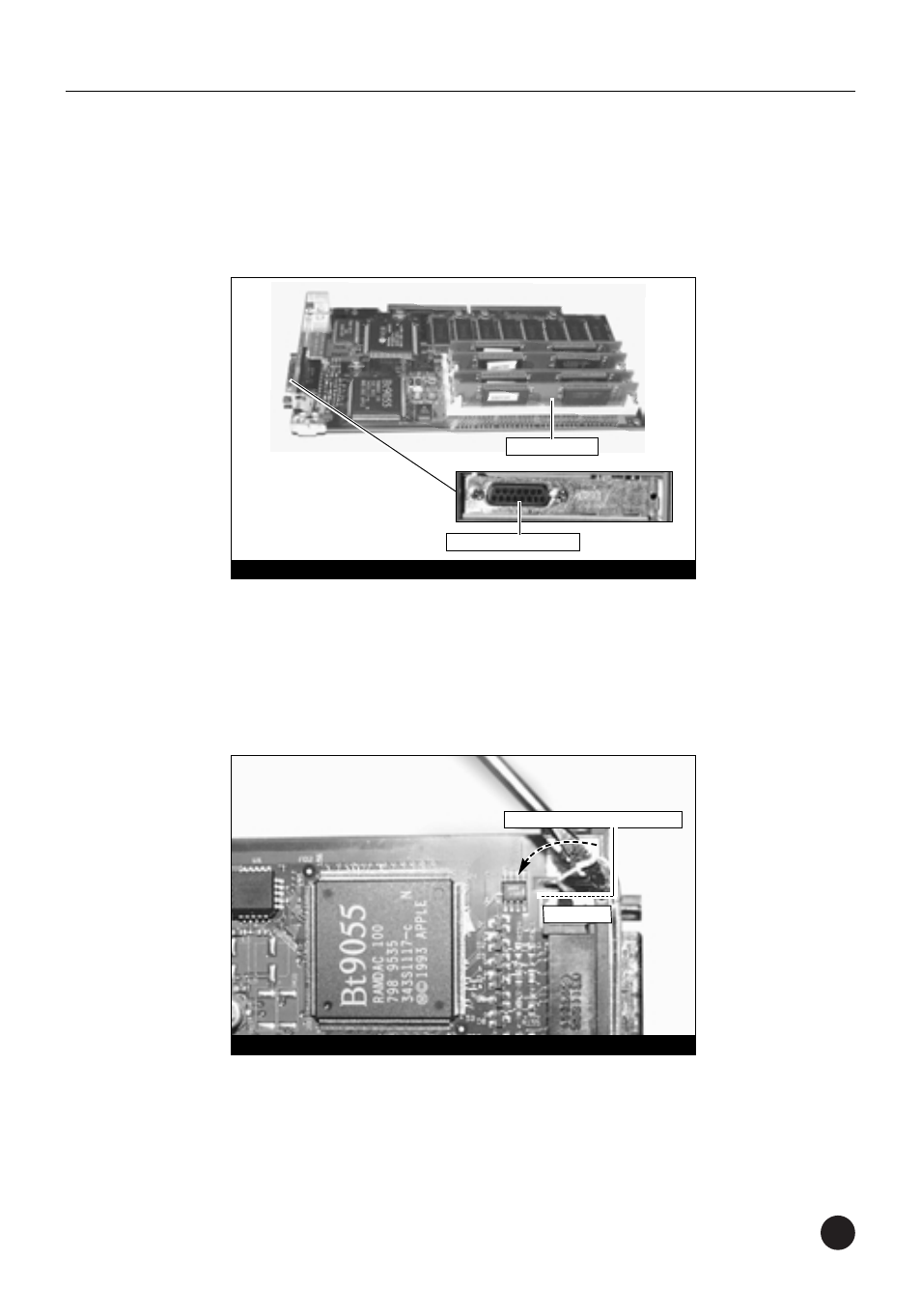

Figure 10: HPV card
Four VRAM slots
Figure 11: Bend back metal tab on HPV card
90°
angle
bend tab from original position here
to here
