44
Chapter 4
Temporarily Remove NuBus Cards from Computer
Locate the NuBus slots (Figure 8). If any NuBus cards are installed,
temporarily remove them so you have better clearance for installing the
video adapter board. If you have three NuBus cards in your computer, you
will only be able to reinstall two of them. The middle NuBus slot is
required by the adapter board.
Identify Your PDS-Based Video Card
Determine if you have an AV or HPV card as follows:
• AV Card – The AV card has a single 15-pin monitor connector
for a monitor and S-Video In and S-Video Out ports (Figure 9)
that support Audio/Video features. If you have an AV card,
continue with the instructions in the section entitled, “Affix the
AV Card to the Adapter Board” on page 47.

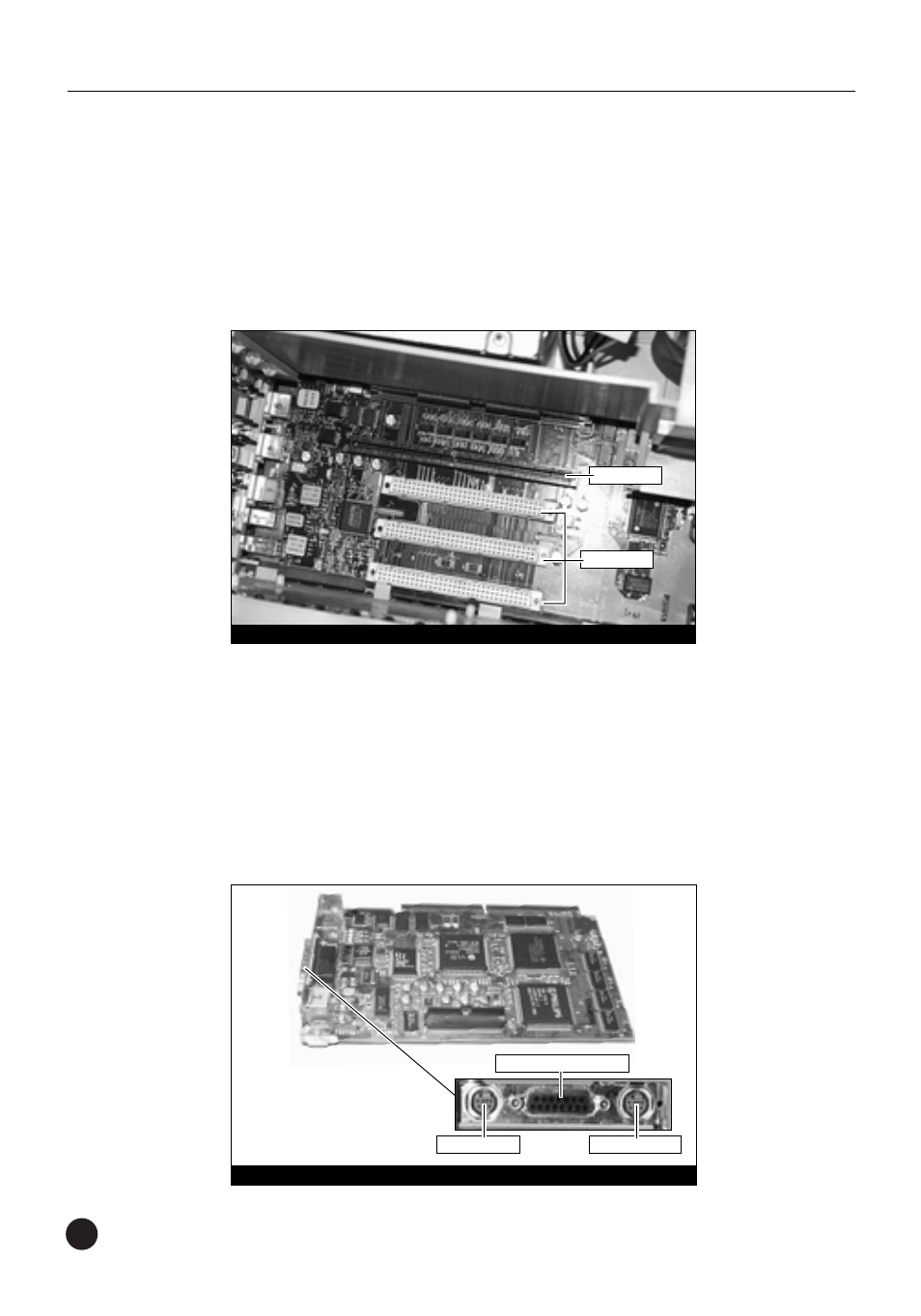

Figure 8: Location of NuBus slots
NuBus slots
PDS slot
S-Video In port S-Video Out port
15-pin monitor connector
Figure 9: AV card
