4
Chapter 1
Remove PDS Card
Locate the PDS slot (Figure 3) located next to the ROM card. If there is
a PDS card already installed (such as the 6100 DOS card), remove it.
Remove Level 2 Cache Card
If your computer contains a Level 2 cache card, remove it. If you are
uncertain about whether you have a Level 2 cache card, or where it
might be located, consult your computer’s documentation or see
Chapter 10, “Removing a Level 2 Cache Card.”
Install Crescendo NuBus Processor Upgrade Card
1. Remove the Crescendo card from the anti-static package, making
sure to handle the card by the edges (Figure 4). Your card may
differ from what is pictured below.

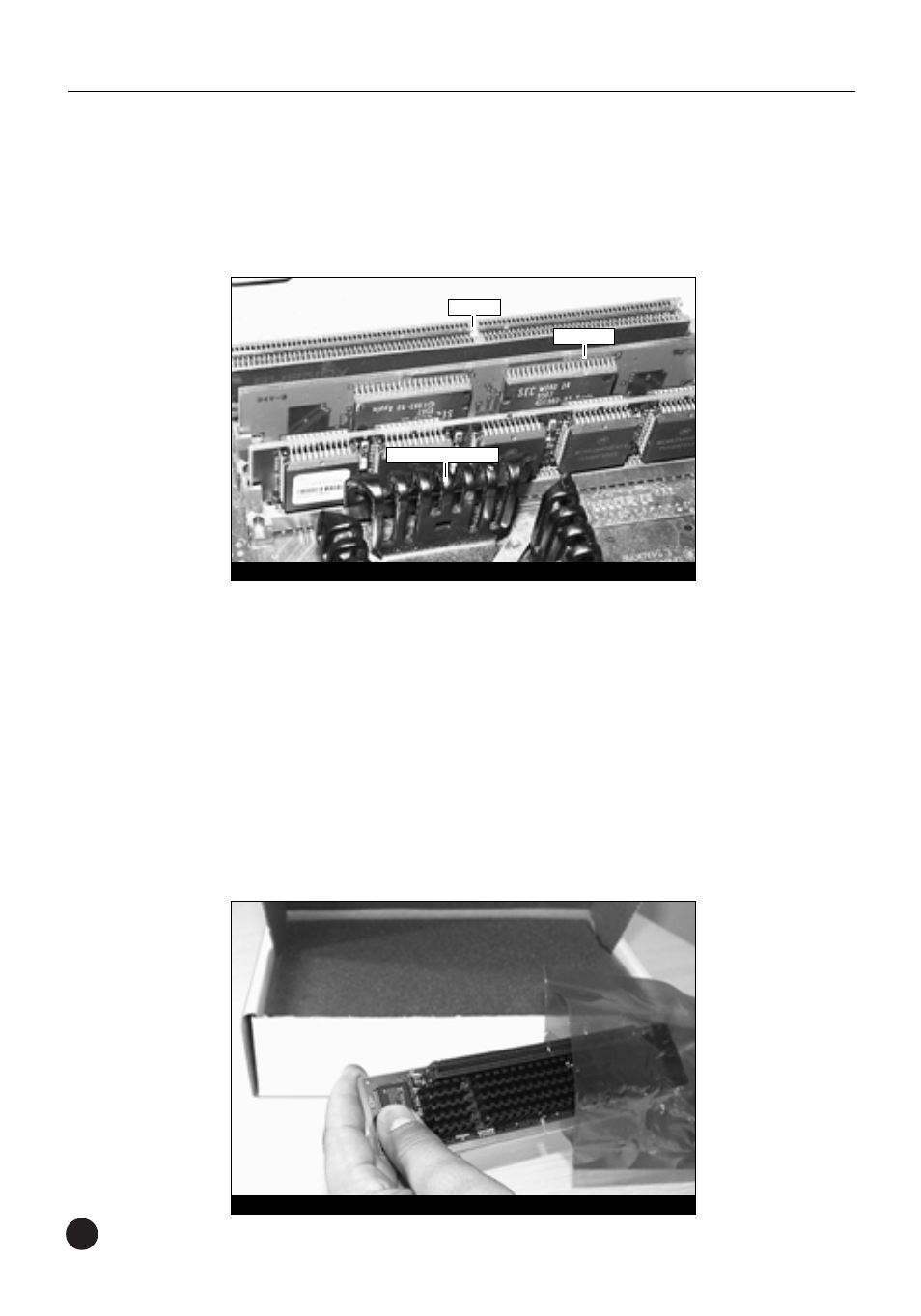

PDS slot
Figure 3: Remove PDS card from PDS slot
Figure 4: Remove Crescendo card from packaging
ROM card
CPU (with heatsink)
