23
AV/HPV Card Video Adapter Installation
Adapter Kit Inventory
Before installing the Crescendo NuBus processor upgrade card with
the AV or HPV card, you will require the following items (Figure 7):
Included with adapter kit:
1) Video adapter board
2) Video flex cable
3) Two 4-40 nuts
4) Support stand-off (required for 7100 only)
5) Two subassembly standoffs (required for 8100 only)
Needed; not included with adapter kit:
6) Small flatblade screwdriver
7) Small Philips screwdriver
8) Crescendo NuBus processor upgrade card
9) PDS-based AV or HPV card (AV card shown below)
We suggest you inventory and lay the items out in front of you prior
to proceeding with the installation of the AV or HPV card with the
Crescendo card.
Power Macintosh 7100 Installation
1
Needed; not included

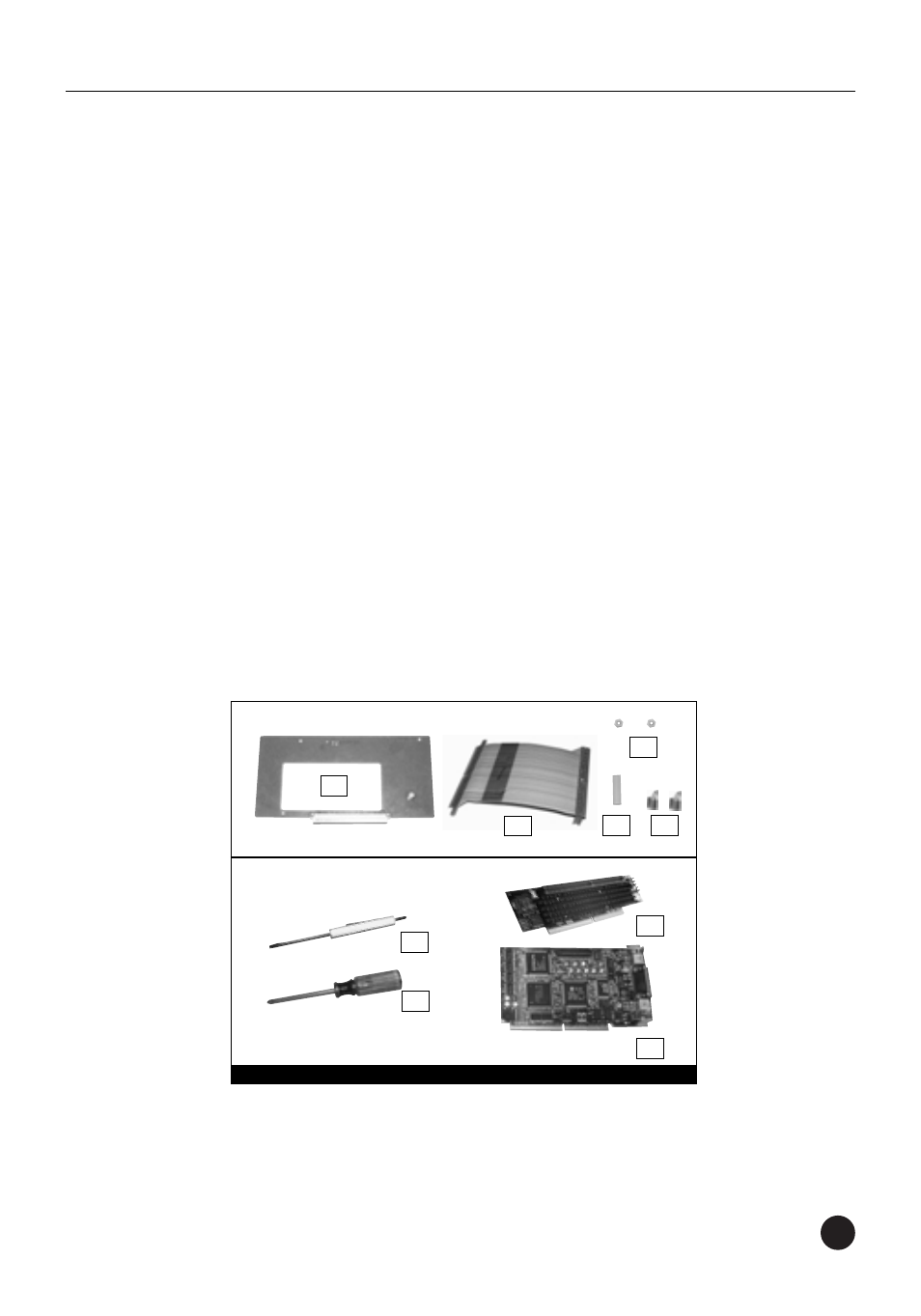

Figure 7: Items needed for Crescendo card installation with AV or HPV card
2
3
4
6
8
9
Included with adapter kit
5
7
