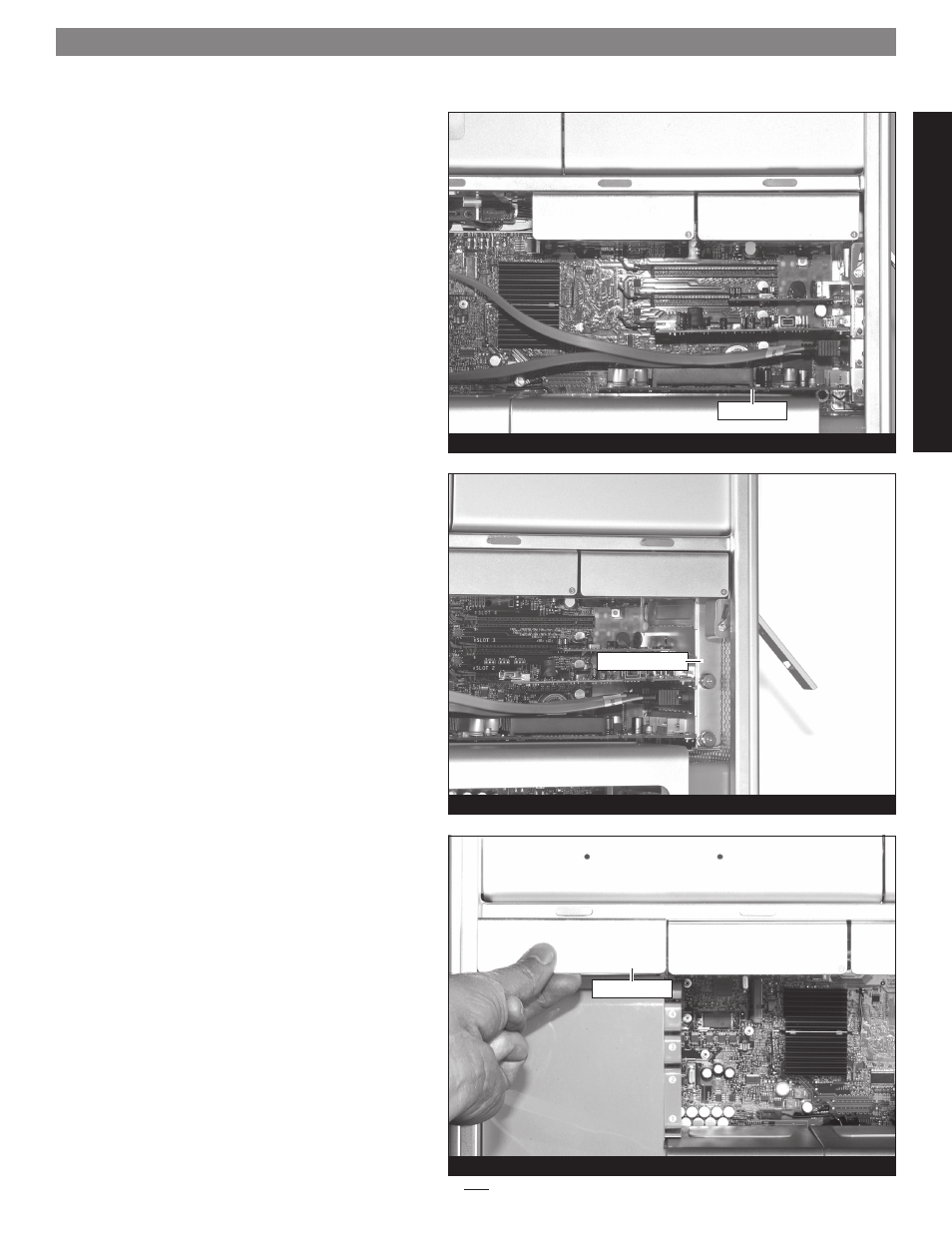

Figure 24
Figure 23
Figure 22
PRE-2008 MAC PRO INSTALLATION
8. Handling it by its edges, install the graphics card into its
slot; make sure the card is fully seated (Figure 22). If
you disconnected a power cable from the graphics card
when you disassembled the computer, connect it now.
9. Install any full-length PCIe cards you removed when you
disassembled the computer.
10. Secure the PCI Express cards with the PCI bracket
retainer, turning the captive screws finger-tight
(Figure 23).
11. Carefully insert the hard drive carriers back into the
drive bays, making sure any attached drives are plugged
in securely
(Figure 24).
12. Lift the Mac Pro back into the upright position, and
then insert the side panel back into place.
13. While supporting the side panel, press down on the
locking latch to secure the panel in place .
14. Reconnect your computer and turn it on to verify
everything is working properly. If everything works
properly, your installation is complete.
graphics card
PCI bracket retainer
hard drive carrier
PRE
-2
008
M
AC
P
RO
I
N
ST
AL
LA
TI
ON
