PRE-2008 MAC PRO INSTALLATION

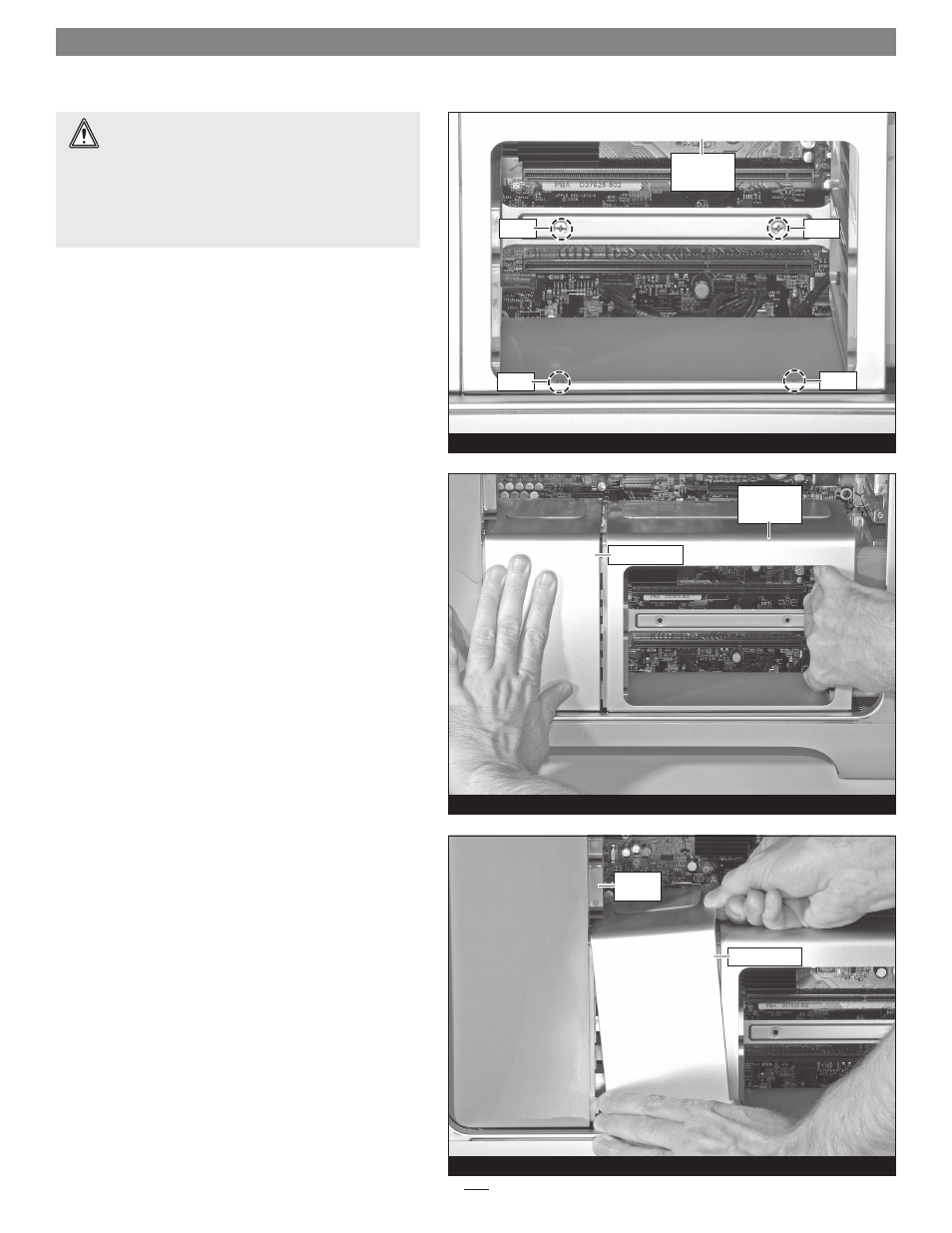

5. Locate and remove the four screws securing the memory
riser card compartment to the rest of the computer
(Figure 7).
6. Slide the memory riser card compartment about 1 /
8
inch
(3mm) to the right to disengage it from the heat sink
cover
(Figure 8).
7. Carefully lift up the right edge of the heat sink cover
and rotate it slightly as shown to disengage it from the
fan assembly
(Figure 9). Pull the cover away from the
fan assembly, remove it, and then set it aside.
WARNING: Some early-production, pre-2008 Mac
Pro computers were assembled with threadlocker (e.g.
LocTite®) applied incorrectly to the two screws that secure
the memory riser card compartment to standoffs attached to
the bottom of the computer. If the bottom screws continue
to turn without loosening when you attempt to remove
them, stop! Contact Sonnet Customer Support for further
assistance.
screw screw
screw screw
heat sink cover
heat sink cover
memory
riser card
compartment
memory
riser card
compartment
fan
assembly
