EARLY 2008 MAC PRO INSTALLATION
Reassemble Computer

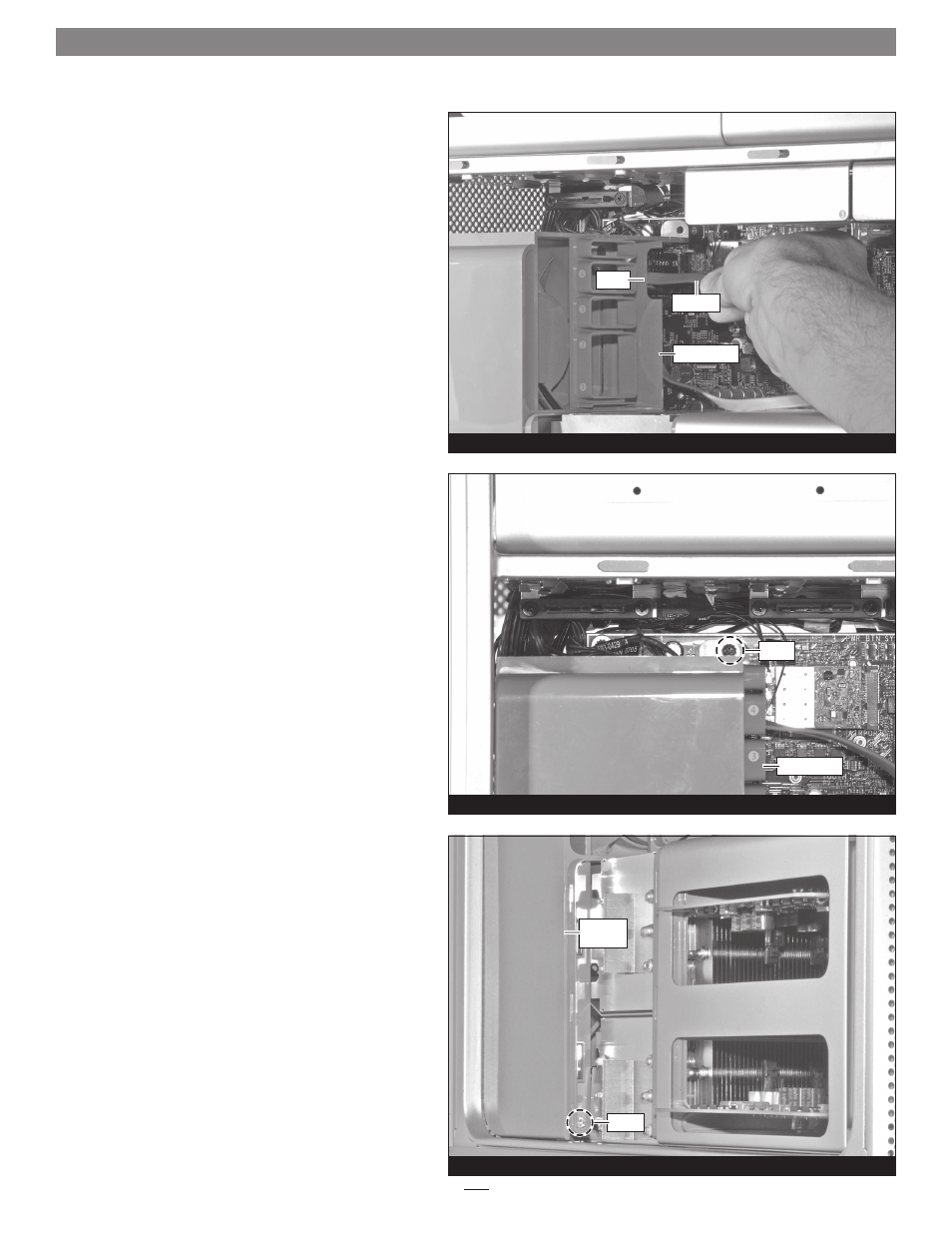

1. Insert the bottom of the fan assembly into the guides in
the bottom of the computer case and slide the assembly
in part way. Route the top eSATA Extender cable through
the notch in the assembly, and then push the assembly
in the rest of the way until the connectors are connected;
verify the connector is plugged in securely (Figure 37).
2. Secure the top of the fan assembly to the logic board
with the screw you removed previously (Figure 38).
3. Secure the bottom of the fan assembly to the logic
board with the screw you removed previously
(Figure 39).
top cable
notch
fan assembly
screw
fan assembly
Figure 39
fan
assembly
screw
