Sonnet Technologies eSATA Extender Cable - Manual (Page 7)

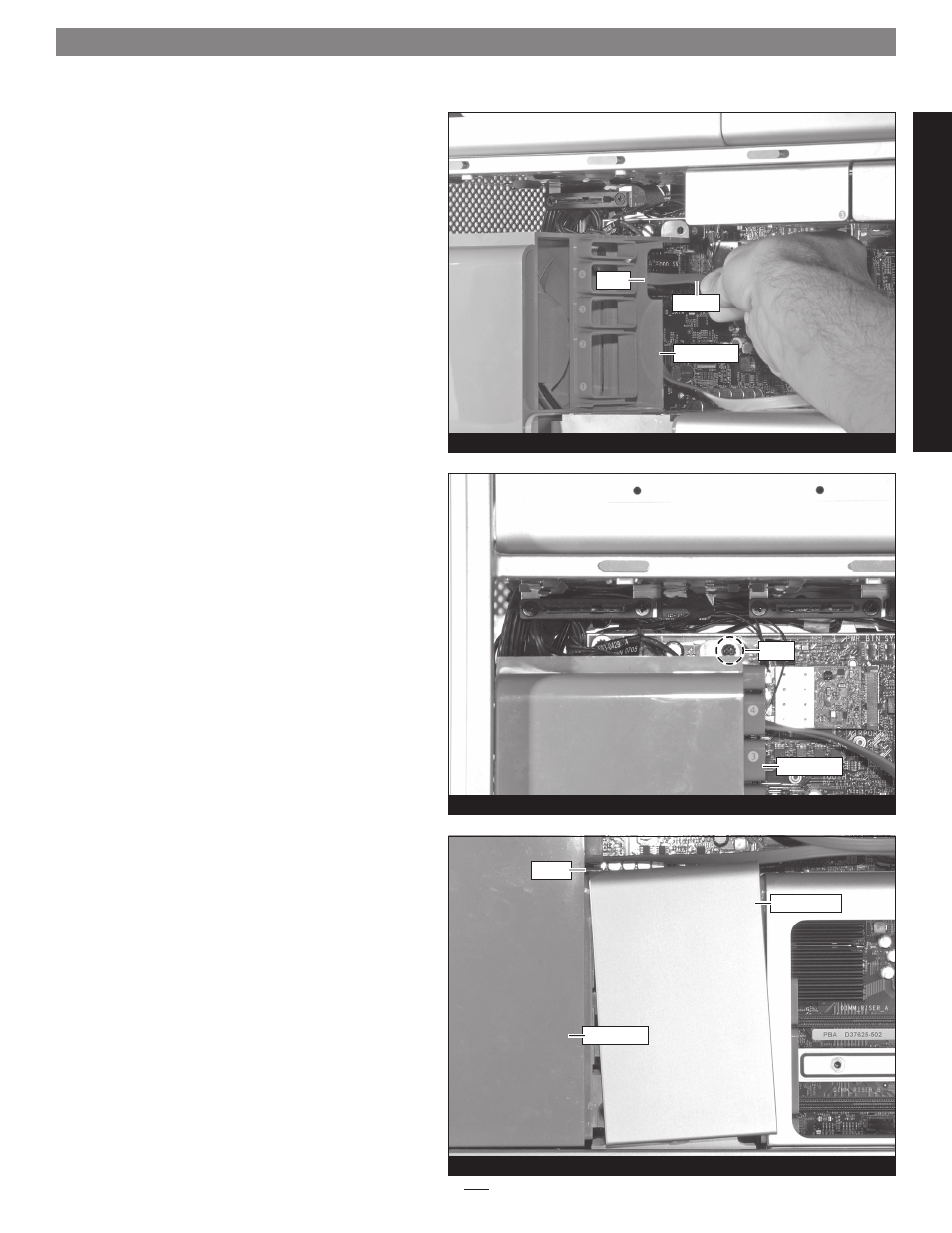

Figure 18
Figure 17
Figure 16
PRE-2008 MAC PRO INSTALLATION
Reassemble Computer
1. Insert the bottom of the fan assembly into the guides
in the bottom of the computer case, and then slide the
assembly in part way. Route the top eSATA Extender
cable through the notch in the assembly, and then push
the assembly all the way in until the connectors are
connected;
verify the connector is plugged in securely
(Figure 16).
2. Secure the fan assembly to the logic board with the
screw you removed previously (Figure 17).
3. Insert the edge of the heat sink cover under the top tab
on the fan assembly, and then rotate the cover down so
that the tabs on the fan assembly and cover join together
(Figure 18).
top cable
notch
fan assembly
screw
fan assembly
top tab
heat sink cover
fan assembly
PRE
-2
008
M
AC
P
RO
I
N
ST
AL
LA
TI
ON
