EARLY 2008 MAC PRO INSTALLATION
Install eSATA Extender

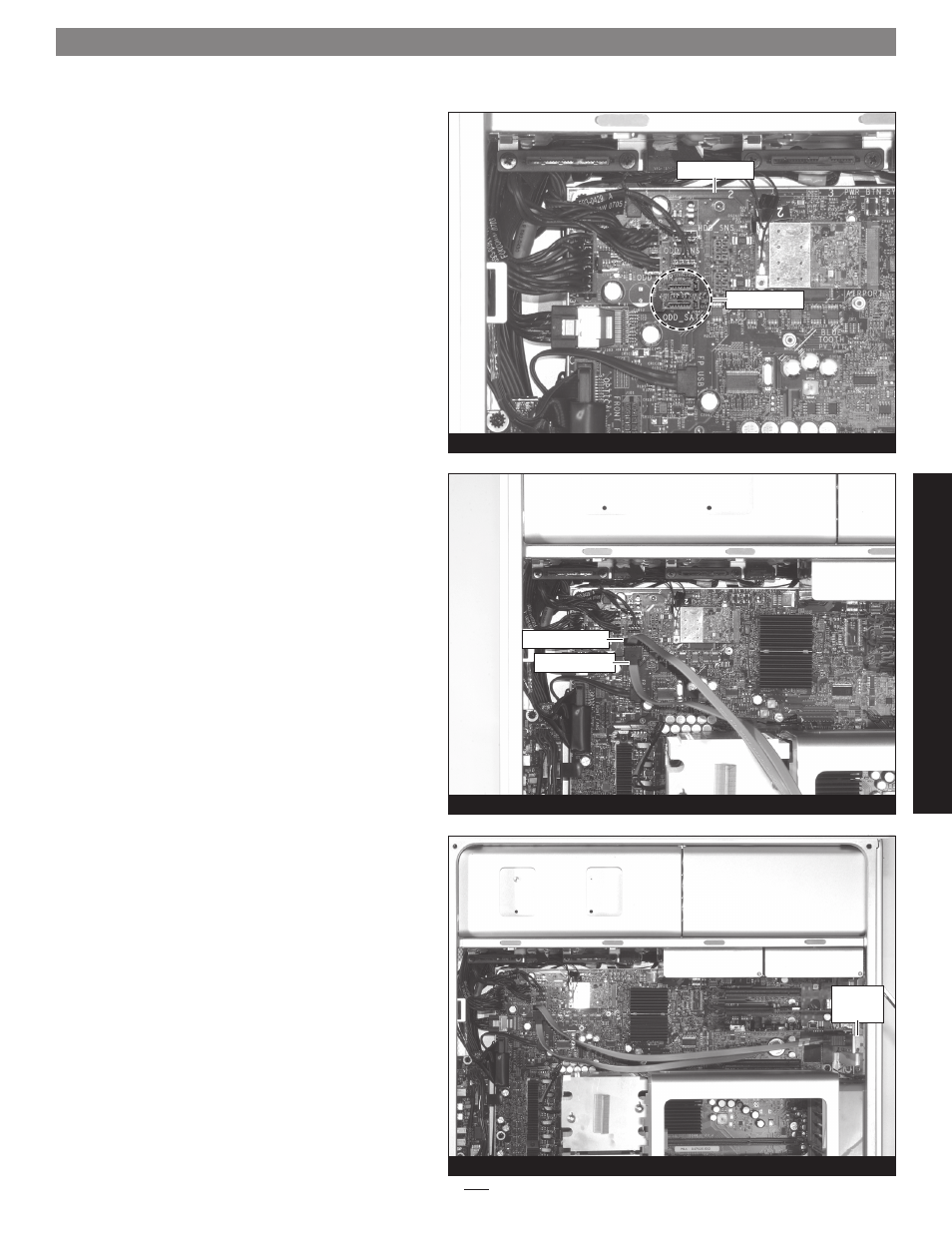

1. Locate the two SATA connectors in the upper left corner
of the logic board labeled “ODD_SATA” (Figure 34).
2. Connect the eSATA Extender’s cables to the SATA
connectors on the logic board, plugging in the straight
connector on the top, the angled connector on the
bottom;
verify the connectors are plugged in securely
(Figure 35).
3. Locate an available PCI Express slot inside your computer
and remove its access cover. If your Mac Pro is equipped
with a thin graphics card, you may be able to use the
empty space above the slot it occupies.
4. Insert the eSATA connector bracket into the open space
(Figure 36).
SATA connectors
logic board
straight connector
angled connector
eSATA
connectors
bracket
