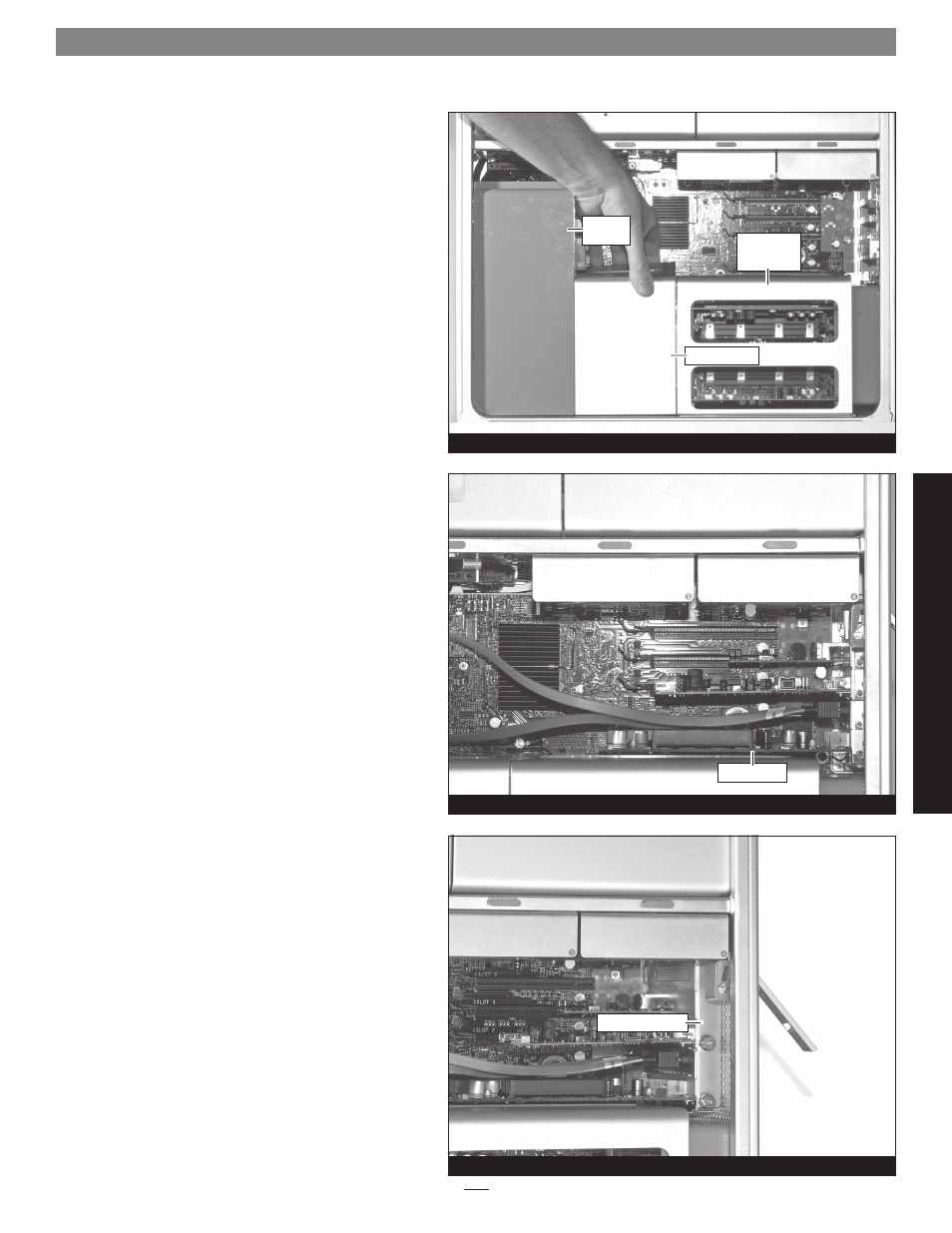

Figure 40
heat sink cover
fan
assembly
Figure 42
Figure 41
graphics card
PCI bracket retainer
1
EARLY 2008 MAC PRO INSTALLATION
4. Replace the heat sink cover, making sure that its tabs
snap into the holes in the fan assembly and memory
riser card compartment
(Figure 40).
5. Handling it by its edges, install the graphics card into its
slot; make sure the card is fully seated (Figure 41). If
you disconnected a power cable from the graphics card
when you disassembled the computer, connect it now.
6. Install any full-length PCIe cards you removed when you
disassembled the computer.
7. Secure the PCI Express cards with the PCI bracket
retainer, turning the captive screws finger-tight
(Figure 42).
memory
riser card
compartment
