EARLY 2008 MAC PRO INSTALLATION

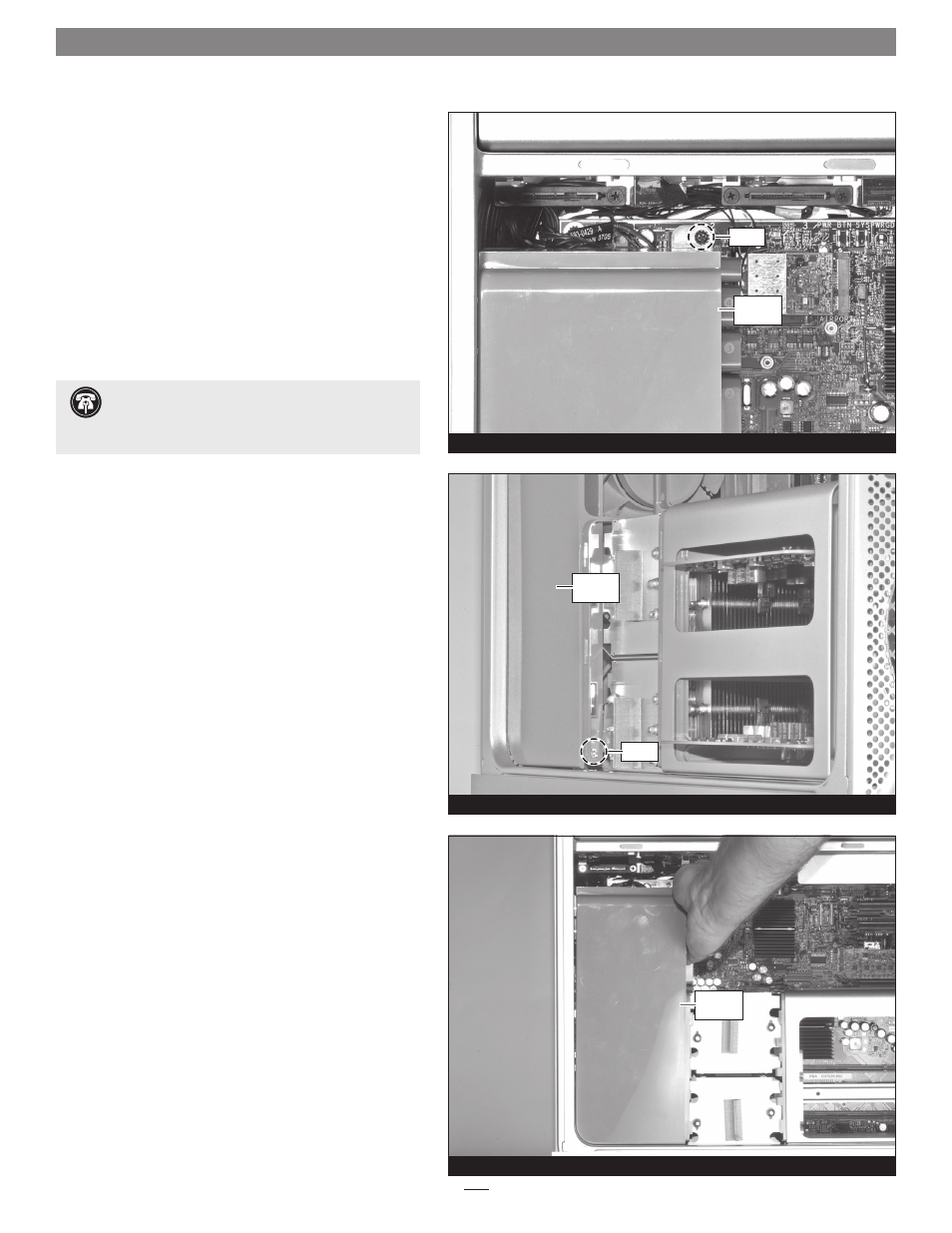

5. Locate and remove the screw securing the top of the fan
assembly to the logic board (Figure 31).
6. Locate and remove the screw securing the bottom of the
fan assembly to the logic board (Figure 32).
7. Pull the fan assembly straight out of the computer
(Figure 33).
Support Note: The fan assembly is plugged in
directly to the logic board, and secured to the bottom
of the computer by guide rails. When removing the assembly,
it is important to pull it straight up.
screw
fan
assembly
fan
assembly
fan
assembly
screw
