2. Unscrew the PCI bracket retainer’s captive screws, and
then remove the retainer and set it aside (Figure 4).
3. While pulling the PCIe slot release tab, carefully
remove the graphics card from the computer, handling
it only by its edges
(Figure 5). Set aside the graphics card
with the heat sink (or fan) face down. Please note that if
your computer has any full length PCIe cards installed (long
enough to extend all the way to the fan assembly), you must
also remove them before proceeding to the next step.
4. Grasping it by its finger holes, gently but firmly pull
on the top memory riser card to remove it from the
computer
(Figure 6), and then set it aside on a soft,
clean cloth with the DIMMs facing up. Repeat the
process with the bottom memory riser card.
PRE-2008 MAC PRO INSTALLATION

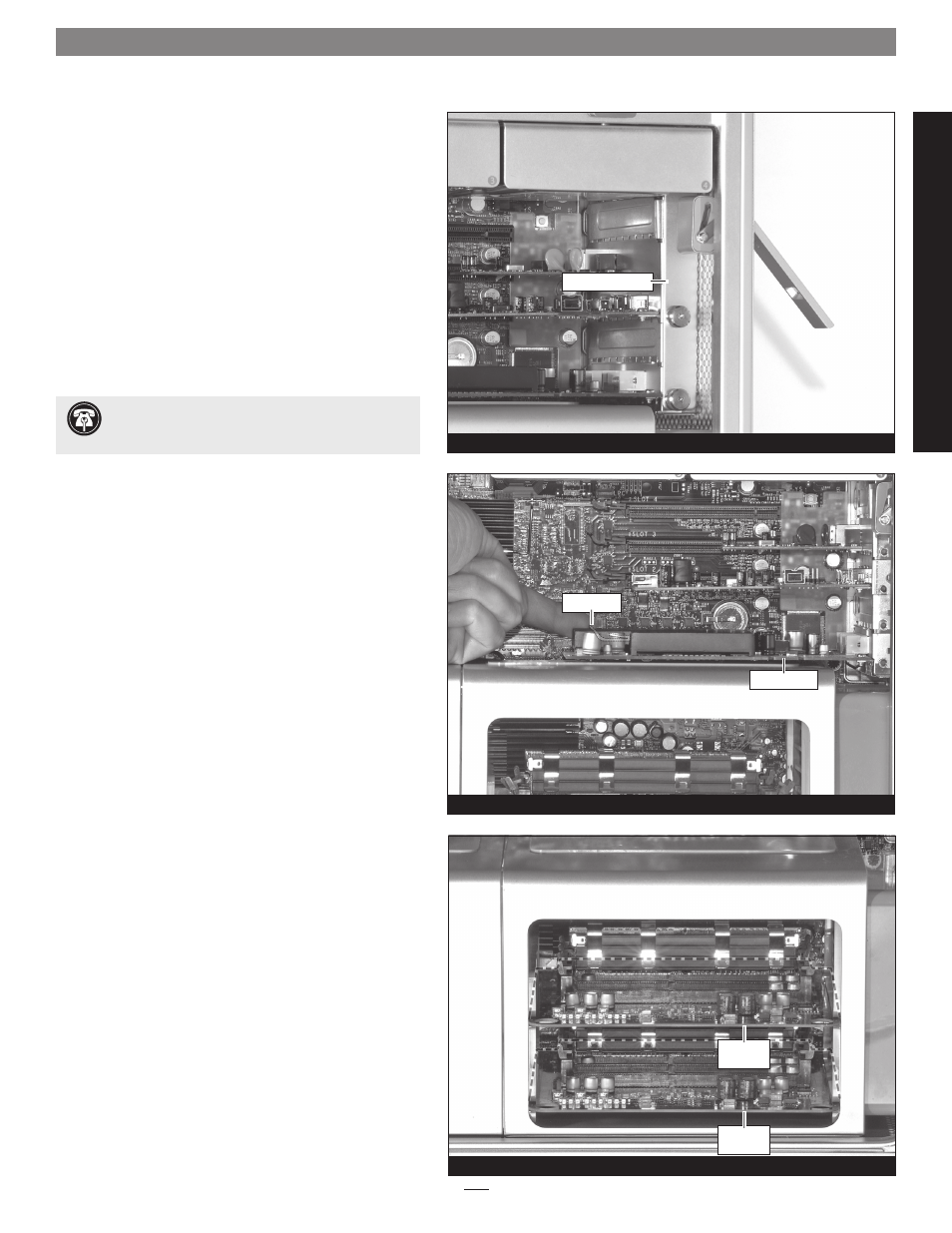

Figure 6
Figure 5
Figure 4
Support Note: If your computer’s graphics card has a
separate power cable, disconnect it before proceeding to
the next step.
PCI bracket retainer
release tab
graphics card
memory
riser card
memory
riser card
