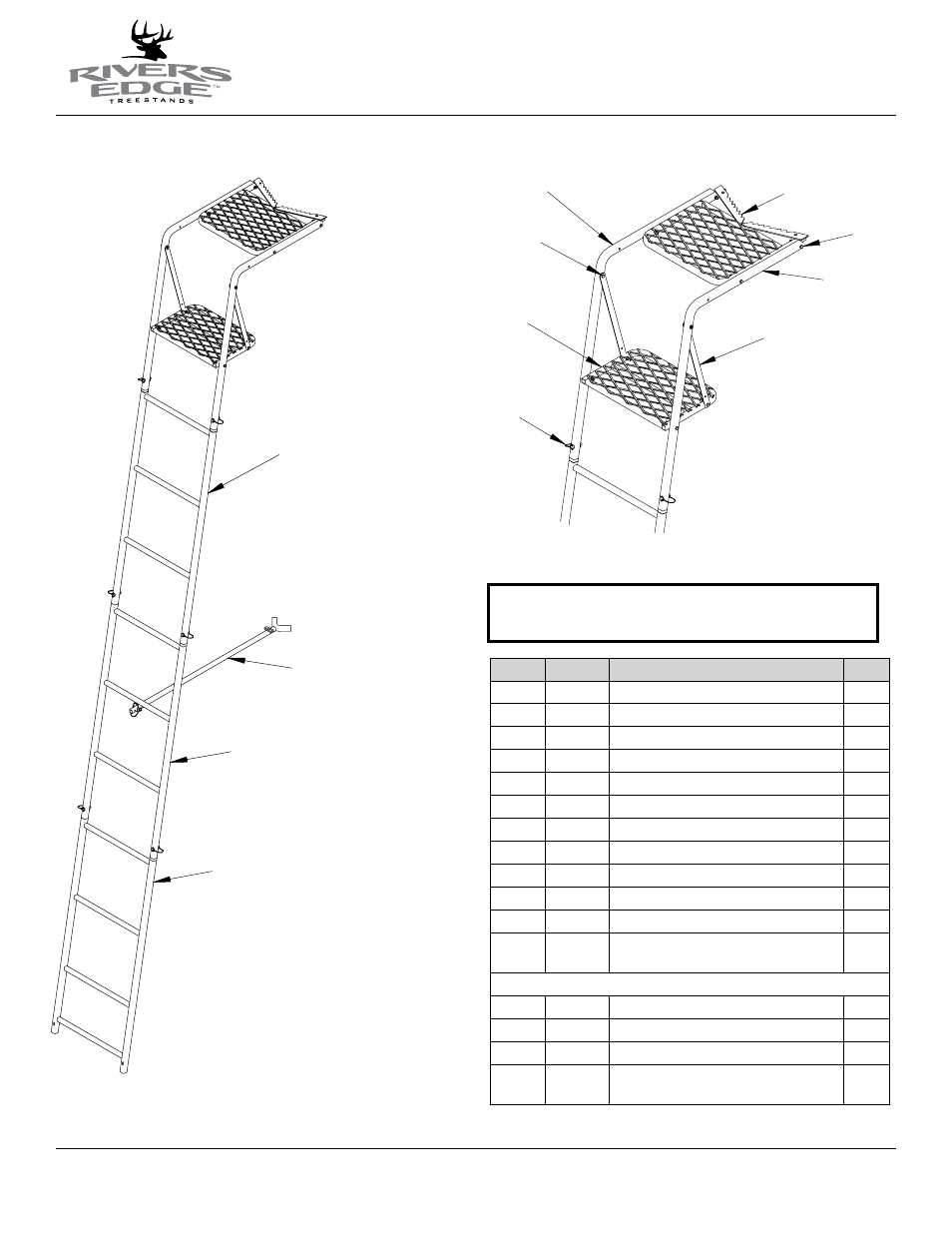

RE602 lADDER PARTS
6
3
8
7
12
10
2
1
11
2
5
4
kEY # PART # DESCRIPTION QTY.
1 SL24 SEAT/TREE BLADE FRAME 1
2 SL61 SIDE RAIL 2
3 SL60 3-STEP LADDER, PIN STYLE, NO HOLE 1
4 1ML26 FOOT PLATFORM 1
5 SL8 SIDE SUPPORT, FOOT PLATFORM 2
6 SL43 3-STEP LADDER W/VAM, PIN STYLE 1
7 SL44 4-STEP LADDER, PIN STYLE 1
8 L17 STABILIZER BAR 1
9 48752B NUT, FLANGED, NYLOCK 1/4-20 10
10 48240B BOLT, HHCS GR5 BLK 1/4-20 X 1-1/2" 4
11 48271B BOLT, HHCS, GR5 BLK 1/4-20 X 2-1/4" 6
12 63281 SPRING LOCK PIN, ROUNDED RE-
TAINER 1/4 X 1-3/4"
7
ITEMS BElOW NOT ShOWN
-- 48415 RATCHET STRAP 1
-- 48155 FULL BODY HARNESS (FAS) 1
-- 48691 ROPE, 9' (SOLD IN ROPE KIT ONLY) 1
-- 48691 TIE-OFF ROPE, 15'
(SOLD IN ROPE KIT ONLY)
2
RE602 lADDER PARTS lIST
NO EXTENSIONS AvAIlABlE fOR ThIS MODEl,
TESTED fOR 15' MAXIMuM hEIGhT!
Maximum height - 15'
Maximum field Rating - 300 lbs.
Tree Diameter Range - 12" to 20"
