Test Stations - Operation
18

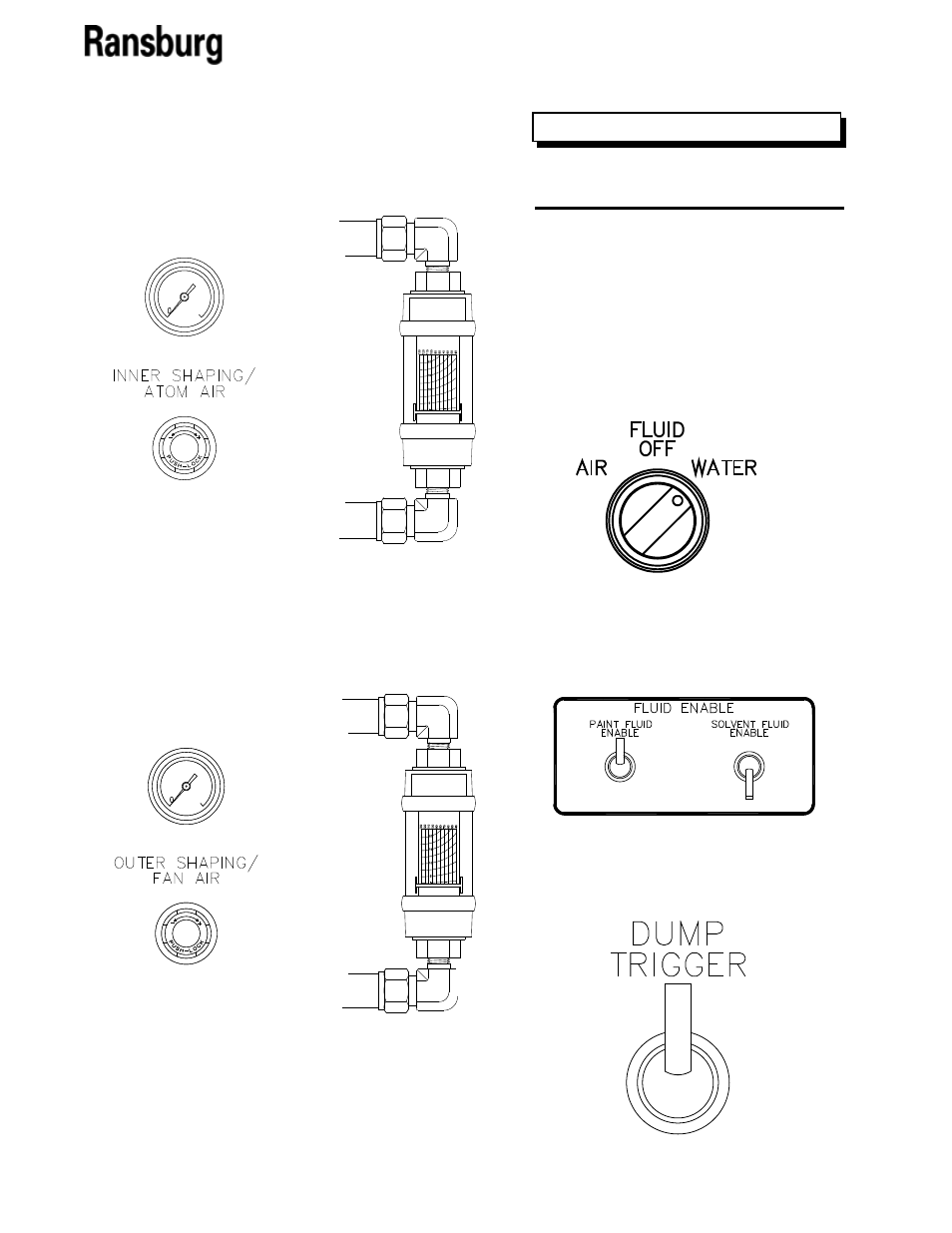

Flow Test
1. Turn on the “Water/Air” switch to the “Water“
position.
2. Adjust the “Atom Air” control knob on the panel
until there is 50 psi flowing on the atom air gauge.
Check that the atom air pressure test gauge
shows a pressure.
100 100 S.A.I./ATOM
3. Adjust the “Manual Fan Air” control knob on
the panel until there is 50 psi flowing on the fan
air gauge. Check that the fan air pressure test
gauge shows a pressure.
100 100
S.A.O./FAN
4. Turn the “Bell/Applicator” switch to “OFF”
position.
N O T E
> Always verifty the flow meter regulator
is set at 100 psi.
5. Turn off the “Fan and Atom Air” controls.
6. Remove the test cap from the applicator.
2. Turn on the pressure pot valve.
3. Turn on the”Paint Fluid Enable” switch.
4. Turn on the “Dump Trigger” until there is no air
in the line, then turn off.
