Test triggers – Ransburg Test Stand RMA-303, EVOLVER, EVOLVER NE User Manual
Page 14
LN-9259-07.1
Test Stations - Operation
11
TEST TRIGGERS

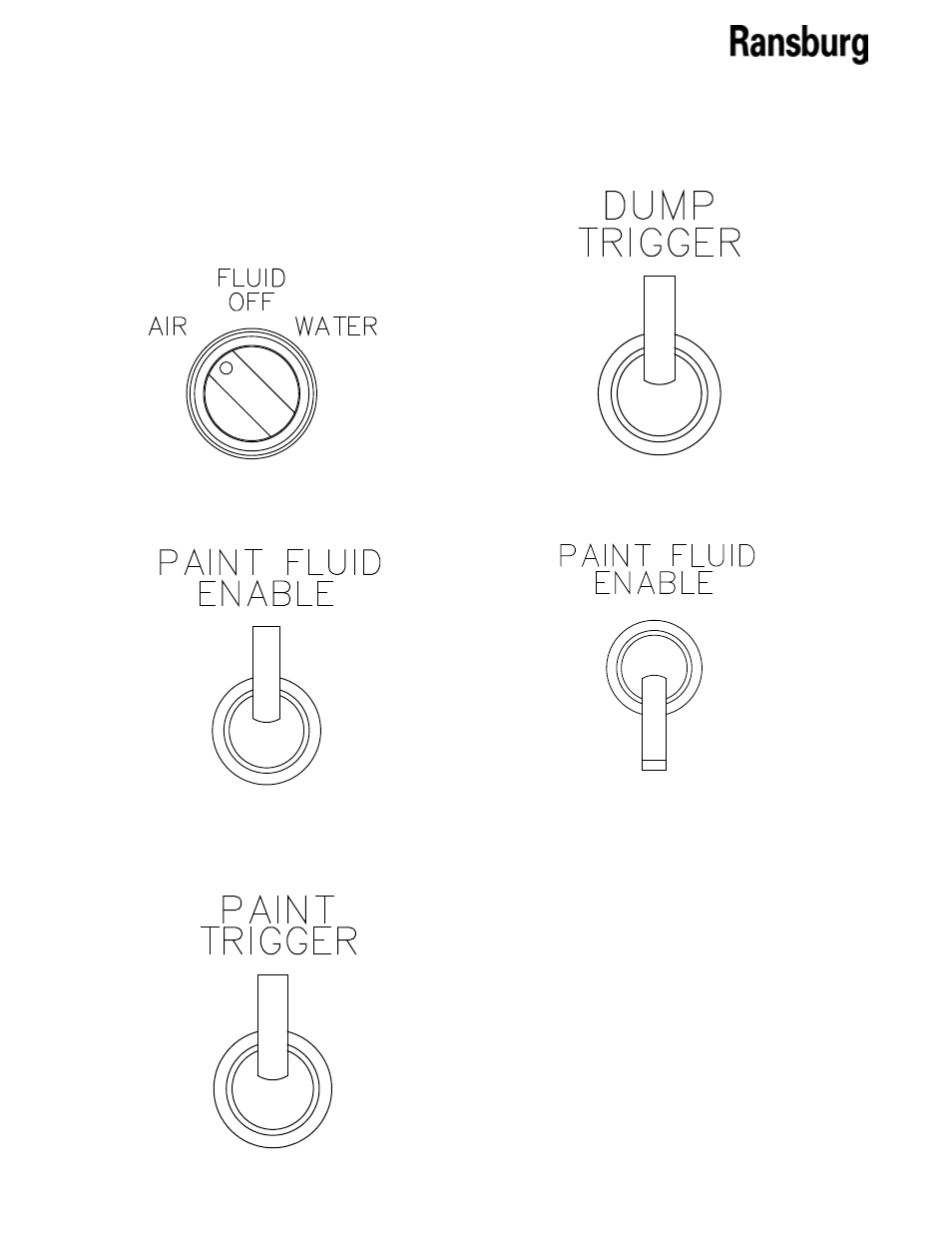

1. Ensure fluid supply is OFF.
2. Turn “fluid” switch to AIR.
5. Toggle on the “Dump” switch; air should be
escaping from the “Dump Port” of the applicator.
Turn off the “Dump” switch.
3. Toggle the “Paint Fluid Enable” switch on (up)
to supply air pressure to the applicator.
4. Toggle on the “Paint Trigger” switch; air should
be escaping from the feed tube. Turn off the
“Paint Trigger”.
6. Toggle “Paint Fluid Enable” switch to the off
(down) position.
7. Turn on the “Cup Wash Air” switch, now turn on
the “Bell Solvent” trigger, air should be escaping
from the feed tube and cup wash spout. Turn off
the “Cup Wash Air” trigger and the “Cup Wash
Air In” switch.
8. Turn on the “Cup Wash Solvent” switch, air
should be escaping from the feed tube and cup
wash spout. Turn off the “Cup Wash Solvent” and
“Cup Wash Solvent In”.
