Test Stations - Operation
12

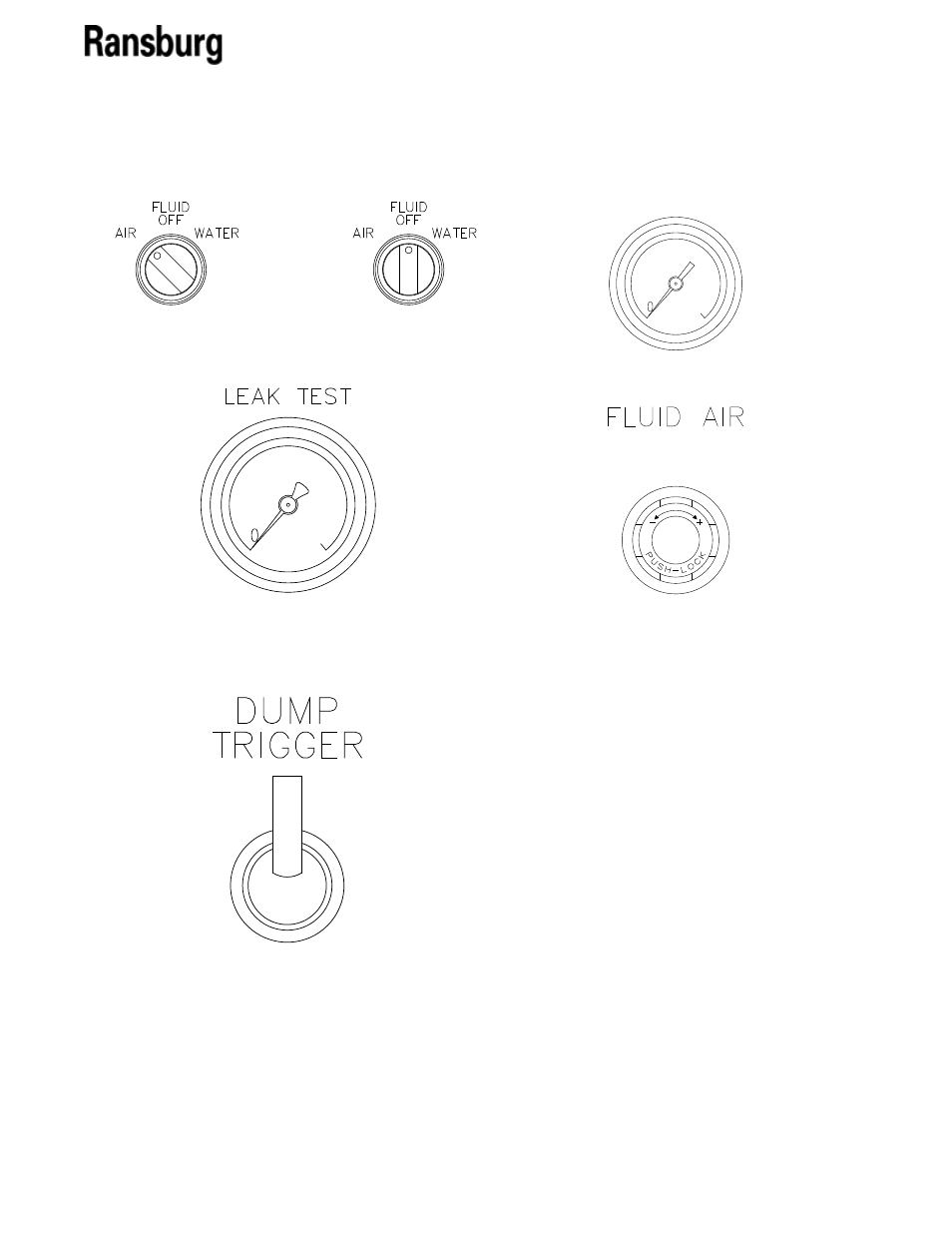

Air Test
1. Turn the “Fluid” switch to “Air” then “Off” to
pressurize the system.
2. Observe the leak test gauge. The pressure
must not drop more than 2 psi in 10 seconds.
160
3. Open the “Dump” to de-pressurize the system
and turn off all of the trigger valves. Switch the
“Dump” to “Off”
4. Turn the “Fluid Air” regulator to 0 psig. Open
the manual relief valve on the pressure pot. Turn
all switches off. Ensure “Fluid Enable” switches
are all off.
100
Static Decay / Water
Pressure Test
The purpose of this test is to verify that each of the
valves in the applicator will pass fluid. Also, this
test verifies all seals along the fluid passages have
been properly installed to prevent any leakage.
1. Ensure all toggle switches are set to the “off”
or “down” position.
2. Position the applicator where any water
sprayed out of the bell may be collected and
properly disposed of.
3. Verify there is no residual pressure in the
pressure pot included with the test stand. Turn
the regulator dial on the pressure pot counter-
clockwise until all pressure is released. Pull the
bleed-off valve to release any remaining pressure.
