Test Stations - Introduction
7

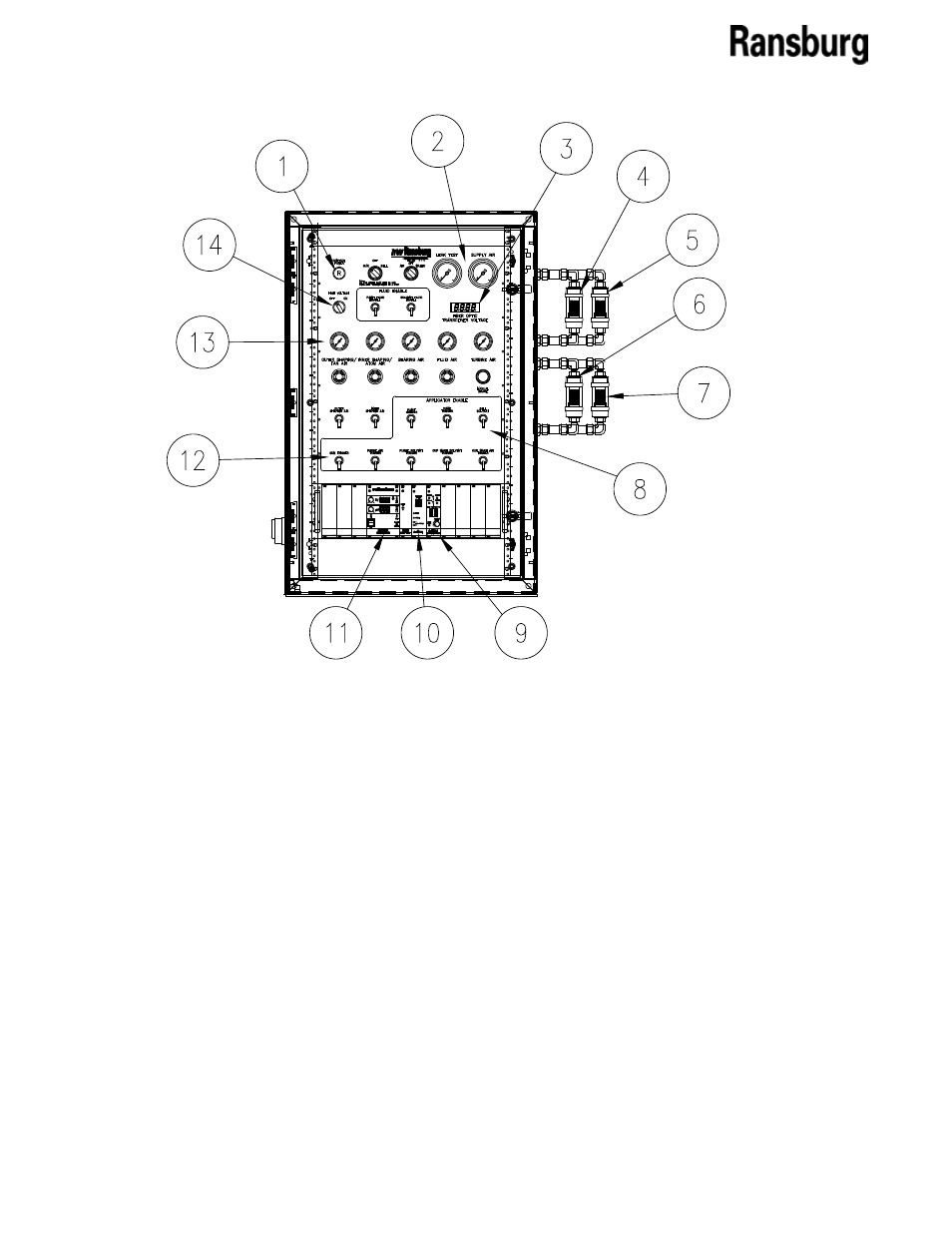

Figure 1b: Basic Station Features
1 Power Control - On/Off Button
2 Main Air Gauges - Leak Down, Supply Air
3 Fiber Optic Voltage Readout
4 Air Flow Meter - Atom Air
5 Air Flow Meter - Outer Shaping Air
6 Air Flow Meter - Bearing Air
7 Air Flow Meter - Inner Shaping Air
8 Fluid Enable - Paint In, Cup Wash Solvent
In, Cup Wash Air In
9 Atomizer Speed Select Card
10 Atomizer Card
11 MicroPak Power Supply
12 Applicator Enable, Paint Trigger, Cup Wash
Solvent, Cup Wash Air, Dump
13 Regulated Function Gauges - Bearing Air,
Outer Shaping Air, Inner Shaping Air
14 High Voltage - On/Off Switch
TURBINE S.A.O./FAN
S.A.I./ATOM
DESC MANUFACTURER CAT
MANUFACTURER CAT DESC
160 160
DESC MANUFACTURER CAT
100 100 100 100 100
BEARING AIR
