Test Stations - Operation
17
Bleed Air Test (Volume)
N O T E
> Ensure that the regulator at the flow
meter is set at 100 psi.
1. Verify “Bell/Applicator” switch is in the applica-
tor position.
EVOLVER NE TEST
PROCEDURE
Direct Charge Test
(90kV Maximum)
1. Install the high voltage cable to the applicator
and cascade as described in the applicator ser-
vice manual. Ensure all components are properly
grounded.
2. Turn on the main power to the MicroPak.
Display should be reading 00 on the kV and µA
display.

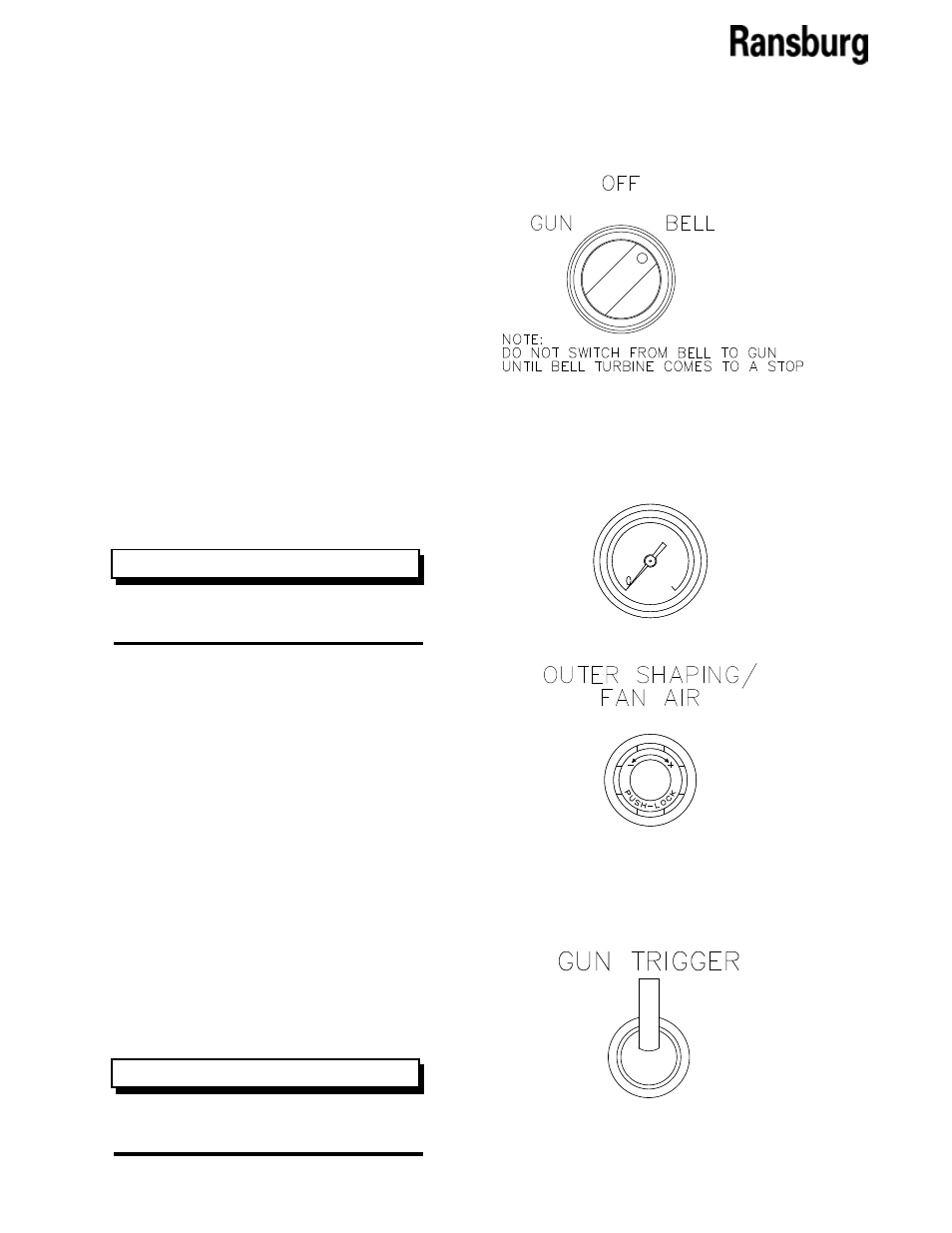

2. Turn up “Fan Air Control” knob on the panel
until there is 50 psi flowing on the fan air/outer
shaping air gauge.
100 100
Air Operation
1. Connect the “Test Air Cap” to the spray head.
Toggle the “Applicator Trigger” switch on.
by placing the High Voltage Test Probe on the high
voltage ring probe tips. Test probe display should
match the MicroPak display.
6. Turn off the power supply to the MicroPak.
N O T E
> Ensure all personnel near the field are
grounded.
3. Turn on the “kV Enable” switch. kV should be
reading what has been set by adjusting the dial.
4. Using the High Voltage Test Probe (76634-
00) check the actual voltage from the applicator
by placing the High Voltage Test Probe on the
bell cup. Test probe display should match the
MicroPak display.
5. Turn off the power supply to the MicroPak.
