15
split angle adjuster
clockwise to
increase the split
angle.
3. Rotate the adjuster
counter clockwise
to decrease the
split angle.
4. Once split angle adjustment has been
made, rotate the point split nut clockwise
to retain the selected setting and secure
the point split angle adjuster.

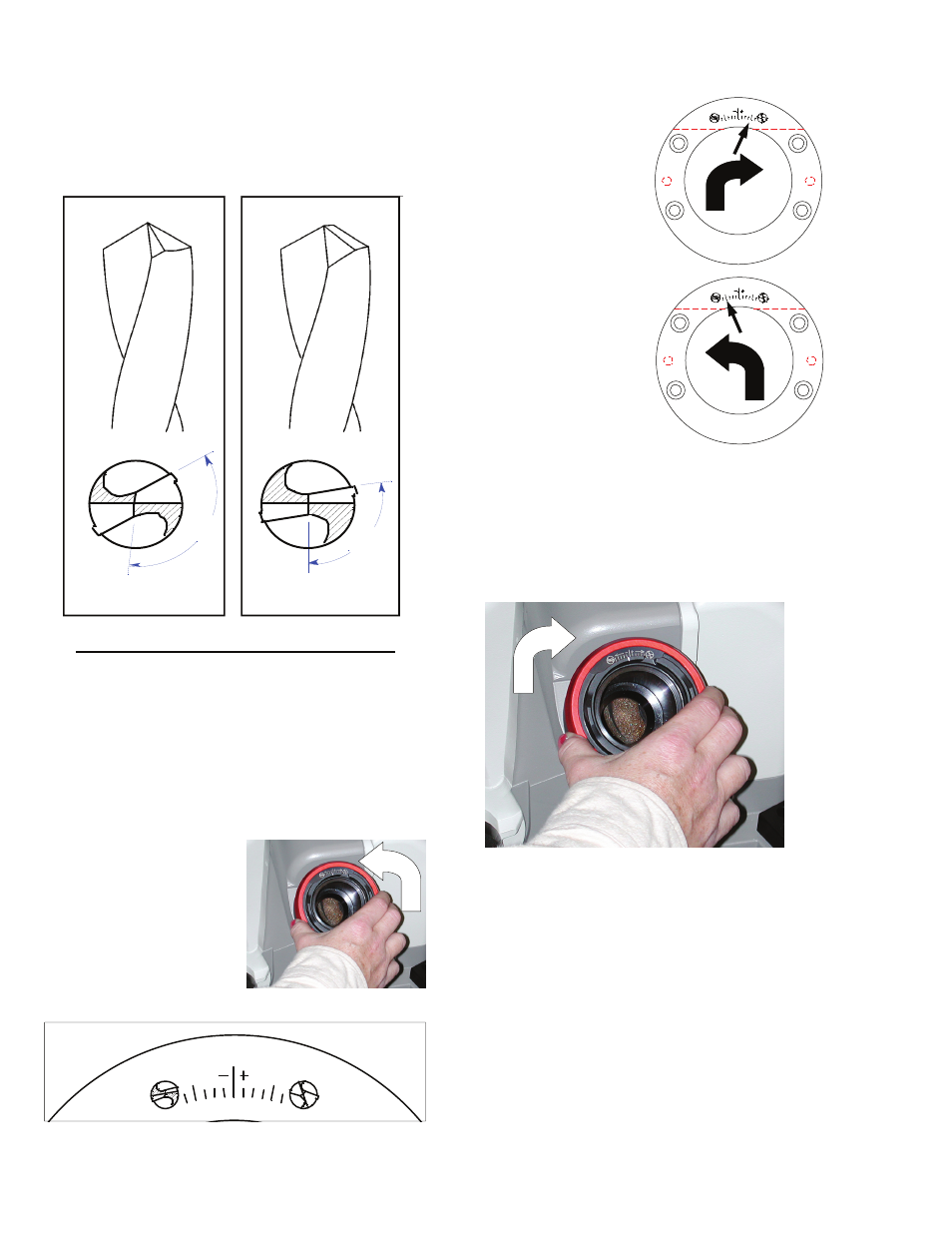

Adjusting the Split Angle Rotation
Typically the split angle of a drill is 120° - 130°
from the cutting edge. By increasing the rotation
of the split angle, the split portion of the drill
meets the cutting lip at a greater angle, which
will give the drill more strength and durability.
This added split angle creates a pointed profile
at the very center of the drill, producing a self-
centering effect and reduces drill point walking
at the start of a hole.
1. Loosen the point
split nut by
rotating the nut
counterclockwise.
2. Rotate the point
Pointed Flat
POINT SPLIT ANGLE
DIAGRAM
Drill Point Splitting
135° 118°
135° 118°
135° 118°
95 °
10 5°
12 0°
13 0°
