General Information Installation

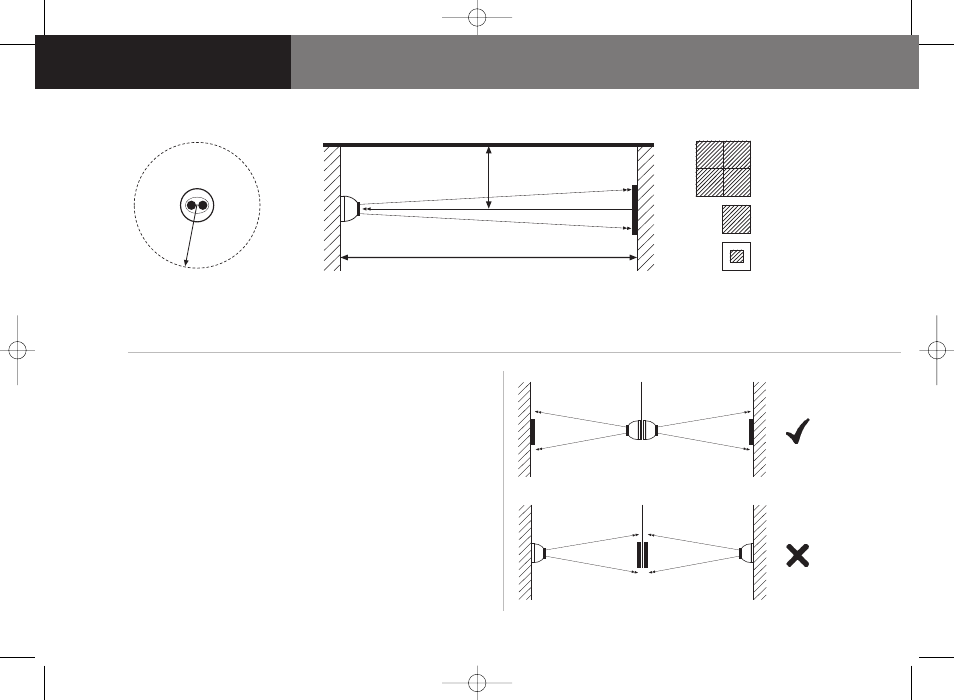

• Check the beam spacing against local regulations
• Position beam as high as possible, but with a minimum
distance of 0.5m from Detector to ceiling
• Mount Detector and Reflector directly opposite each
other
• Do NOT position Detector where personnel or objects
can enter the beam path
• Do NOT position 2 Detectors facing each other
• LED indicator must face downward
18—50m = 1
50—100m = 4
8—18m = 1
Use Short Range
Mask
50cm
8-100m
50cm
Ensure clear line of sight
from Detector to Reflector
Mount on solid surfaces (structural wall or girder)
50cm
50cm
8-100m
4
