If it is not possible to see the LASER because of
the installation environment (for example, if you
cannot see the Reflector from the System
Controller or there is high ambient light) then use

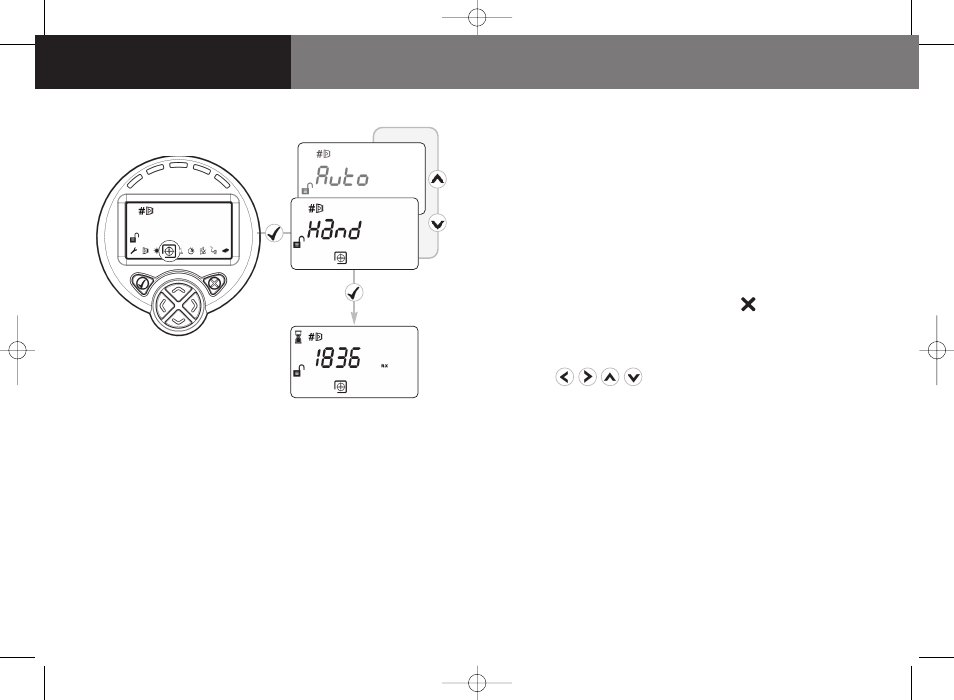

‘Hand’ Alignment. This option displays the signal
strength value returned by the Detector, and
allows the user to move the beam
1. Start ‘Auto’ Alignment and press after two
seconds to exit. (this will maximise infrared
power)
2. Select ‘Hand’ alignment
3. Use to steer the beam until the
signal strength is above 800. There is no
auto-repeat function on any key. To move the
motor in any given direction more than once,
press the key multiple times
4. Cover the Reflector. If the Signal Strength
does not drop by more than half, the beam is
not aligned to the Reflector, so repeat Step 3
5. Perform ‘Auto’ alignment, followed by ‘Set’
Troubleshooting LASER Not Visible
20
