In Use
Settings and Final Tests
Detector Fire LED Test
Detector will signal Fire,
System Controller will stay
Normal.
Press
to exit
without performing the test

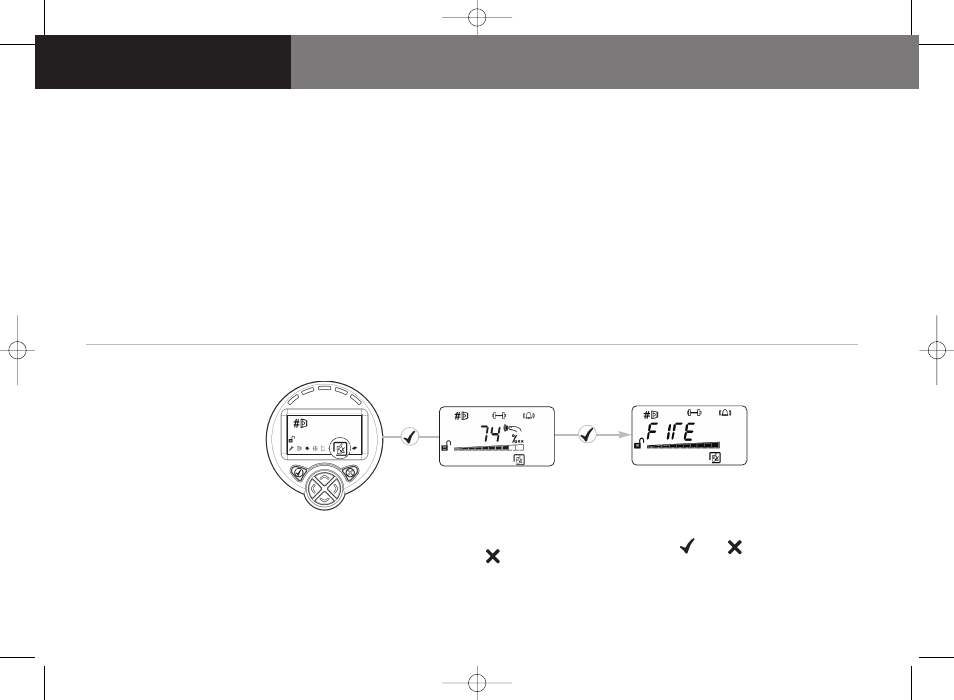

Relay/Controller Wiring Test
System Controller signals
‘Fire’ to Fire Control Panel
Press
or
to
exit
Software Fire Test
How to perform a Fire Test
from the System Controller,
to test the wiring to the Fire
Control Panel
NOTE: The Software Fire
Test is acceptable for Fire
Authority Acceptance and
Routine Maintenance per
UL268-5
Manual Fire and Fault Tests
After installation or cleaning, it is recommended that a manual Fire and Fault test is performed:
Fire Test: Cover the Reflector slowly so that it takes longer than
5 seconds to cover. The System Controller will signal Fire to the
Fire Control Panel
Fault Test: Cover the Reflector completely within 2 seconds. The
System Controller will signal Fault back to the Fire Control Panel.
