Commissioning

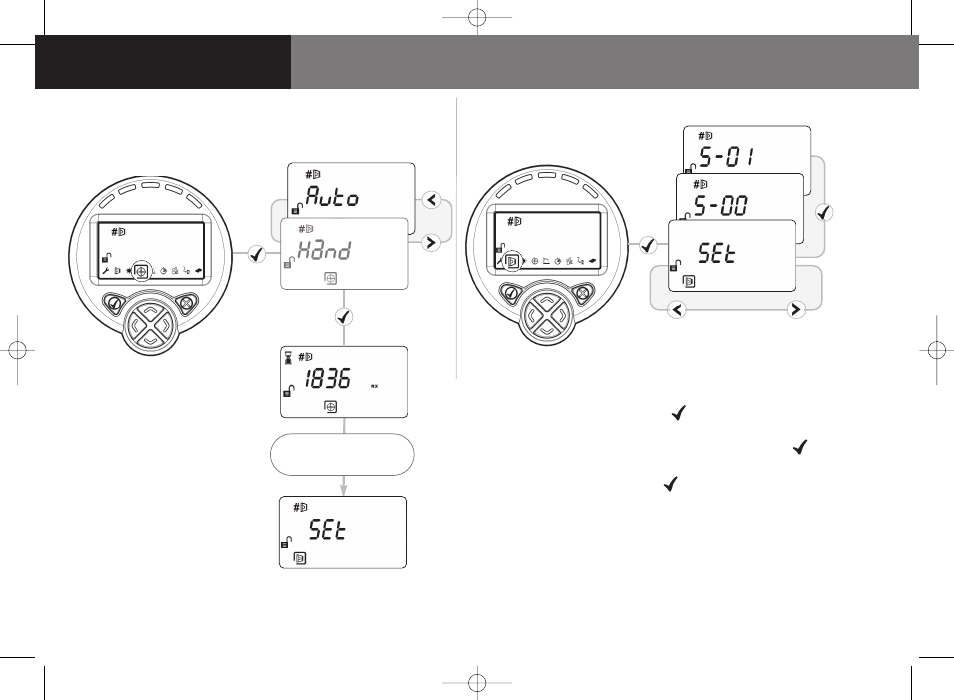

‘Auto’ Alignment and ‘Set’ 0/100 (Calibrate)
9. ‘Set’ 0/100 (Calibrate)
• Select ‘Auto’ to automatically
align the infrared beam
• Signal Strength will be shown
during Alignment
• If the LASER is turned on it
will not necessarily be
pointing on the Reflector
after ‘Auto’ is run - this is
normal
8. ‘Auto’ Alignment
• When ‘Set’ is displayed press
• When ‘S-00’ is displayed, cover the Reflector with a non-
reflective material and leave covered, then press
• When ‘S-01’ is displayed, uncover the Reflector and
leave uncovered, then press
• Repeat Steps 5 to 9 for any other Detectors found during
the ‘Find’ process
