4.4 Nutrunner (Tool) Dimensions
Tool dimensions and mounting specifications are critical in determining the design of the
powerhead that will house the tool assemblies. Caution must be taken to ensure that the tool
assemblies do not come in contact with any other assembly. Failure to provide adequate
clearance may result in inaccuracies in the monitoring capability of the system or possibly
damage to the tool assembly. Torque capabilities of each tool assembly are specified to aid
in determining tool requirements.

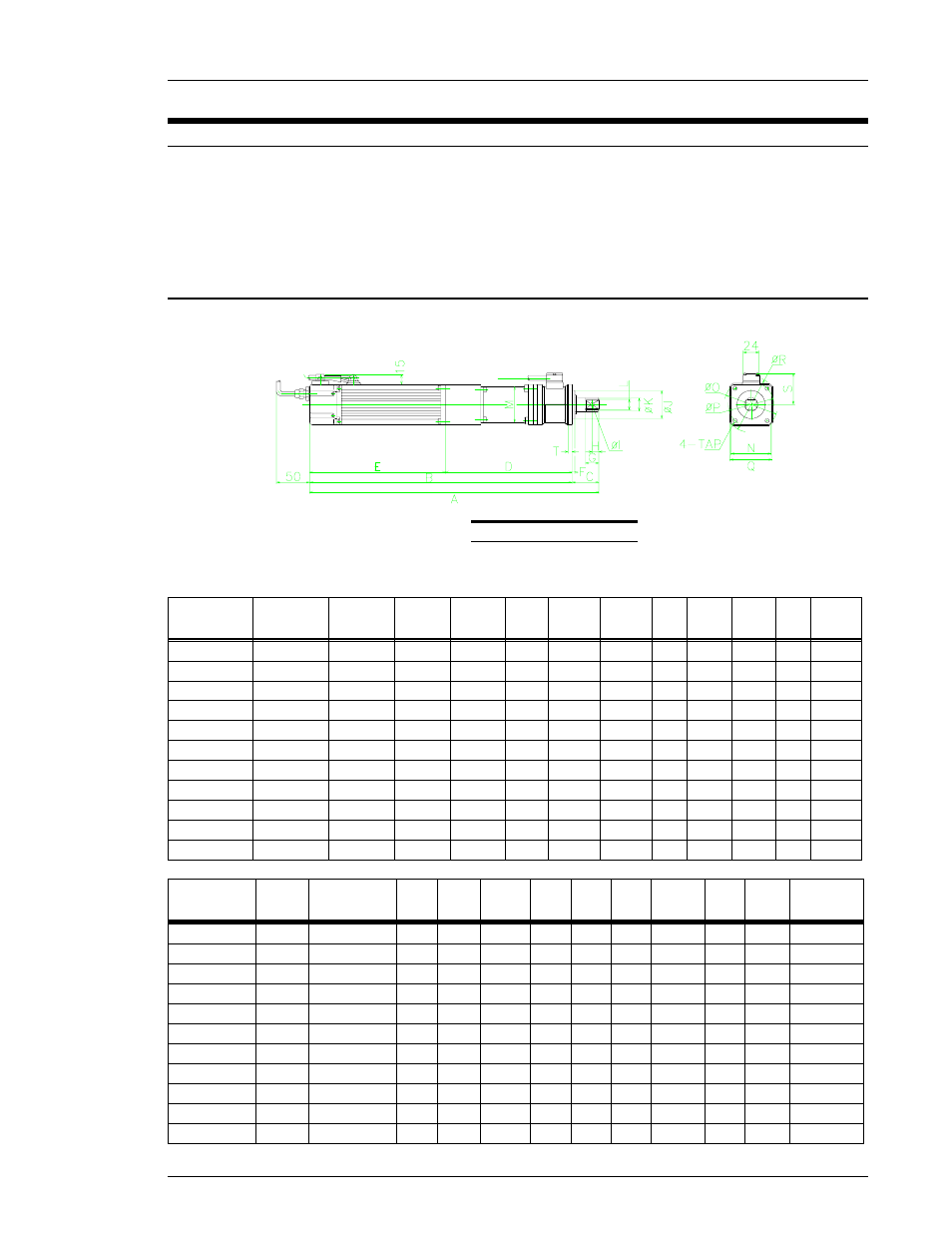

4.4.1 Straight Tool
FIG. 4-4-1 Straight Tool
Numbers shown in brackets are in inches. All others shown in Millimeters as the standard.
62 6.5 15 30 6 255 310 50 565 615 110 50 502M4-S
52 5.5 13 25 5 202.5 228 40 430.5 470.5 150 30 302M3-S
42 5.5 10 20 4 202.5 210 40 412.5 452.5 220 20 202M3-S
42 5.5 10 20 4 202.5 168 40 370.5 410.5 315 15 152M3-S
42 5.5 10 20 4 202.5 189 40 391.5 431.5 395 13 132M3-S
42 4.5 8 16 4 202.5 180 40 382.5 422.5 500 8 801M3-S
42 4.5 8 16 4 202.5 145 40 347.5 387.5 790 6 601M3-S
42 4.5 8 16 4 147.5 180 40 327.5 367.5 500 4 401M2-S
32 3.5 5 12 4 140 159 30 299 329 250 4 401M1-S
32 3.5 5 12 4 140 159 30 299 329 500 2 201M1-S
32 3.5 5 12 4 140 159 30 299 329 500 1 101M1-S1
J I H G F E D C B A SPEED
(rpm)
TORQUE
(Kg. M)
DFT-
TYPE
13 15 56 110 80 M10 90 110 80 73 25.4 (1.00) 32 502M4-S
10 12 54 102 76 M8 87 102 76 73 19.0 (.748) 25 302M3-S
6 8 47 80 62 M8 68 80 62 54 15.8 (.622) 20 202M3-S
6 8 47 84 62 M6 68 84 62 54 15.8 (.622) 20 152M3-S
5.5 6 47 80 60 M6 68 80 60 54 15.8 (.622) 20 132M3-S
5 6 43 80 60 M6 62 74 54 51 12.7 (.500) 16 801M3-S
5 6 43 80 60 M6 62 74 54 51 12.7 (.500) 16 601M3-S
3.2 6 43 80 60 M6 62 74 54 51 12.7 (.500) 16 401M2-S
3 5 36 55 40 M4 46 55 40 38 9.5 (.374) 12 401M1-S
3 5 36 55 40 M4 46 55 40 38 9.5 (.374) 12 201M1-S
1.9 5 36 55 40 M4 46 55 40 38 9.5 (.374) 12 101M1-S1
WEIGHT
(Kg)
T S R Q TAP P O N M L K DFT-
TYPE
