4.12 tool connection
{ Connect the encoder cable, the motor cable, and the transducer (sensor) cable to the
corresponding numbered tool. Ensure that the cable tag numbers match the tool tag
numbers.
{ Attach the preamp to the enclosure frame as shown in the following diagrams.
{ Ensure that the cable is tied so that there is no undue stress on it when the powerhead
moves.
CAUTION: Use cylinder cushions or shock absorbers to decelerate the powerhead return and
prevent excessive (hard stop) vibration, especially in short cycle time applications
operating at high speeds. Repeated shock (over time) could damage a tool.

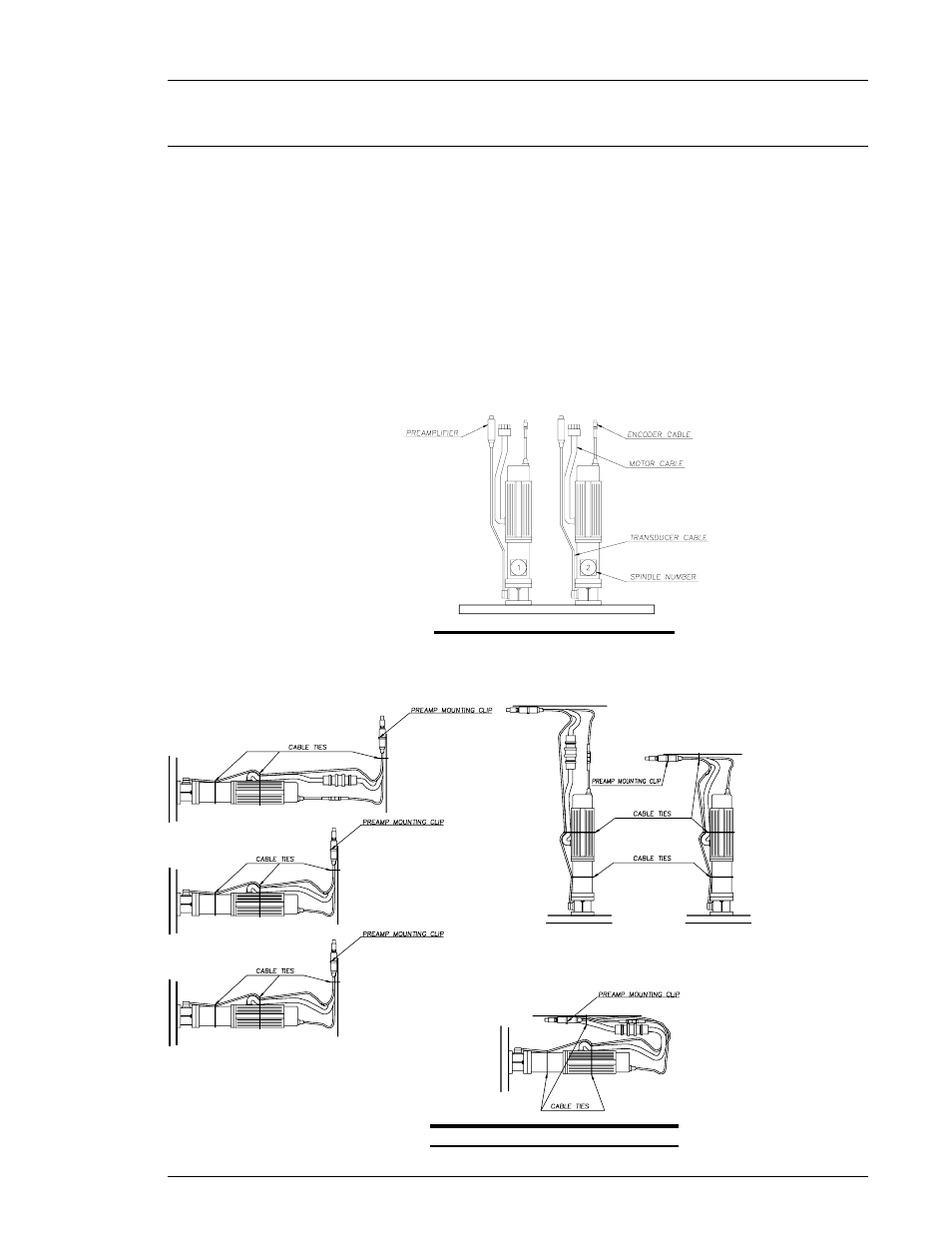

FIG. 4-12a Tool Mounting Diagram
FIG. 4-12b Tool Mounting Methods
