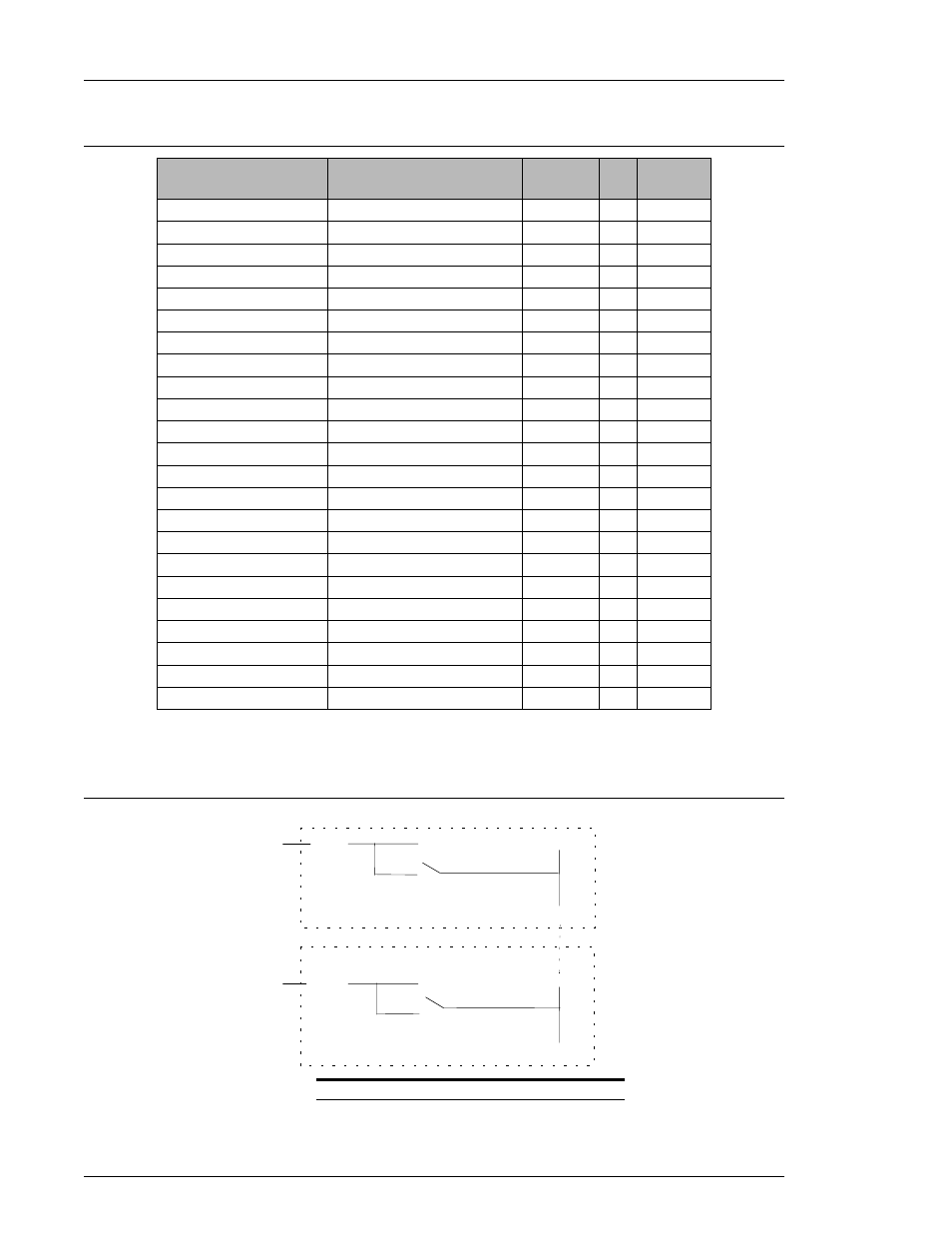

4.11.3 AFC1100 BUS Unit interconnection / pin out.
SW 3-8 NO OUT OUT DATA 0 23
SW 3-7 NO OUT OUT DATA 1 22
SW 3-6 NO OUT OUT DATA 2 21
SW 3-5 NO OUT OUT DATA 3 20
SW 3-4 NO OUT OUT DATA 4 19
SW 3-3 NO OUT OUT DATA 5 18
SW 3-2 NO OUT OUT DATA 6 17
SW 3-1 NO OUT OUT DATA 7 16
SW 2-7 OUT COMMON 15
SW 2-6 NO IN WORK SELECT 2 14
SW 2-5 NO IN WORK SELECT 1 13
SW 2-4 NO IN WORK SELECT 0 12
SW 2-3 NC IN BANK SELECT 2 11
SW 2-2 NO IN BANK SELECT 1 10
SW 2-1 NO IN SELF CHECK DISABLE 9
SW 1-8 IN COMMON 8
SW 1-7 NO IN/OUT SYNC 7
SW 1-6 NO IN SYNC COM 6
SW 1-5 NO IN BYPASS 5
SW 1-4 NO IN START 4
SW 1-3 NO IN REVERSE 3
SW 1-2 NO IN RESET 2
SW 1-1 NC IN STOP 1
SWITCH NC/
NO
IN/OUT SIGNAL CONNECTOR PIN/
TERMINAL No.
{ Refer to section 4.7 for PLC I/O descriptions
4.11.4 AFC1100 BUS Unit internal circuit.
C N I N
C N O U T
T E I O
X 23 circuits
C N I O AFC1100
AXIO
C N I N
C N O U T
T E I O
X 23 circuits
C N I O AFC1100
AXIO
FIG. 4-11-4 AFC1100 Bus unit internal circuit
Chapter 4: System Setup and Wiring (Rev. 8/98)
Page 4-26
