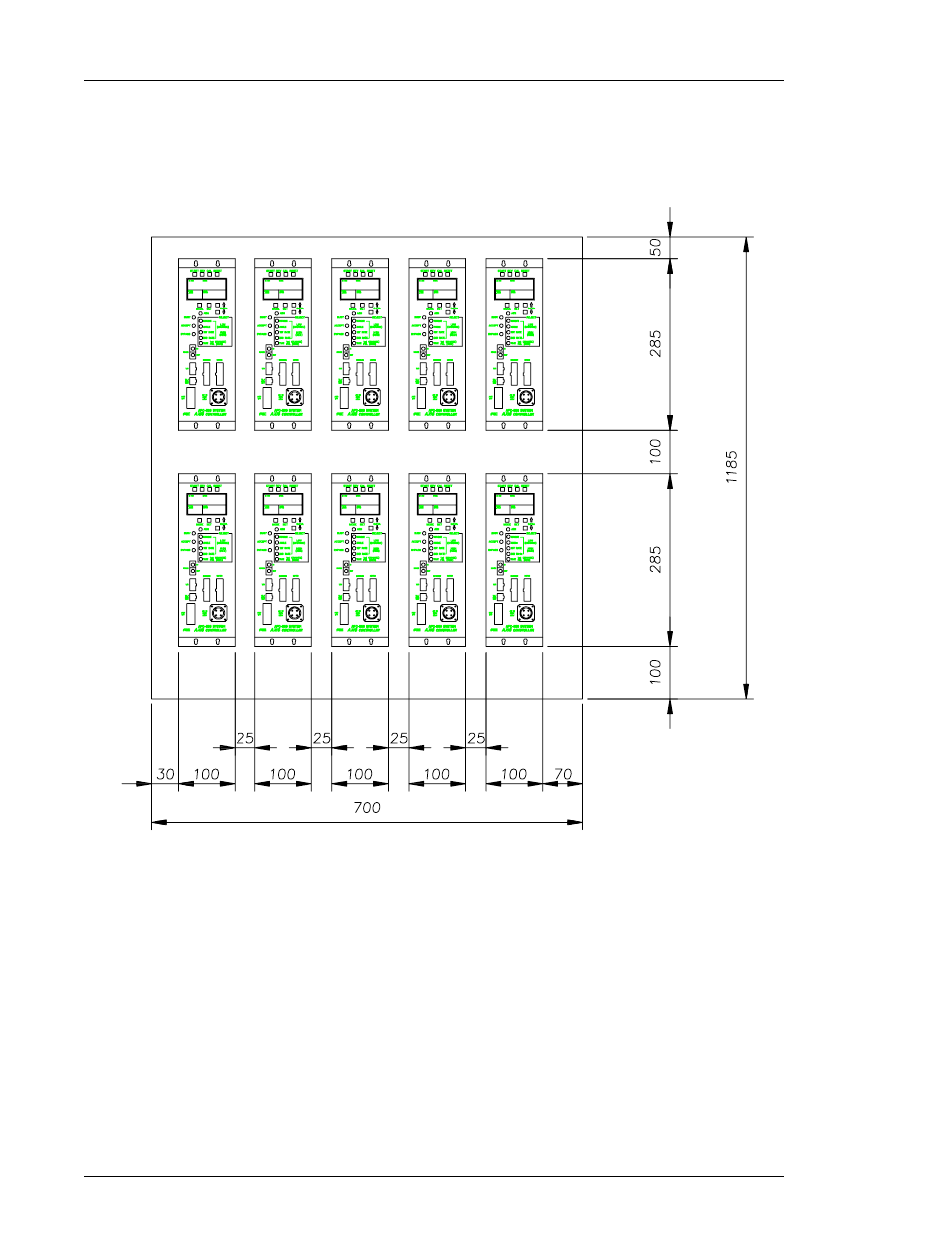

Figure 4-3 provides a reference for the layout of the AFC1100 System components. The
Units may be mounted in any desired configuration as long as the minimum spacing
requirements not neglected. When installing duct above and below the Units, ensure that
adequate space is provided to allow for removal and installation of the Units without removal
of the mounting screws. The components of the AFC1100 System are designed with slotted
mounting holes for easy mounting to the back panel of the enclosure using standard 8-32
screws.
Chapter 4: System Setup and Wiring (Rev. 8/98)
Page 4-4
