CLASS 2000 METER
15 62-0389-05
4.5 Installation Overview

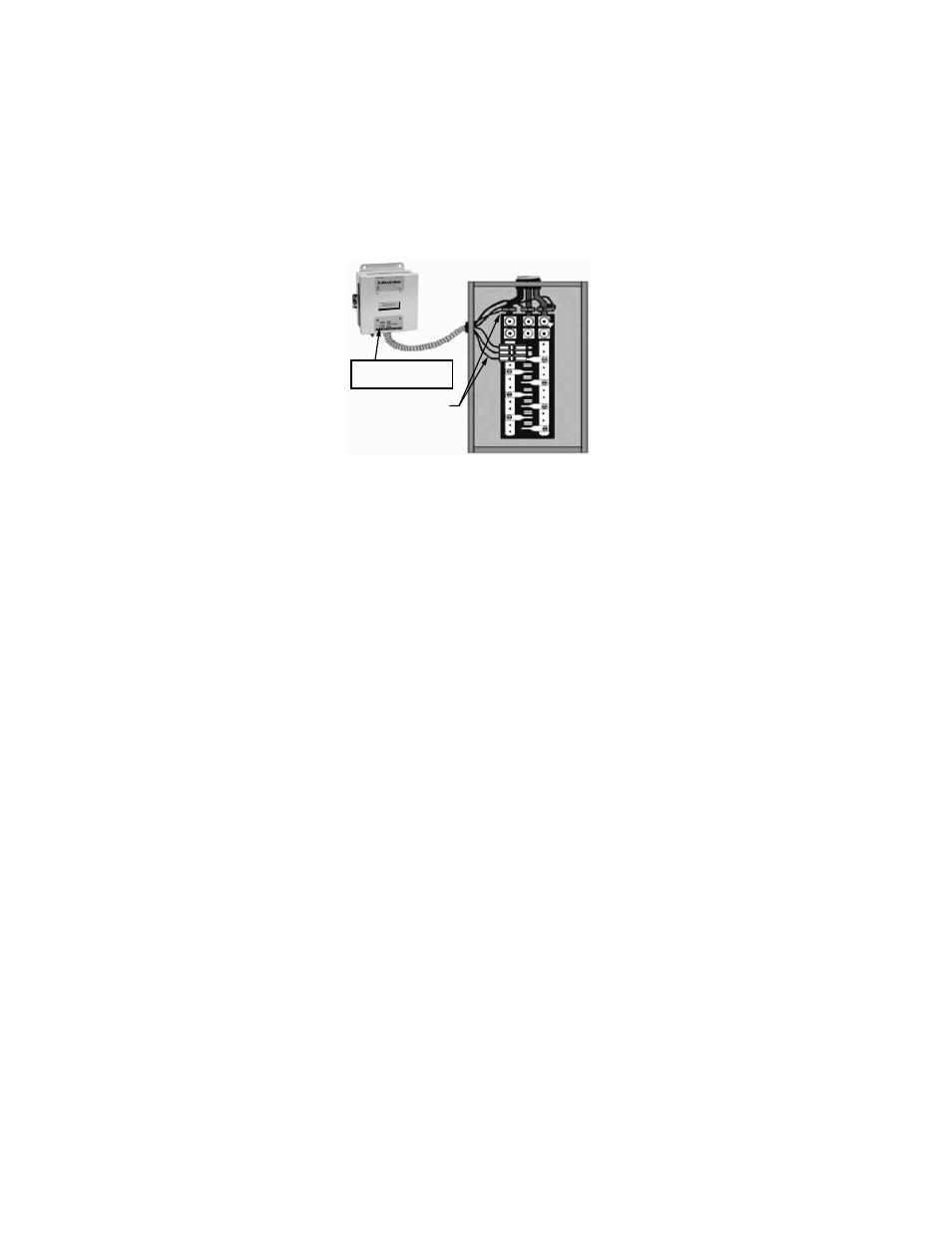

Fig. 9. Install Overview.
4.6 Check Polarity of the Current Sensor.
Verify all phases are loaded by at least 1% of meter rated load, check the polarity of
the sensors.
Test the sensors wires one pair at a time, verifying polarity, phase rotation and
correspondence to line input.
The A/C line voltage power may be left on to the meter as long as the protective clear
shield is installed to cover the line side meter power supply terminals for safety. Extra
care must be taken when working around live circuits.
M34224
METER TERMINAL
BLOCK CONNECTIONS
CURRENT SENSOR AND
VOLTAGE CONNECTIONS
