Portable Emissions Analyzer Operation
Teledyne Analytical Instruments 25
•

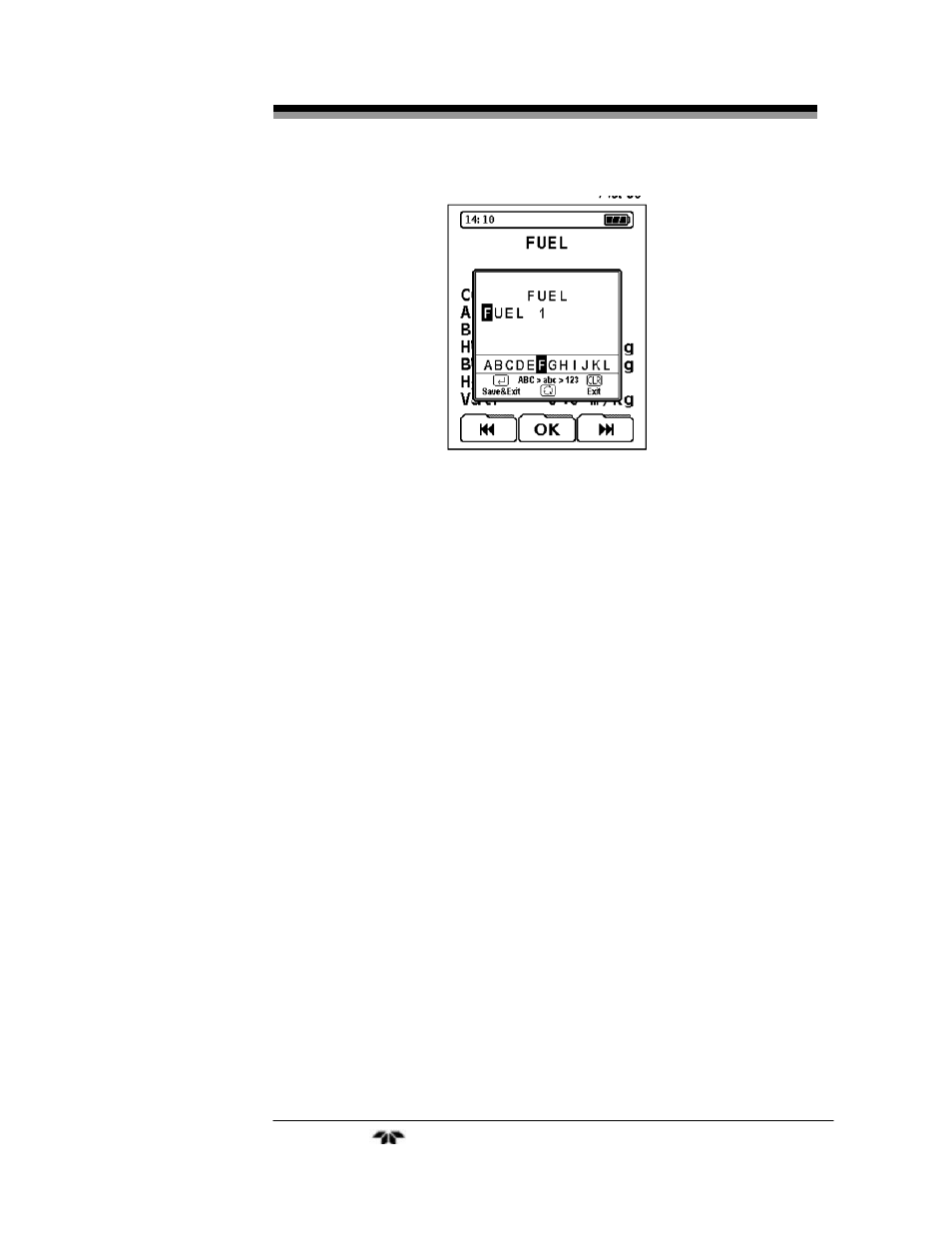

Use the arrow keys to scroll to the appropriate character and
then press OK to accept the letter. The character will appear
on screen and the position marker incremented to the next
letter position. If you make a mistake, continue pressing the
OK button until the cursor returns to the letter in error. Then
reselect the appropriate character using the arrow keys and
press OK once again to accept the new character.
•
Use the cycle button to toggle between all capital letters, lower
case and numerical input.
•
When the fuel name has been entered, save the input by
pressing ENTER or cancel the input by pressing CLEAR.
Once the fuel name has been input and accepted, the fuel properties
can be entered in the same fashion. Use the arrow keys to scroll the
highlighted line to the parameter you want to input and press OK.
Repeat the above procedures for editing each parameter required to
specify the fuel. The parameters include:
CO
2max
A2
B
HW (heating value without condensation)
BW (heating value with condensation)
H
2
O (water content)
Vatr (quantity of fuel gas, dry)
