Total Hydrocarbon Analyzer
Operation
Teledyne
Analytical
Instruments
57
4.6.15 Fuel Display
This screen displays the fuel type this instrument is set up for:
40%H2/60%N2, or 100% H2, or 100%N2. It is an information only
screen and has no bearing on the analyzer performance.
4.6.16 Valve Selections
This 4020 analyzer has the option of 3 input streams. The rear panel
of the analyzer has 3 gas inputs labeled: “SAMPLE", "SPAN" and
"ZERO".
The particular gas stream sent to the analyzer can be determined in
one of three ways:
1. Valve selection disabled. This option has the “SAMPLE”
valve always open, typically to deliver sample gas to the
analyzer.
2. User Select . The user can select which port opens to the
analyzer.
3. By Function: In this option, a specific gas port opens to the
analyzer depending on the current mode of the analyzer. For
instance, when performing a zero calibration, the “ZERO”
port would be open while “SAMPLE” and “SPAN” ports
would be closed.

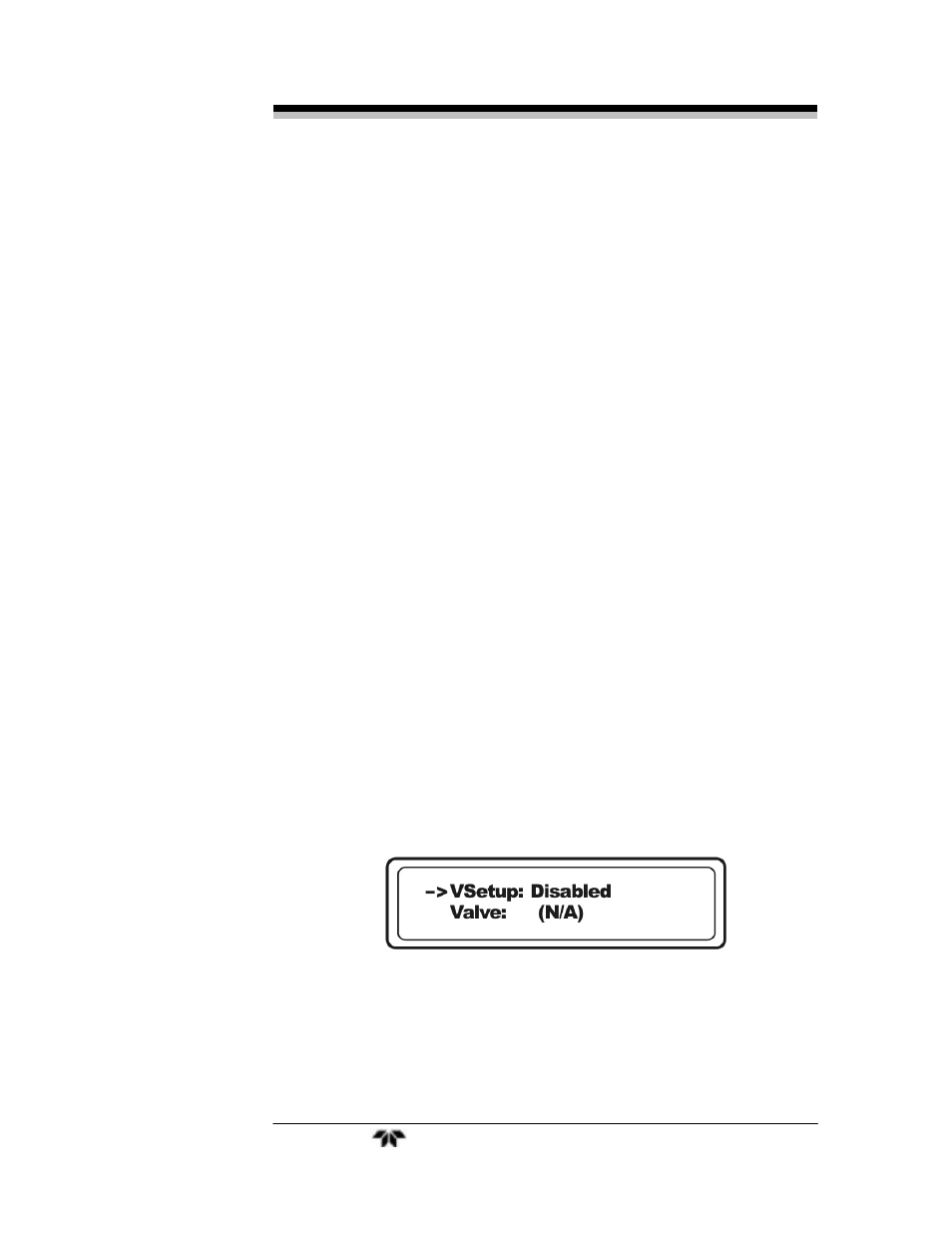

To enable/disable or select a specific valve selection mode:
<▲▼>
From the MAIN MENU, scroll to the VALVE
SELECTIONS function using the UP/DOWN keys.
Press
screen.
<▲▼>
Use the <▲▼> keys to toggle between the Disabled,
User Select and Default (by Function) modes.
<Enter>
Press
on screen.
