2 Operational Theory Model 2000A-EU
Teledyne Analytical Instruments
The Preamplifier board is mounted on top of the Motherboard as shown in
the figure (in chapter 5). These boards are accessible after removing the
back panel. Figure 2-2 is a block diagram of the Analyzer electronics.

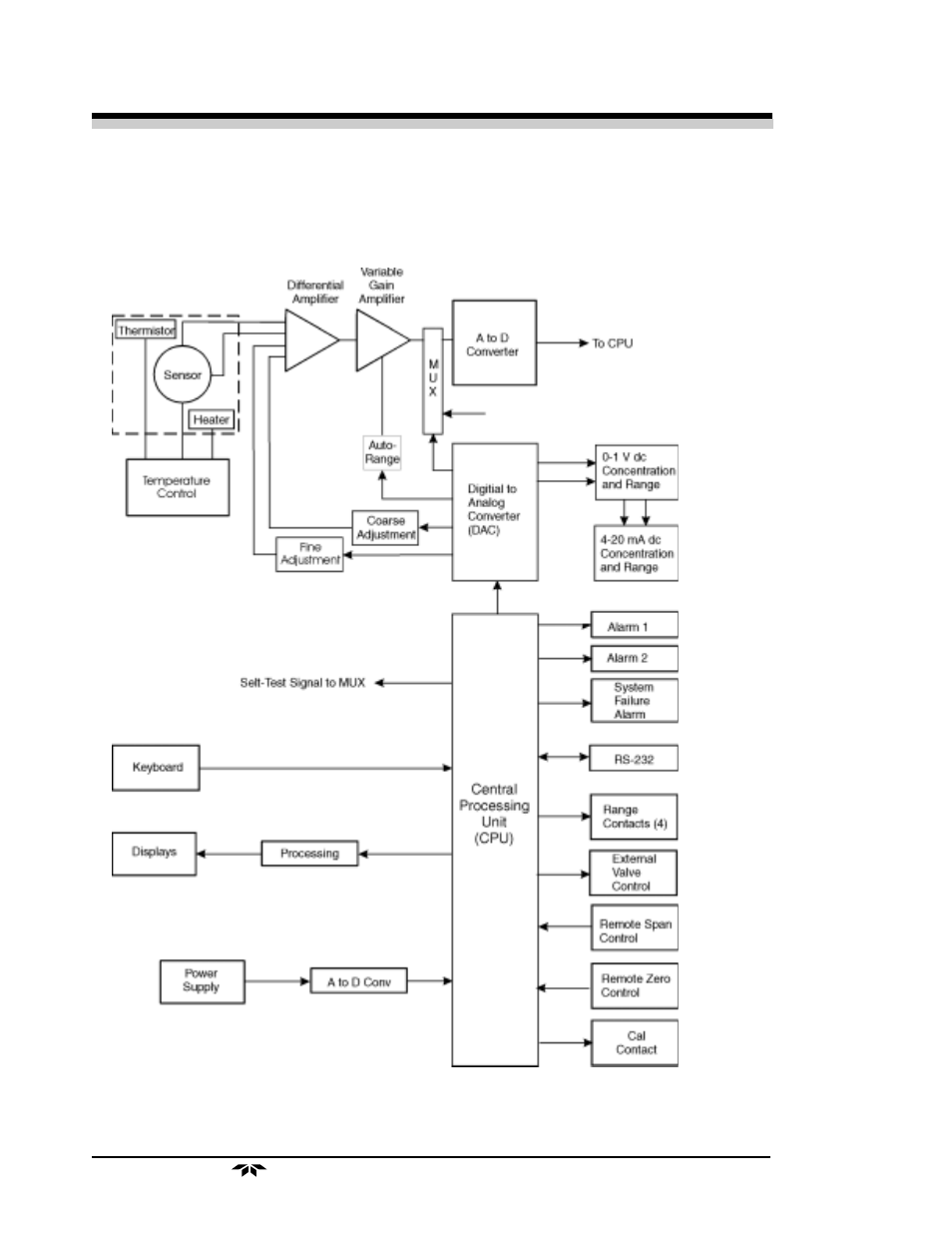

Figure 2-2: Block Diagram of the Model 2000 Electronics
