3-7
SECTION 3
EDR-IOM-2014-0318
OPERATION
!
WARNING
All information in this manual is for
reference and guidance purposes,
and does not substitute for required
professional training, conduct,
and strict adherence to applicable
jurisdictional/professional codes and
regulations.
SOLA Hydronic Controller for Endura
The screen shots and information in this section will help you navigate through
display parameters that would be used for initial startup.

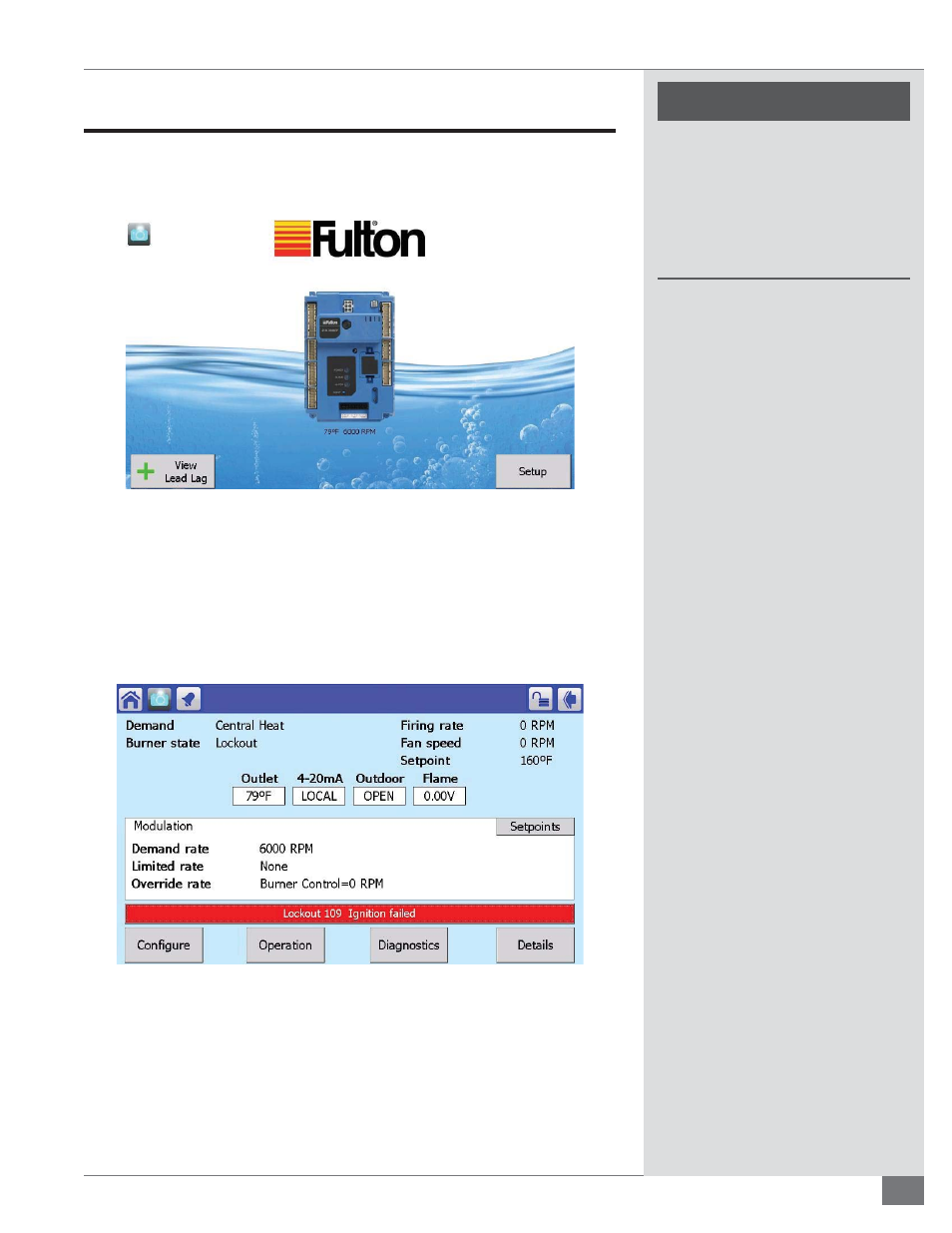

 Status Summary Screen
From this screen you will be able to access any of the parameters (Figure 12) by
tapping on the controller in Figure 11. You can see if the unit Demand is on and
the status of the boiler from Burner State. The fi ring rate will show you the RPM
fi ring rate output. Also you can see the setpoint desired.
FIGURE 12 - STATUS SUMMARY SCREEN
 Central Heat Operation Screen
1. Access this screen (Figure 13) by pressing the Operation button from the
Status Summary Screen. From the Central Heat Operation screen you will
be able to change the boilers Setpoint by pressing the yellow box next
to Normal. If the fi ring rate needs to be changed from auto to manual
FIGURE 11 - THE SOLA CONTROLLER HOME SCREEN
