Function 7: PLAY (Custom Program)
Playing stored custom program
1. Turn the Function knob to PLAY. The dis-
play briefly shows F7, then 100 (for a scale-
factor setting of 100%).
2. Press (START) to start playing the
default custom program.
After the program has played for several sec-
onds, press and hold
(STOP).
If you are using a voltage sensor, be sure to stop the
program before it exceeds 10 V.

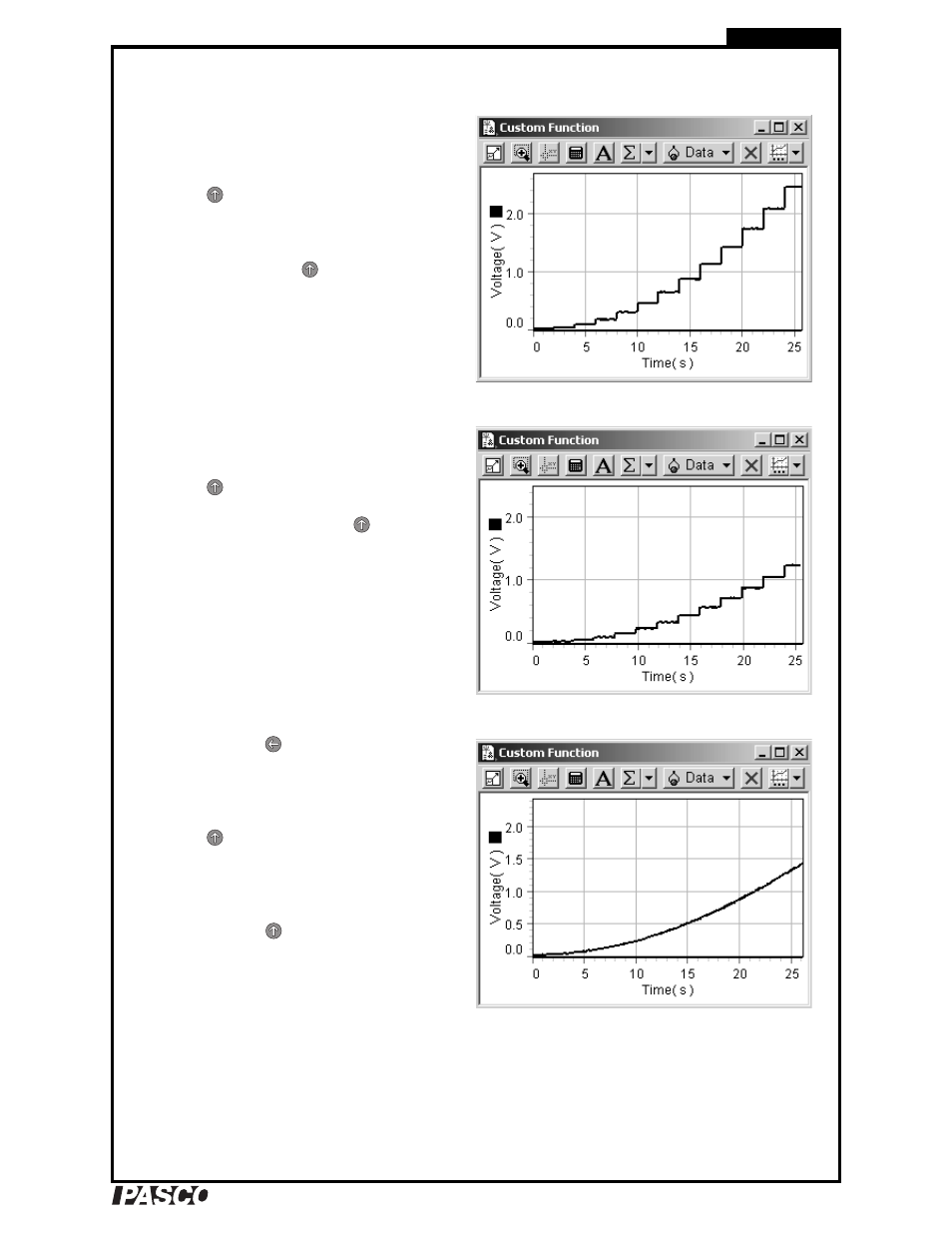

Scale Factor of 50%
3. Turn the Coarse knob to change the Scale
Factor to 50%.
Press (START) to play the program
again; each voltage point is now half of what
it was before. Press and hold
(STOP).
Graph type set to 0
4. Press and hold (SET); the display shows
1, the graph-type setting; while holding the
button, turn the Coarse knob to change the
graph type setting to 0.
Press (START) to play the function; the
voltage ramps smoothly through the program
rather than jumping from one level to the
next.
Press and hold (STOP).
