Reference 51
CD Audio Connectors

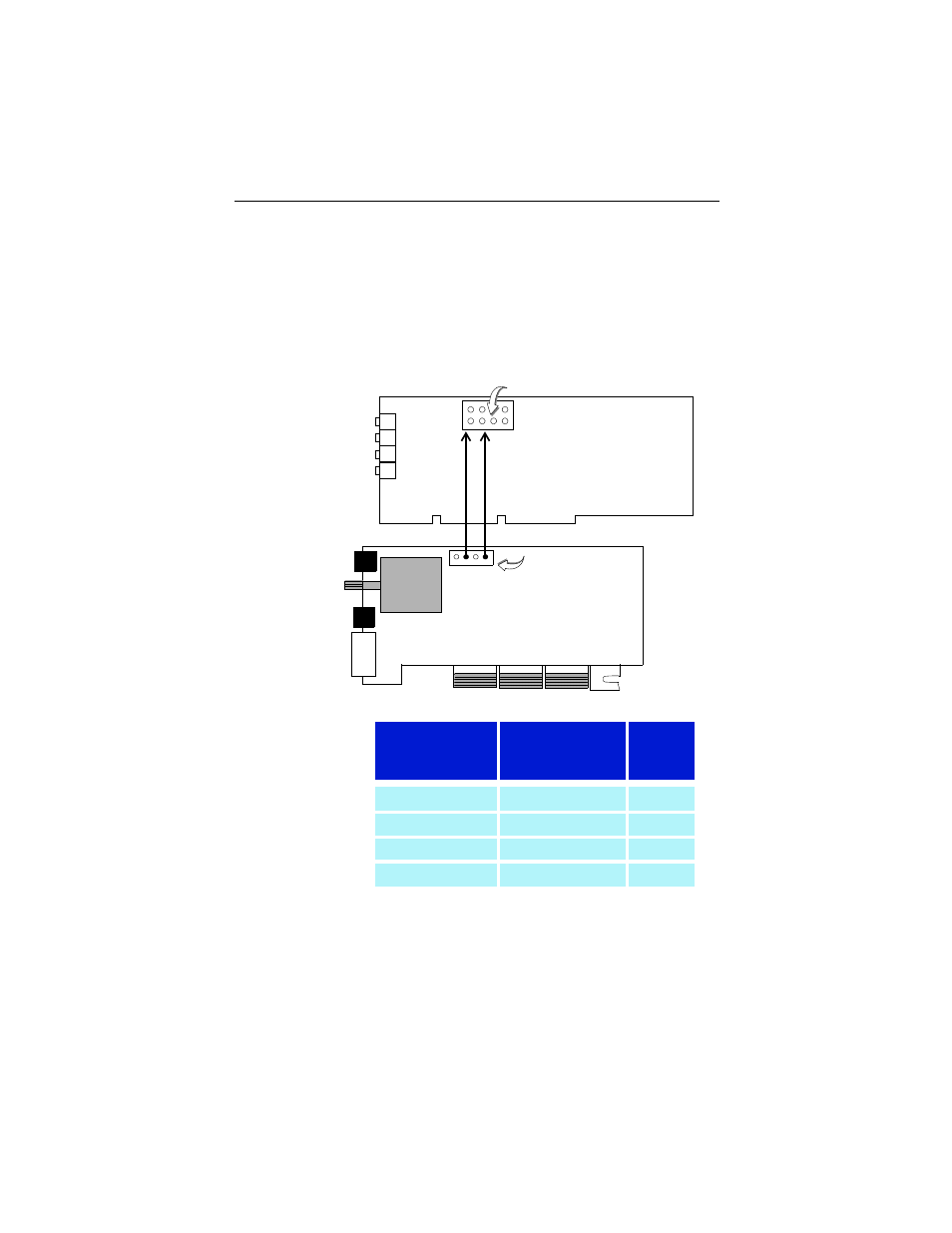

The following illustration shows the optional, internal CD audio
connectors on your ALL-IN-WONDER 9700 Series card.
SOUND
CARD
CD AUDIO IN connectors
(see your sound card
manual)
ALL-IN-
WONDER 9700
Series Card
Pin Signal
J1 Pin 1 - GND CD OUT
J1 Pin 2 - LEFT OUT CD OUT
J1 Pin 3 - GND CD OUT
J1 Pin 4 - RIGHT OUT CD OUT
This table lists
the pin
assignments for
the CD audio
connectors on
your card.
The CD connectors
are provided for
internal audio
connection. The
internal audio
cabling (not
included) must
match your sound
card.
CD OUT
connectors, pins 2
and 4 (see the
following table)
ALL-IN-WONDER
CD OUT
ALL-IN WONDER 9700 S ERIES C ARD
