Using Your ALL-IN-WONDER
Using SCART connectors for European televisions
The SCART connector supports only the Composite video
format, which is the most common type. The above illustration
shows how to connect to an SCART connector using a
Composite cable.
If your television supports S-Video input, you should use an
S-Video cable (available in most consumer electronics stores) to
view your PC on a television. An S-Video connection provides
a higher quality display than Composite video.
IMPORTANT INFORMATION
for European Customers
Some PC monitors in Europe cannot be used simultaneously with
television display. When you enable television display in Europe,
the refresh rate for the monitor and television is set to 50Hz. Some
monitors may not support this refresh rate and could be damaged.
• Please check the documentation supplied with your monitor to
see if your monitor supports a refresh rate of 50Hz.
If your monitor does not support 50 Hz (or if you are not
sure), then turn off your monitor before turning on your
computer when using your television as a display.
For information on disabling television display, see
disable the television display
Some televisions in Europe may use an SCART connection. If you
use SCART, please read
Using SCART connectors for European
on page 28 before attempting to connect your PC to
your television.

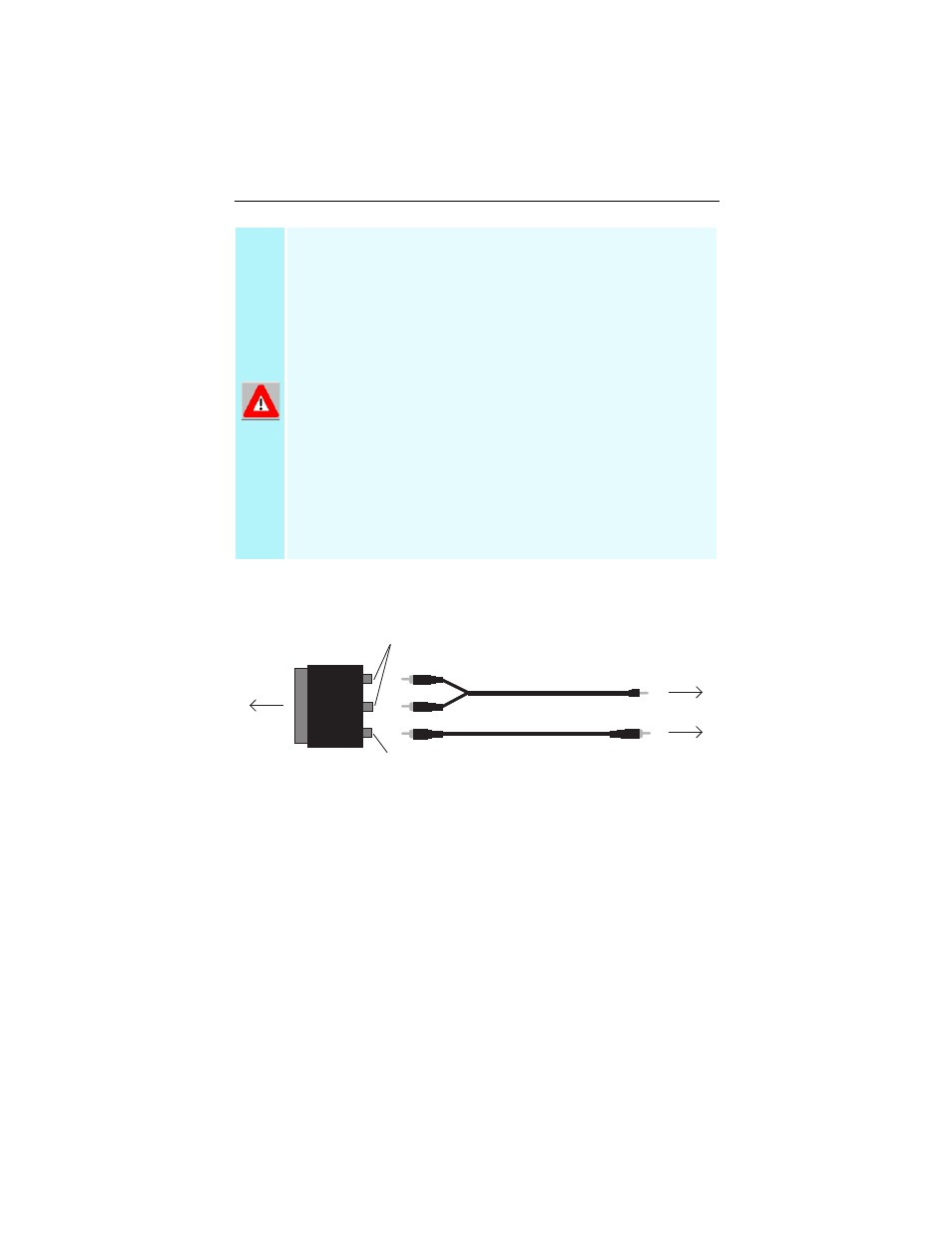

Using an SCART connector with a Composite cable
Connect to
TV or VCR
Audio In
(
Right = Red)
(Left = White)
SCART
Connector
Video In (Yellow)
Cable 1
Cable 2
Connect to
graphics card
Connect to
audio source
