38 Using Your ALL-IN-WONDER
8 Turn on your component input device, and set it to YPbPr
input.
See your HDTV or component input device manual for
further instructions.
9 Turn on your PC.
Your TV will not display anything until Windows starts.
This may take several minutes.

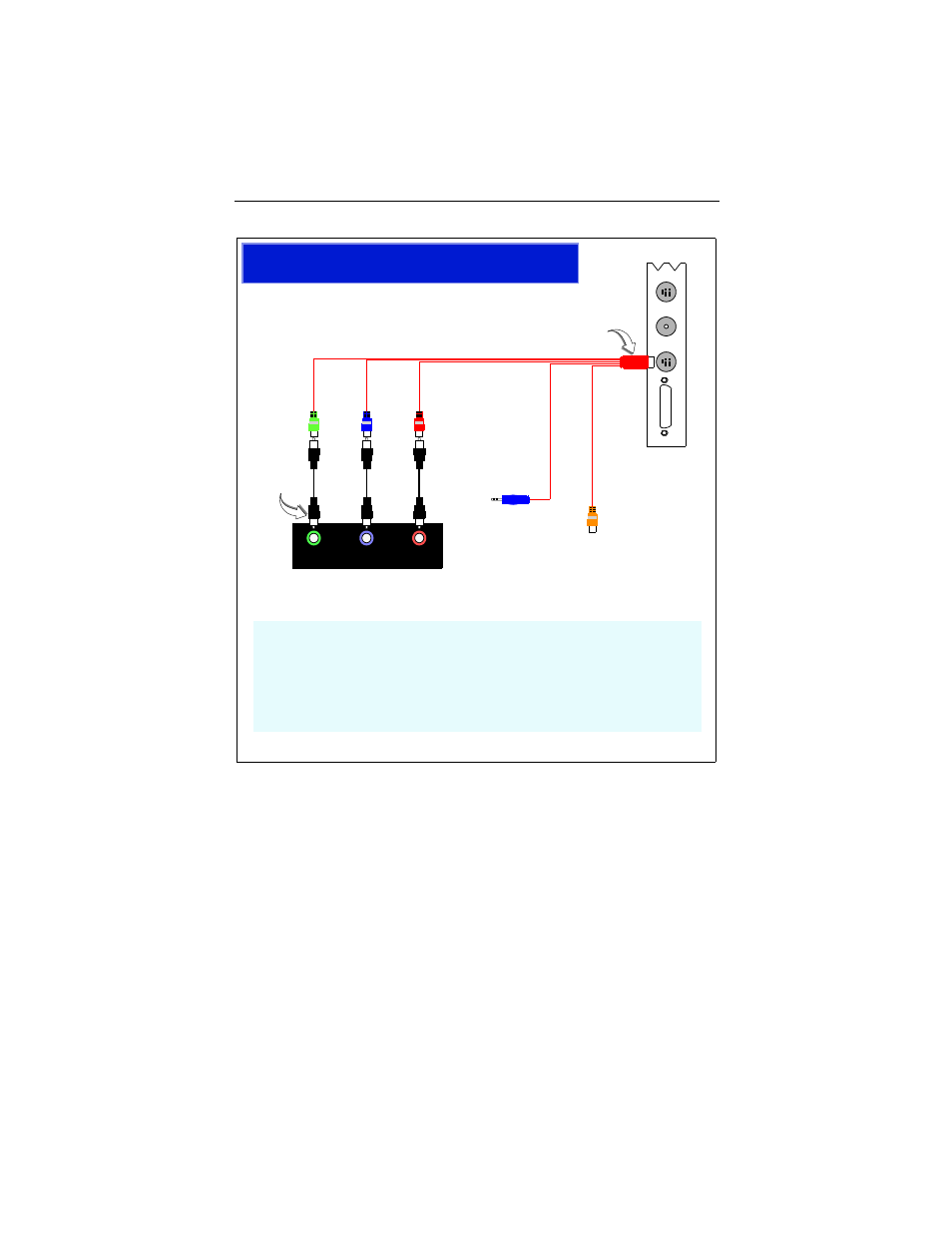

A/V IN
CATV
A/V OUT
ALL-IN-WONDER
9700 Series Card
Pr Pb Y
HDTV Video Inputs
ATI
component video
adapter
Cables
with RCA
plugs,
available
from a
consumer
electronics
dealer
CRT / Analog Flat Panel Monitor
Input and output cable lengths should not exceed 50 feet (15m)
• Y = Green
• Pb = Blue
• Pr = Red
For complete cabling instructions, see page 22 .
S/PDIF
connector
To sound
card LINE IN
