Installing the Hardware and Software 21
To display your PC output on TV
and record your PC output on videotape

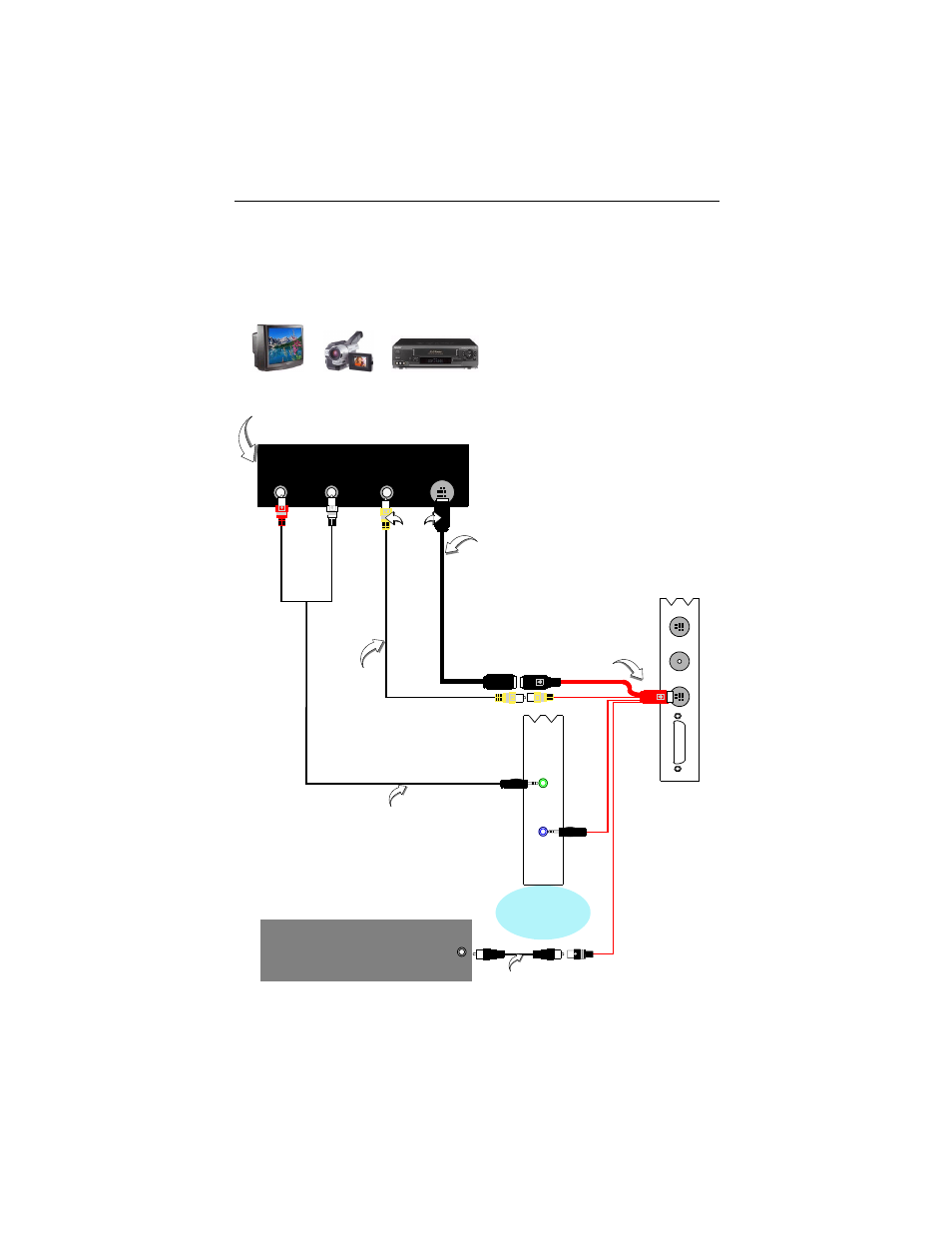

Use the ATI output adapter to connect a TV, camcorder, or VCR
to your ALL-IN-WONDER 9700 Series card, as shown.
LINE
IN
must be
connected
ALL-IN-
WONDER
9700 Series
Card
A/V IN
CATV
A/V OUT
S-VIDEO
IN
COMP.
VIDEO
IN
L. AUDIO
IN
R. AUDIO
IN
The audio and video input connectors on your TV, camcorder, or VCR will
be similar to these. Use
COMPOSITE
VIDEO
IN
or
S
-
VIDEO
IN
. S-Video will
provide better results.
ATI
output
adapter
Cable with
RCA plug
at each
end,
available
separately
from a
consumer
electronics
dealer.
Cable with S-Video plug
at each end.
LINE IN
SOUND
CARD
OR
To record audio on your stereo VCR or to hear
audio through your TV speakers, use a stereo
cable with two RCA plugs at one end, and a mini
stereo phone plug at the other, available
separately from a consumer electronics dealer.
LINE OUT
Dolby Digital AC-3 Amplifier
S/PDIF connection
S
/P
D
IF
Cable with RCA plugs, available from
a consumer electronics dealer
To use your TV as a display, you
must enable TV Out. See
